Combination Meter and Multi Display: Notes

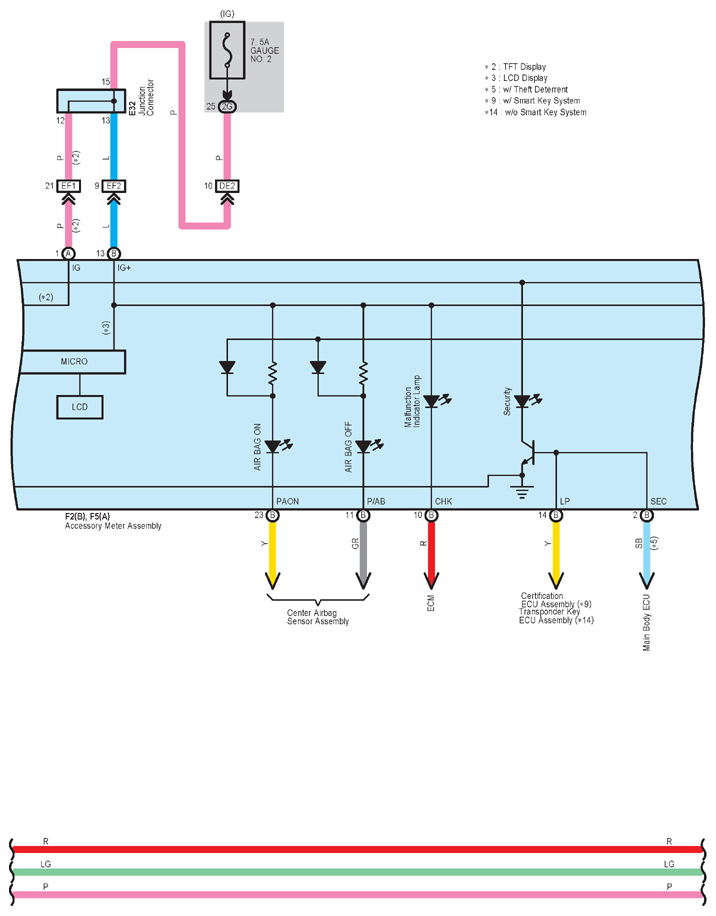

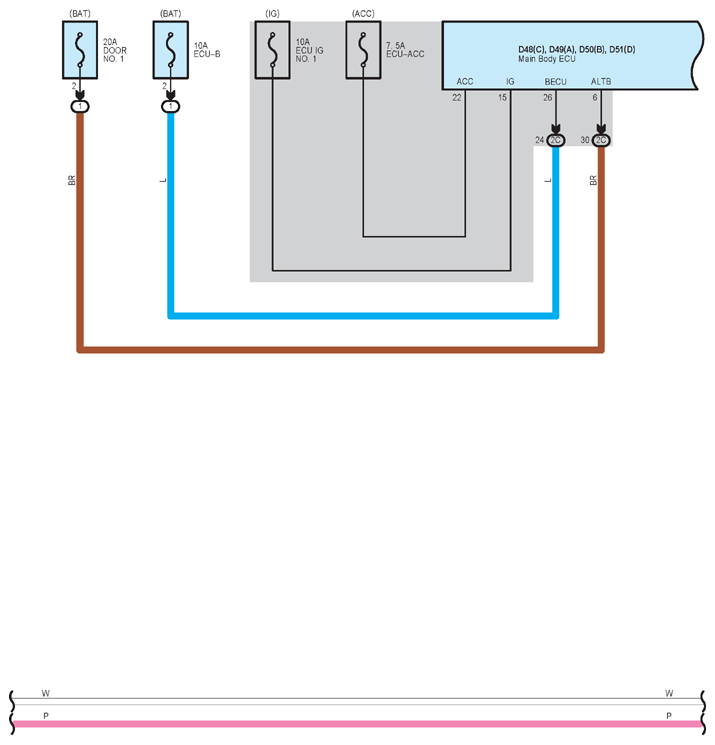

Fig 1: Combination Meter And Multi Display System Wiring Diagram (1 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

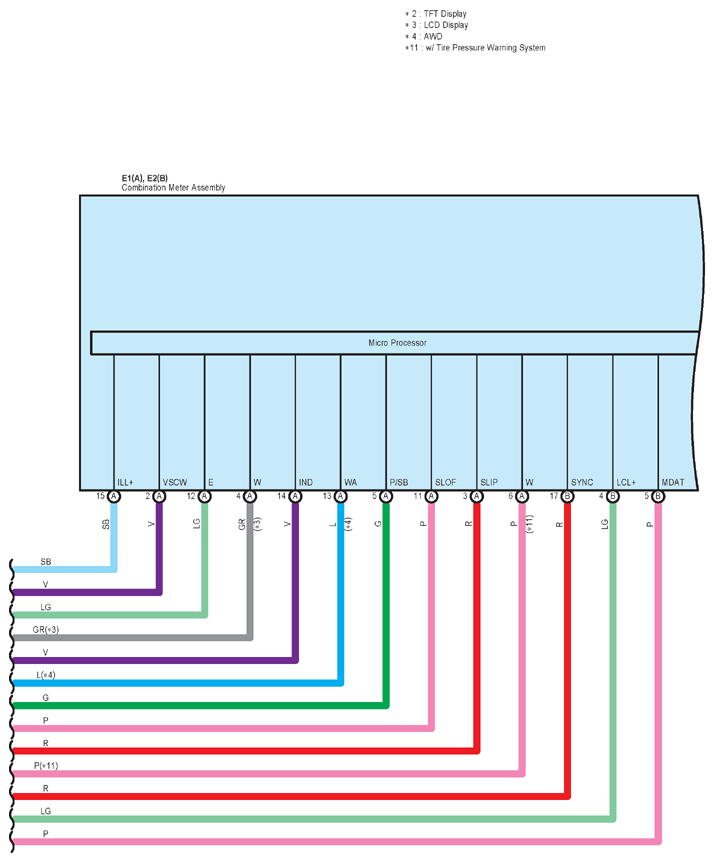

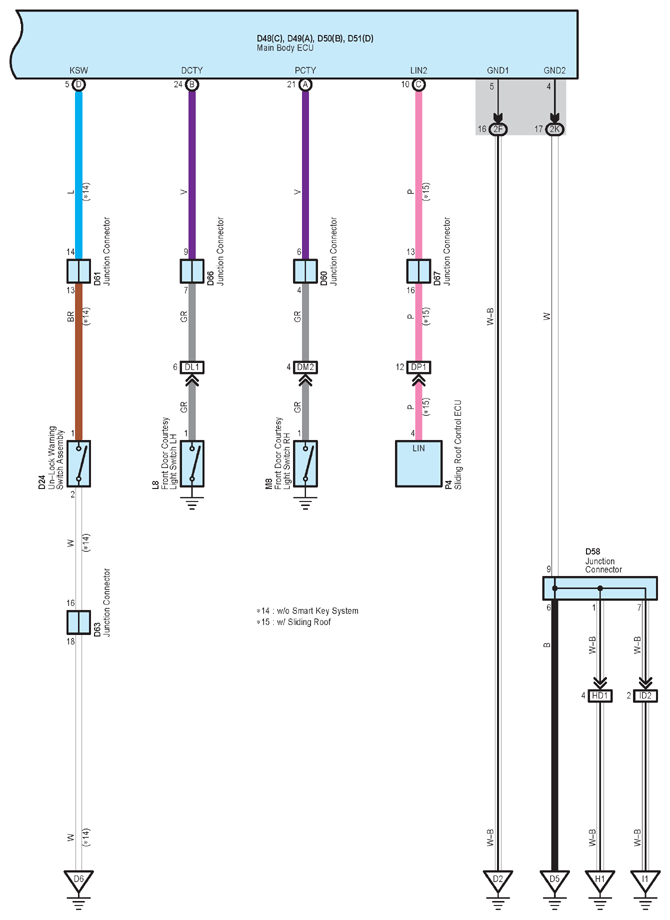

Fig 2: Combination Meter And Multi Display System Wiring Diagram (2 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

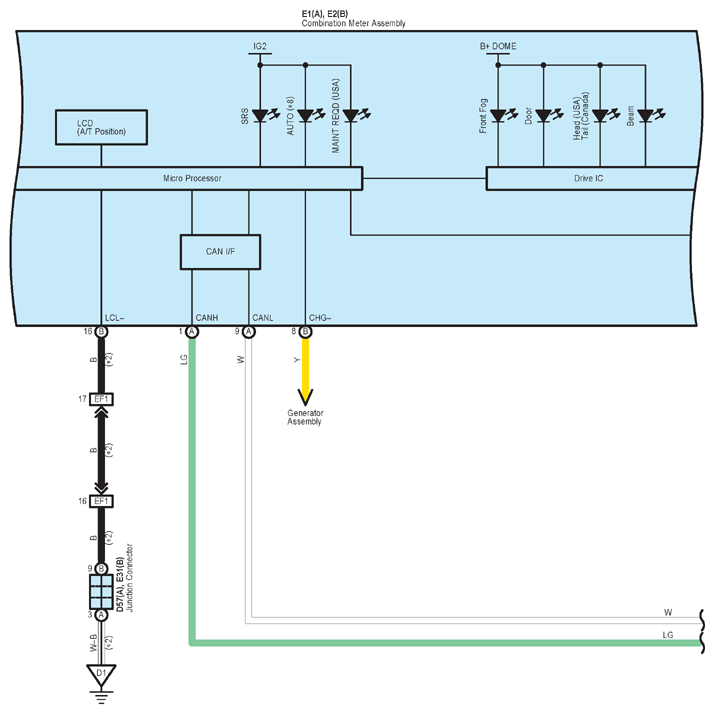

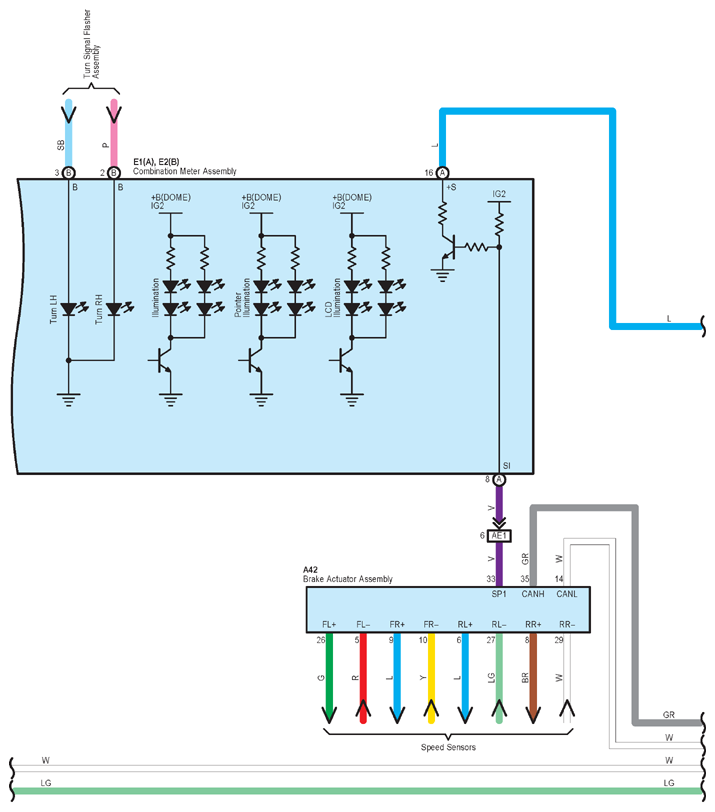

Fig 3: Combination Meter And Multi Display System Wiring Diagram (3 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

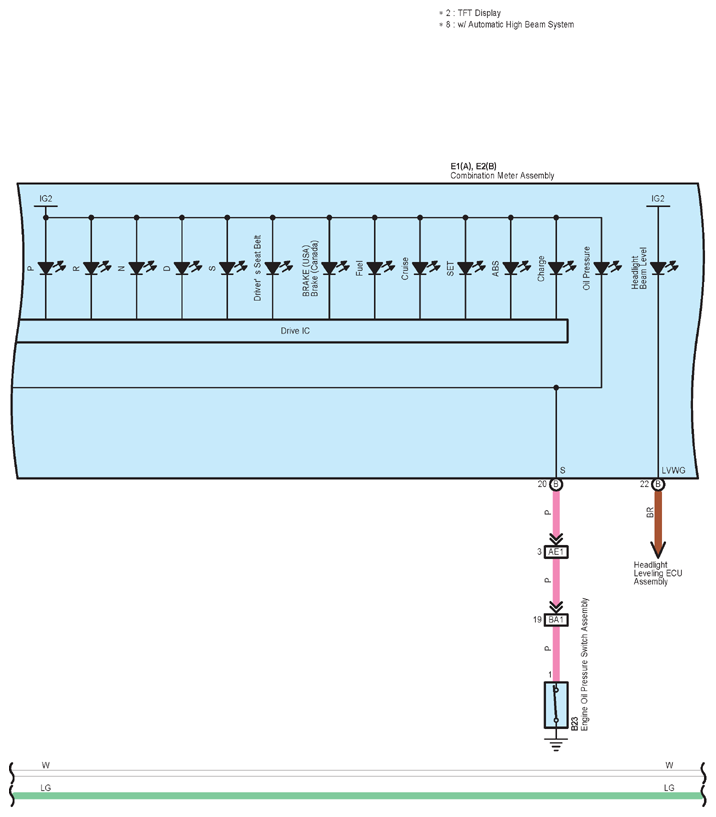

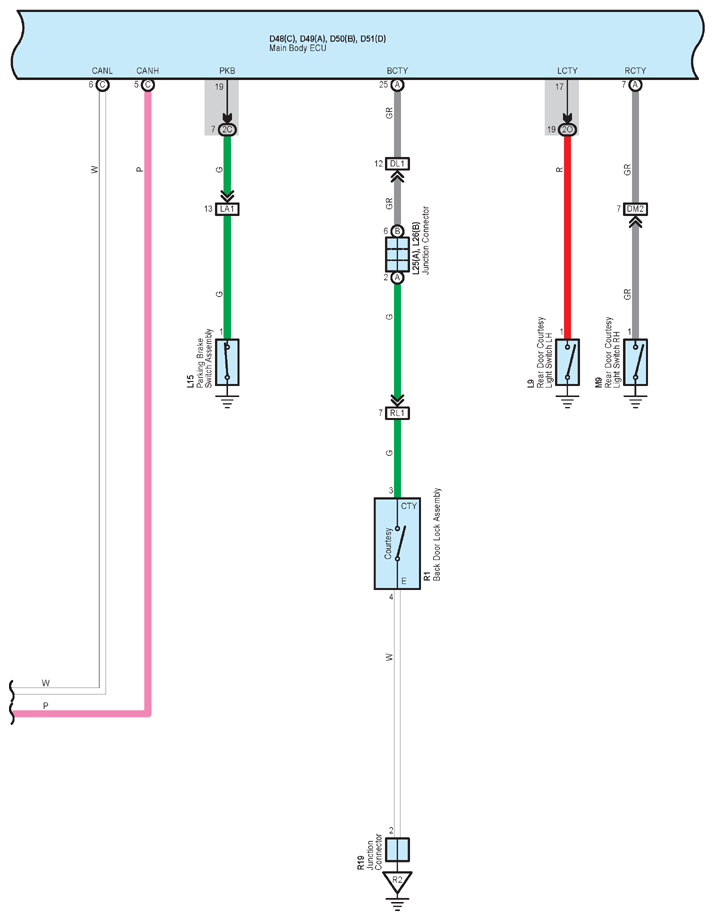

Fig 4: Combination Meter And Multi Display System Wiring Diagram (4 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

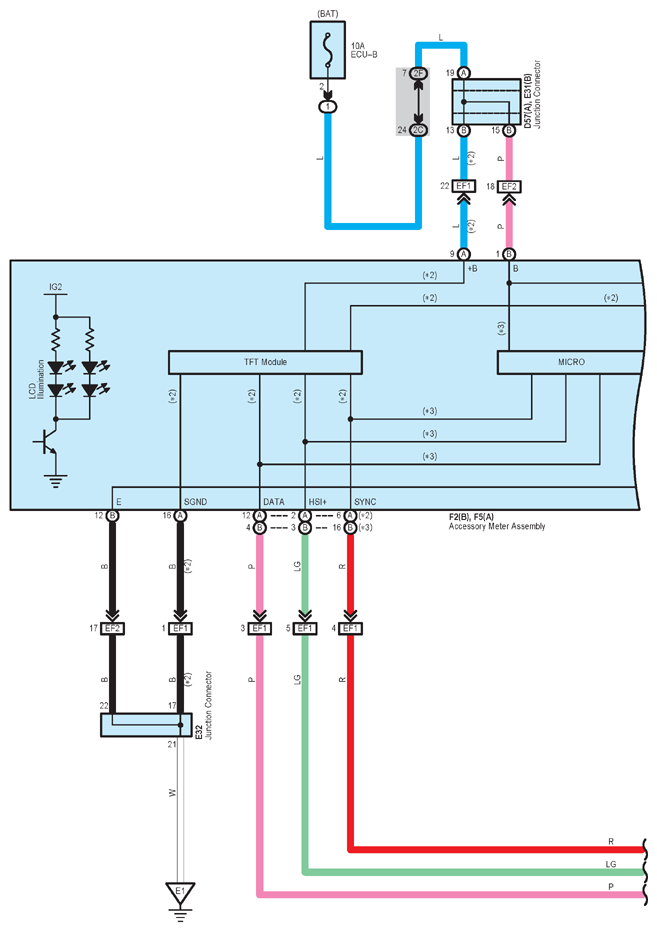

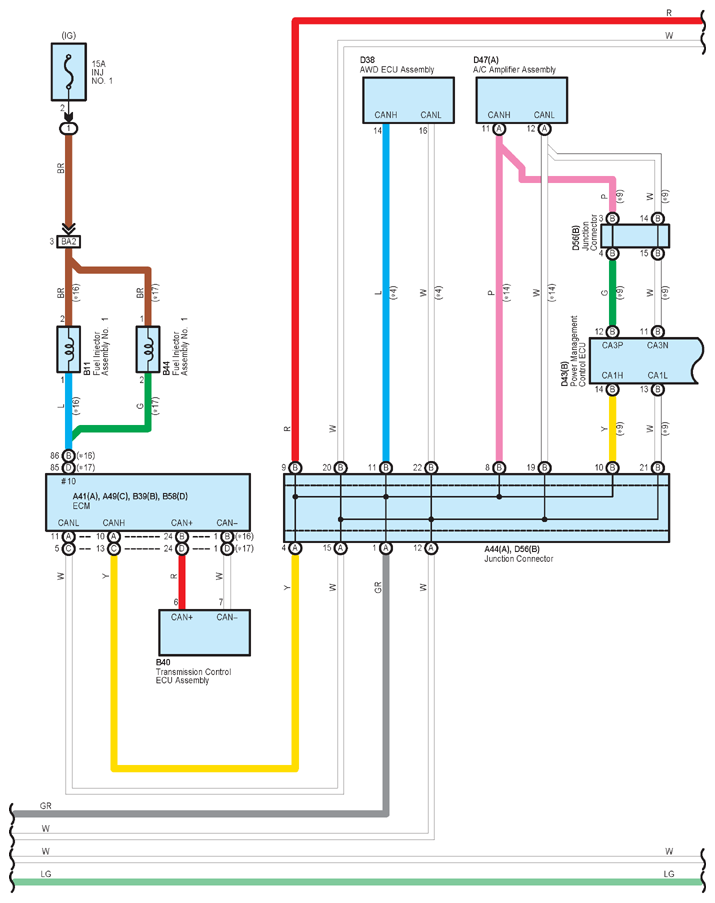

Fig 5: Combination Meter And Multi Display System Wiring Diagram (5 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

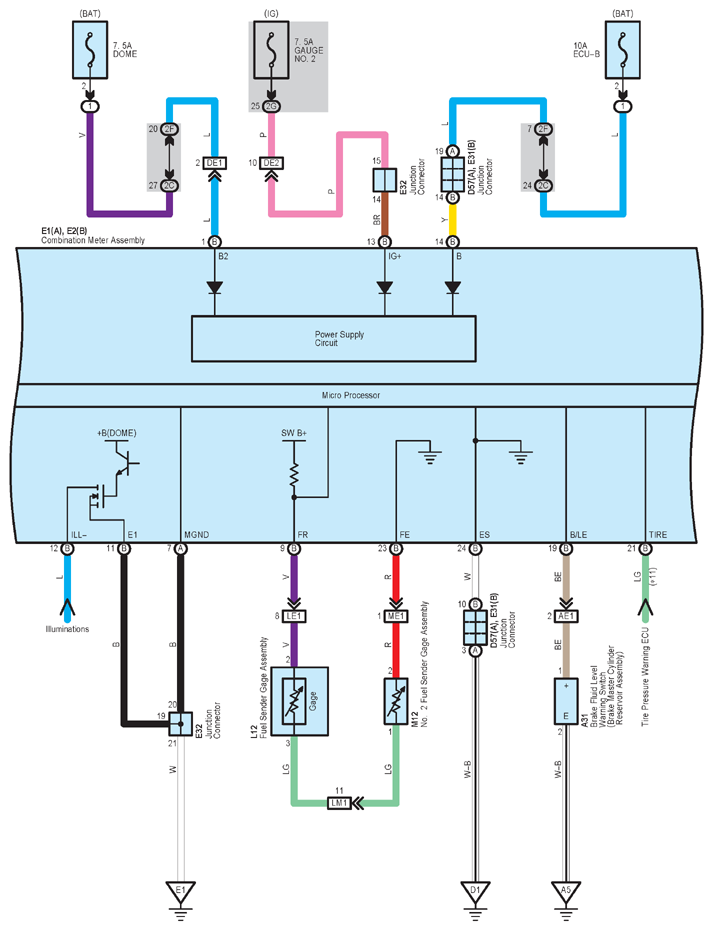

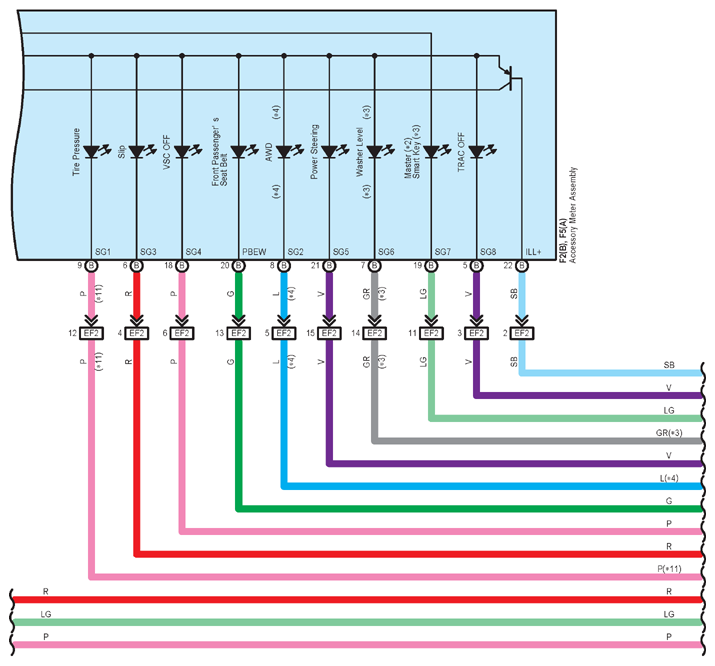

Fig 6: Combination Meter And Multi Display System Wiring Diagram (6 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

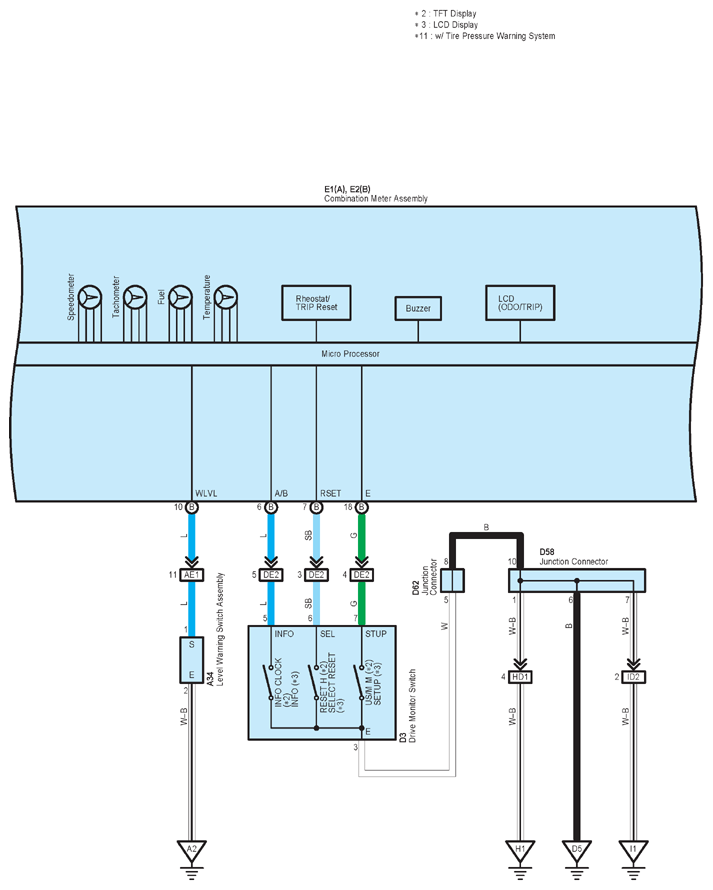

Fig 7: Combination Meter And Multi Display System Wiring Diagram (7 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

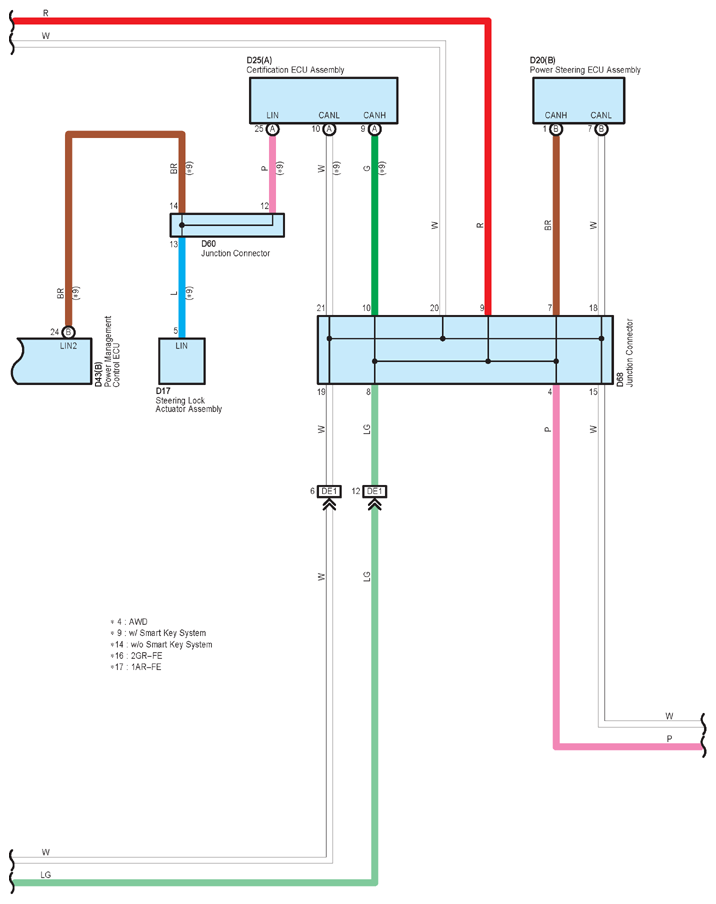

Fig 8: Combination Meter And Multi Display System Wiring Diagram (8 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Combination Meter And Multi Display System Wiring Diagram (9 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Combination Meter And Multi Display System Wiring Diagram (10 Of 15)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Combination Meter And Multi Display System Wiring Diagram (11 Of 15)

Fig 12: Combination Meter And Multi Display System Wiring Diagram (12 Of 15)

Fig 13: Combination Meter And Multi Display System Wiring Diagram (13 Of 15)

Fig 14: Combination Meter And Multi Display System Wiring Diagram (14 Of 15)

Fig 15: Combination Meter And Multi Display System Wiring Diagram (15 Of 15)
