OEM System Circuits: AWD: Notes

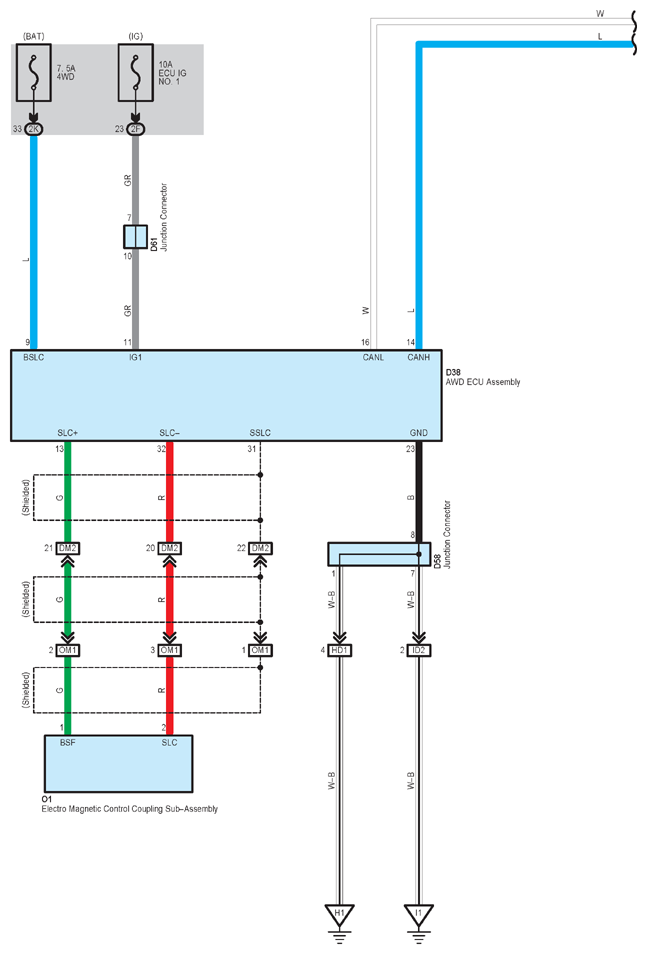

Fig 1: AWD System Wiring Diagram (1 Of 6)

G09116737

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

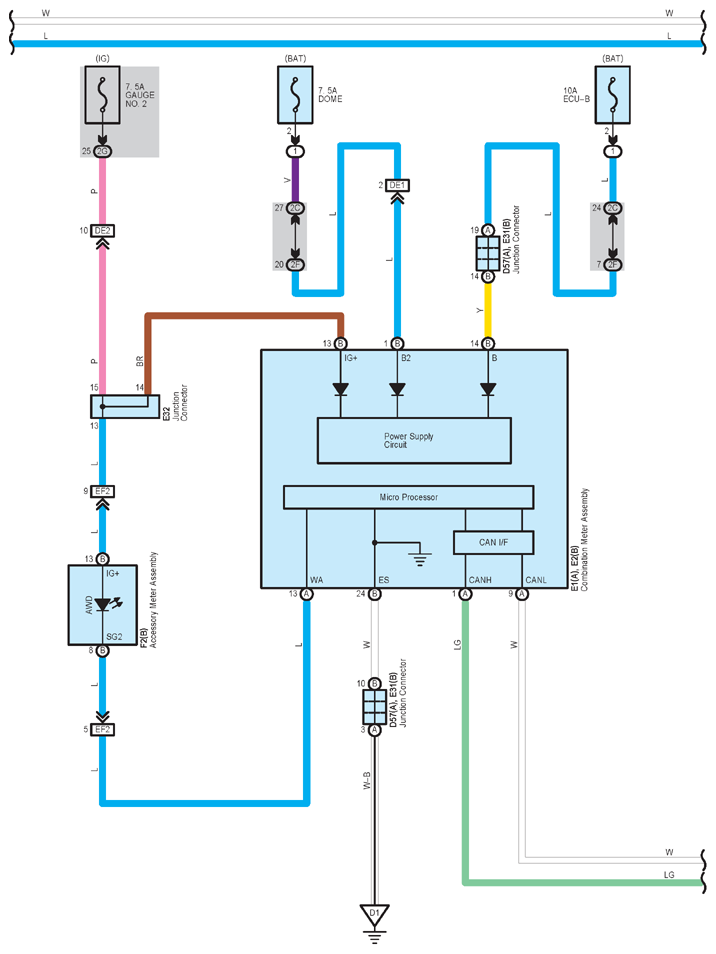

Fig 2: AWD System Wiring Diagram (2 Of 6)

G09116738

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

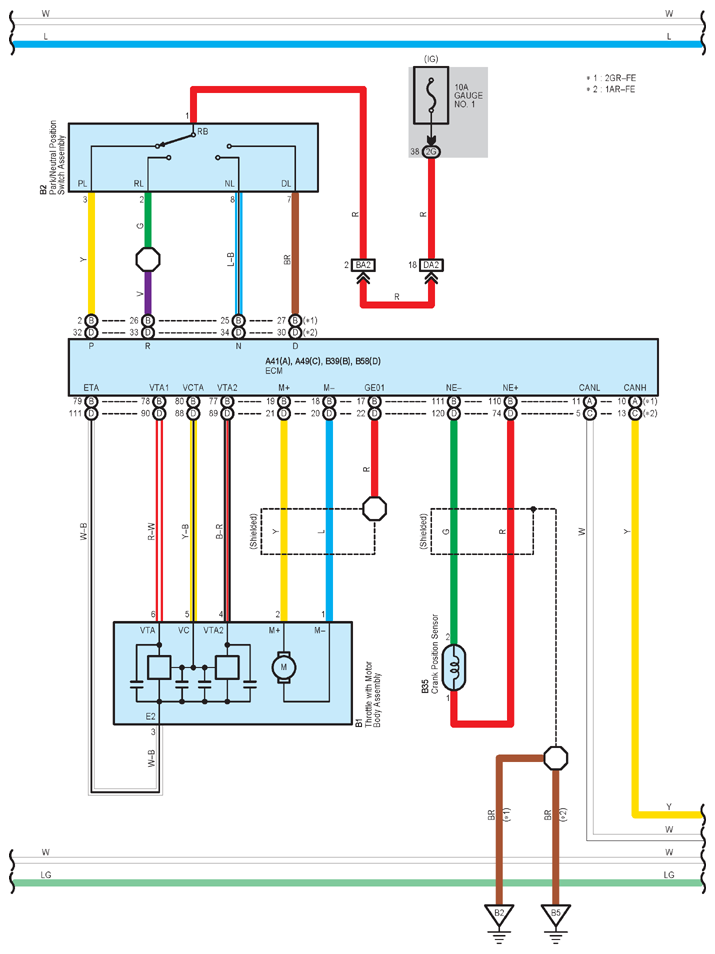

Fig 3: AWD System Wiring Diagram (3 Of 6)

G09116739

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

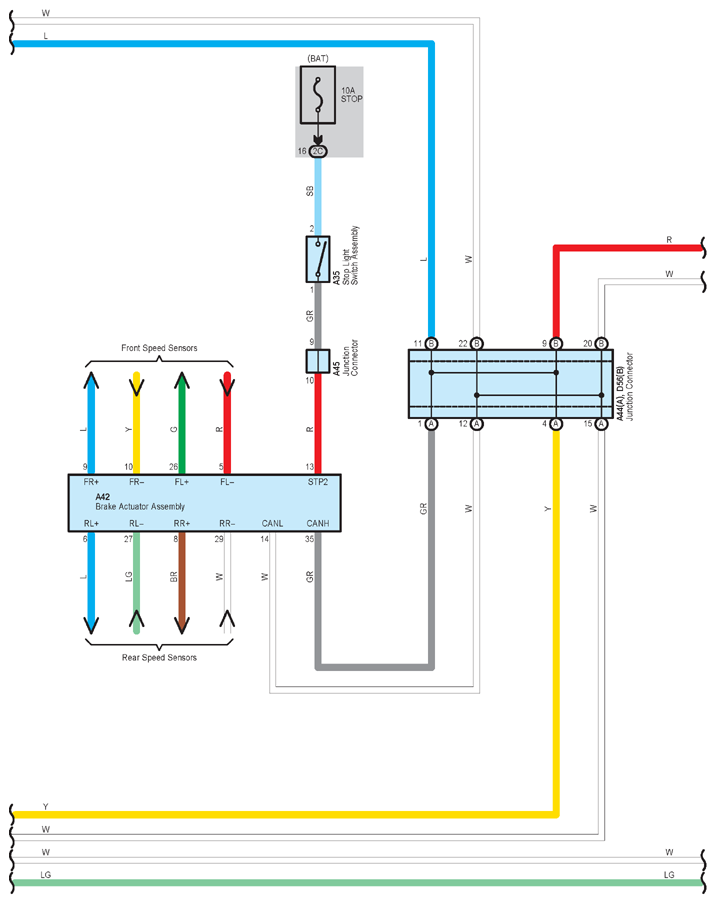

Fig 4: AWD System Wiring Diagram (4 Of 6)

G09116740

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

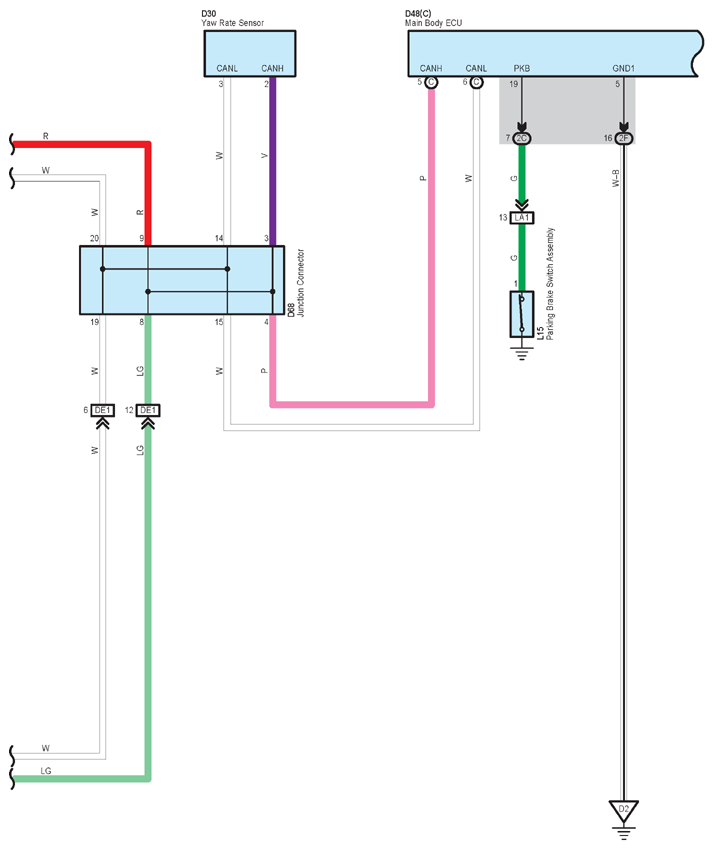

Fig 5: AWD System Wiring Diagram (5 Of 6)

G09116741

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

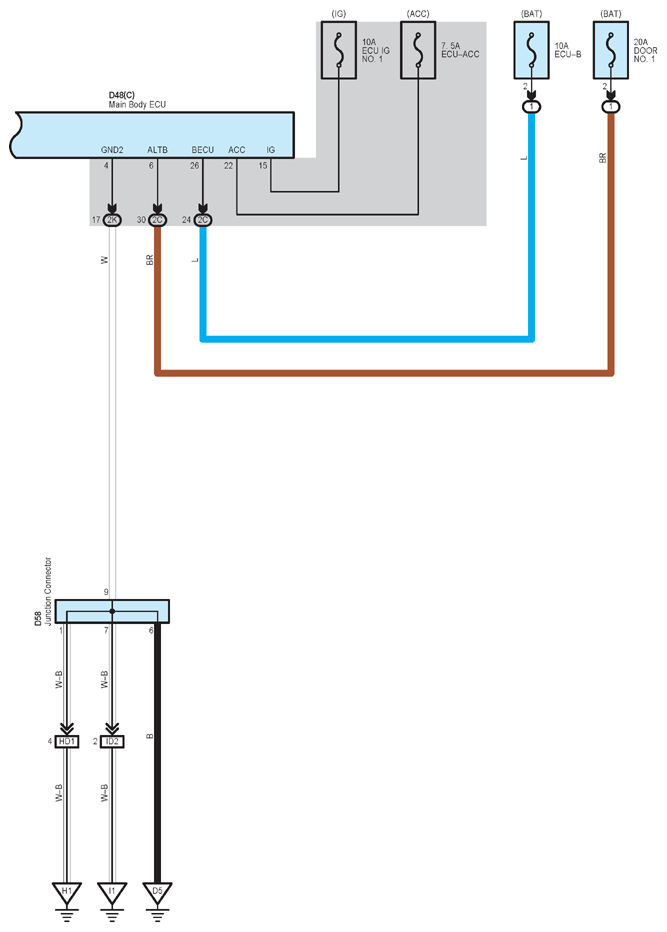

Fig 6: AWD System Wiring Diagram (6 Of 6)

G09116742

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
