Transfer Oil: Replacement: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. DRAIN TRANSFER OIL
    1. Stop the vehicle in a level place.

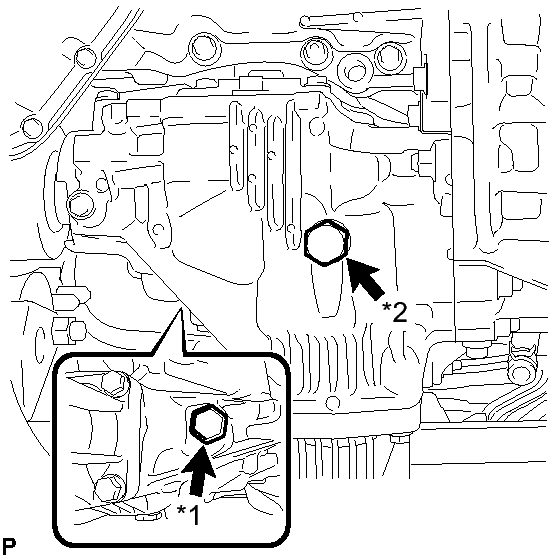

      Fig 1: Identifying No. 1 Transfer Case Plug & Drain Plug
      GTY305850Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the No. 1 transfer case plug and gasket.
      TEXT IN ILLUSTRATION

      *1 No. 1 Transfer Case Plug
      *2 Transfer Drain Plug
    3. Remove the transfer drain plug and gasket, and then drain the transfer oil.
    4. Install a new gasket and the transfer drain plug.

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  2. ADD TRANSFER OIL
    1. Add transfer oil surface is within 5 mm (0.196 in.) of the bottom of the No. 1 transfer case plug opening.

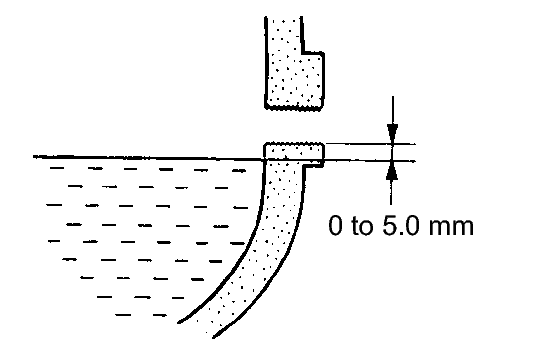

      Fig 2: Identifying Transfer Oil Surface Level
      GTY306694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Oil Type Oil Capacity (Reference)
      Toyota Genuine Differential gear oil LT 75W-85 GL-5 or equivalent 0.8 liters (0.8 US qts, 0.7 Imp. qts)
    2. Install a new gasket and the No. 1 transfer case plug.

      Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

  3. DRIVE TEST
  4. INSPECT TRANSFER OIL  See step  1
  5. INSPECT FOR OIL LEAK
