Ignition System (2GR-FE) (Inspection)
>>
Ignition System
>>
System Diagram
>>
System Diagram
System Diagram

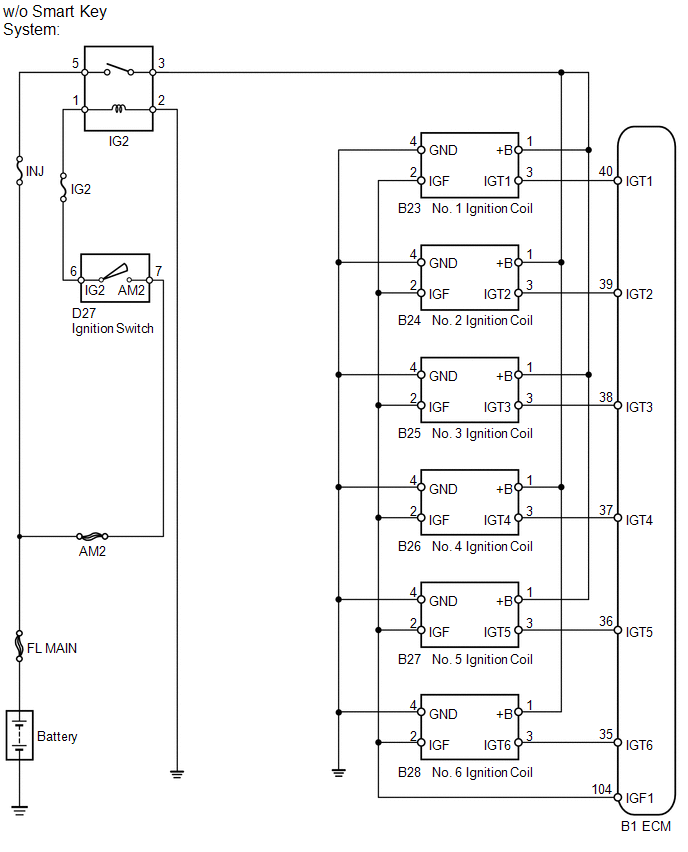

Fig 1: Ignition System Wiring Diagram (w/o Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

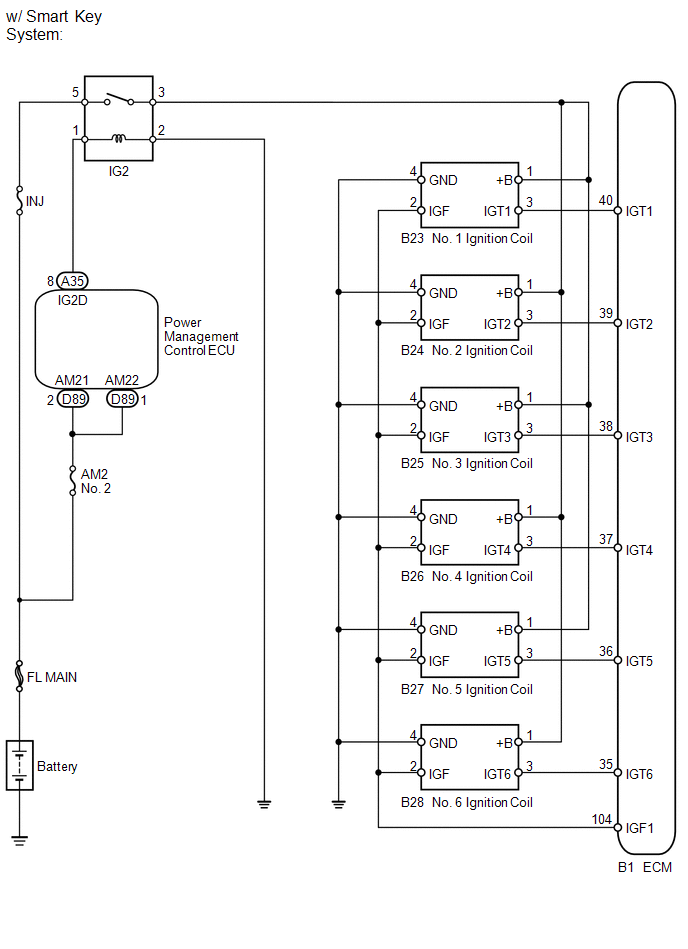

Fig 2: Ignition System Wiring Diagram (w/ Smart Key System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
