Ignition (1AR-FE): Notes

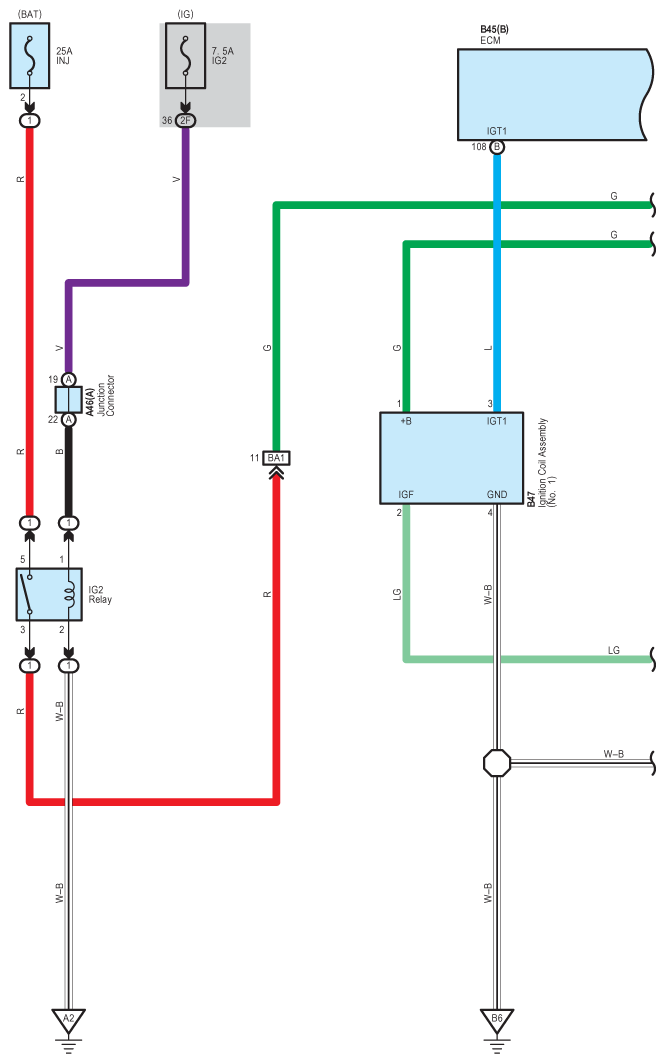

Fig 1: Ignition (1AR-FE) System Wiring Diagram (1 Of 2)
G09111411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

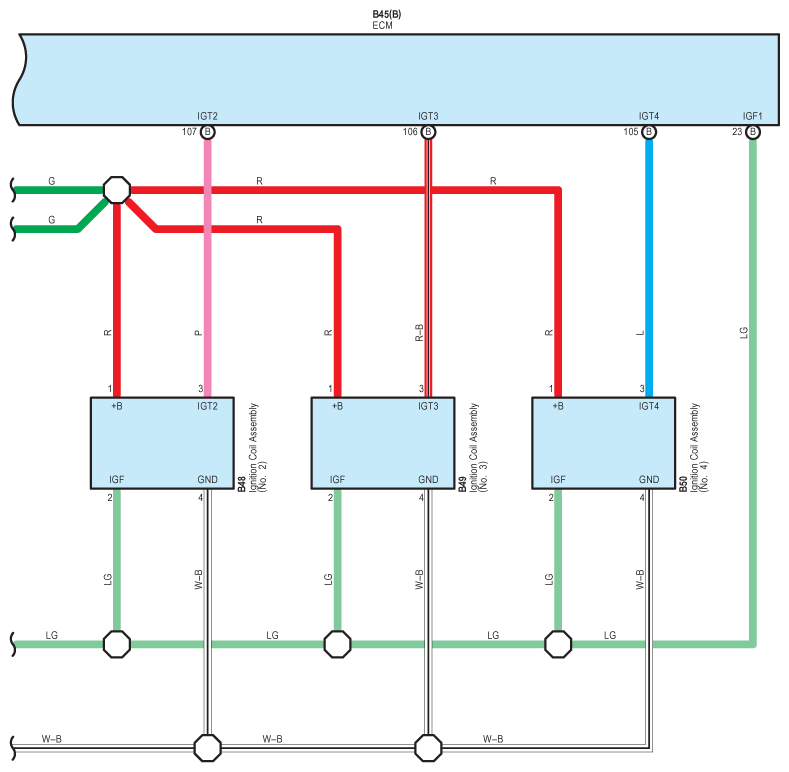

Fig 2: Ignition (1AR-FE) System Wiring Diagram (2 Of 2)
G09111412Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
