Front Window Deicer: Notes

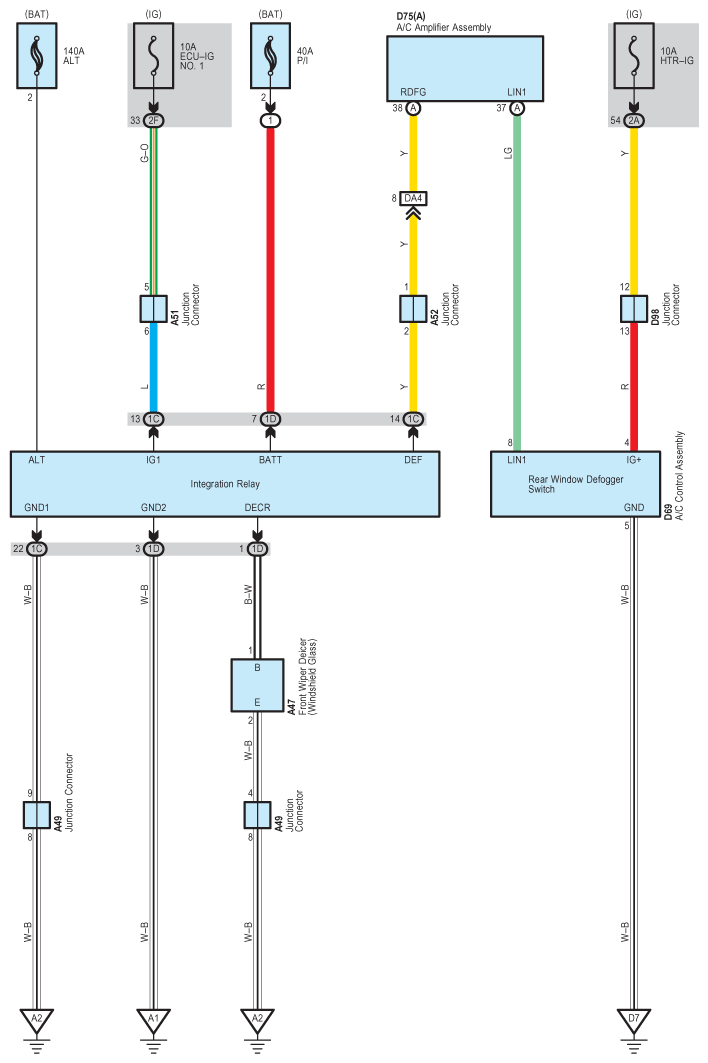

Fig 1: Front Window Deicer System Wiring Diagram

G09111671

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
