Engine Control System (3UR-FBE) (Service Information): ECM: Components: Illustration

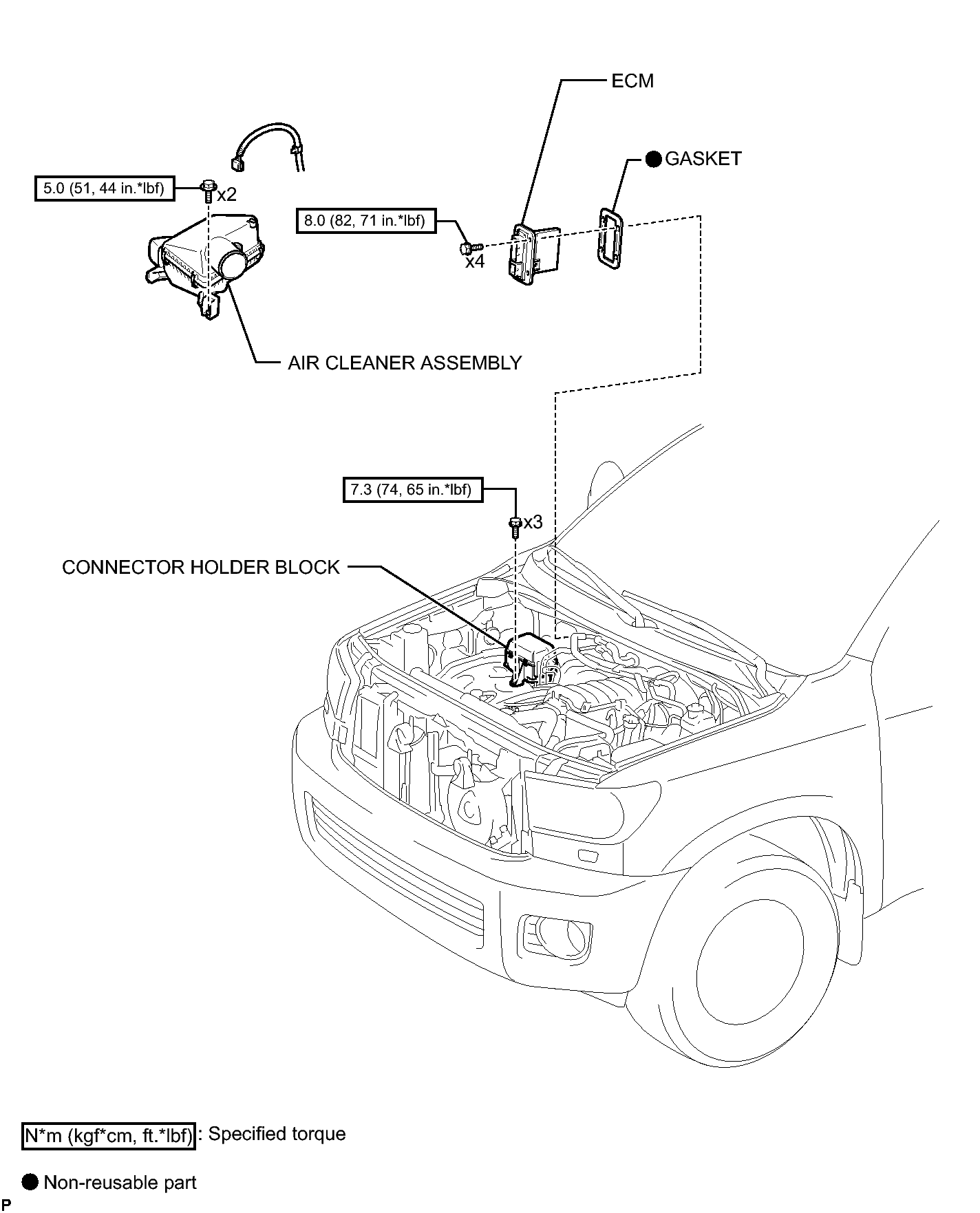

Fig 1: Identifying ECM Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
