Seat Belt Warning: Notes

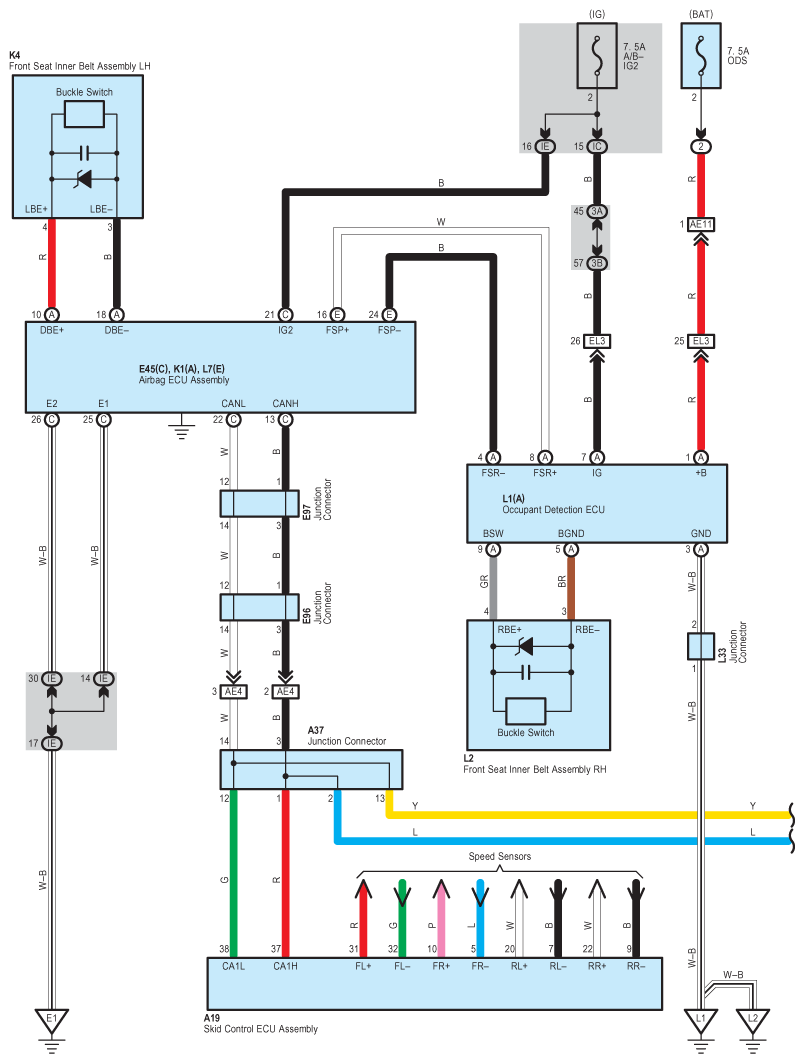

Fig 1: Seat Belt Warning Wiring Diagram (1 Of 2)
G09110553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

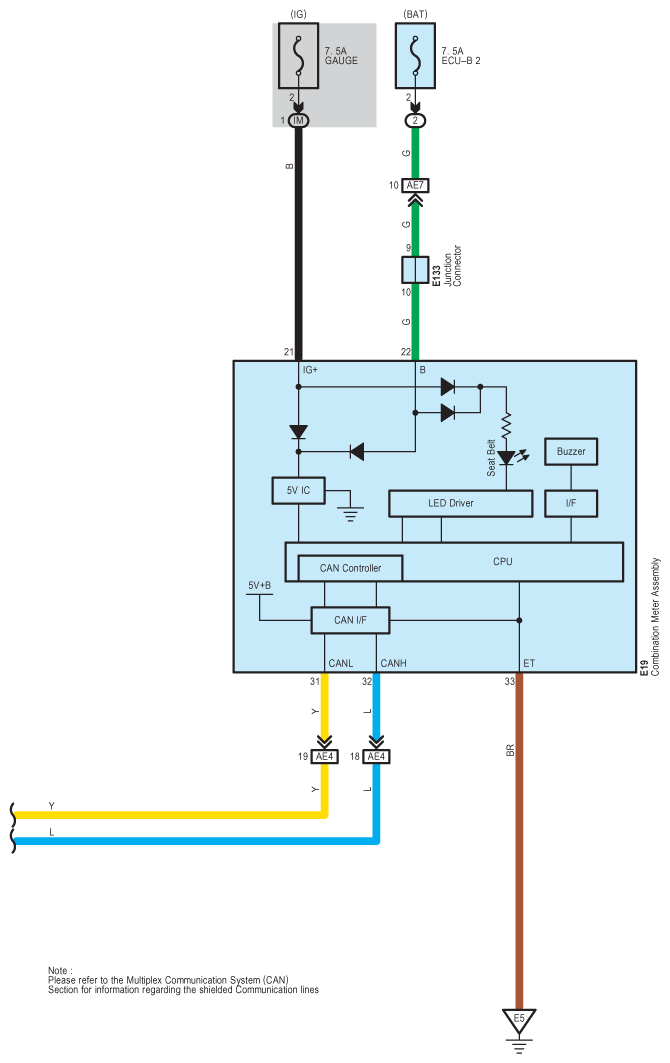

Fig 2: Seat Belt Warning Wiring Diagram (2 Of 2)
G09110554Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
