Repair and Diagnosis (Single Page)
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Stop Light
>>
Notes
Stop Light: Notes

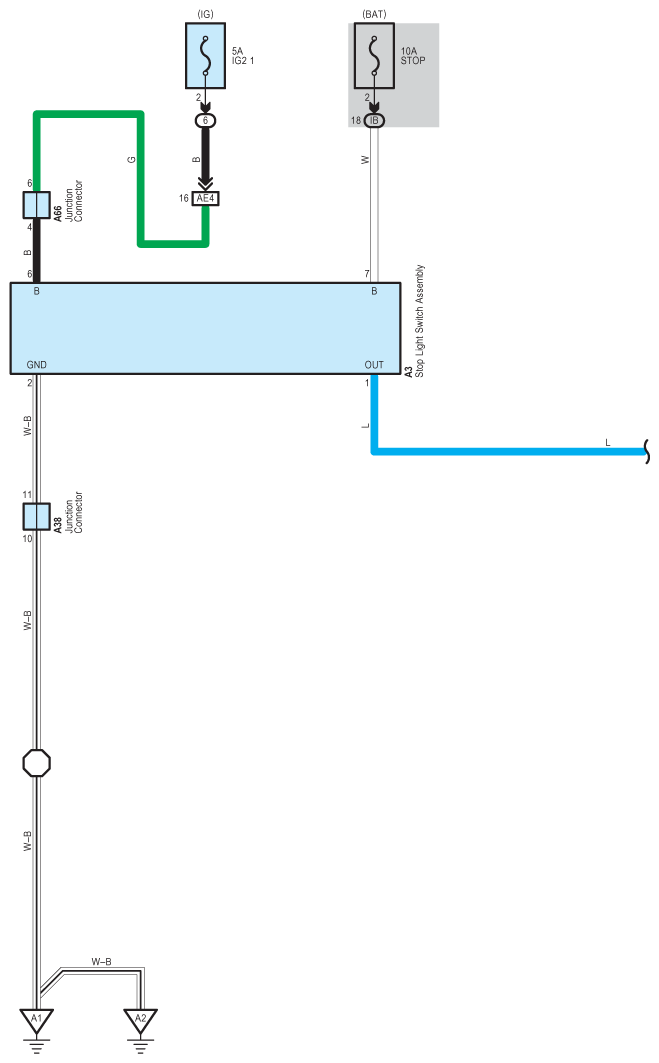

Fig 1: Stop Light Wiring Diagram (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

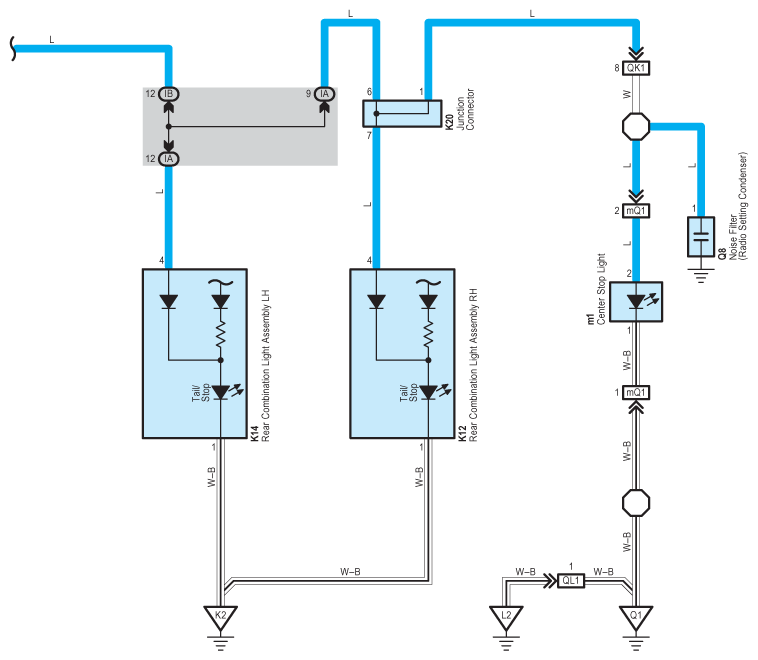

Fig 2: Stop Light Wiring Diagram (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
