Power Outlet: Notes

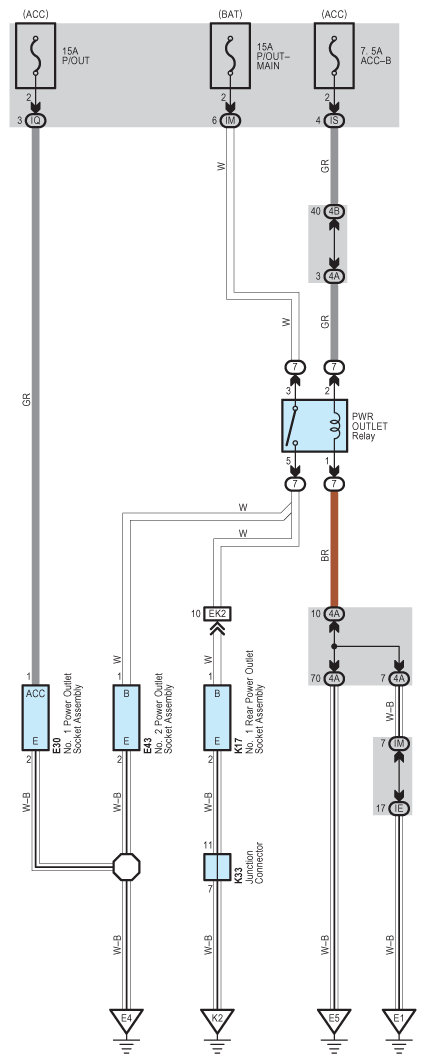

Fig 1: Power Outlet Wiring Diagram

G09110557

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
