Parts Location: Illustration

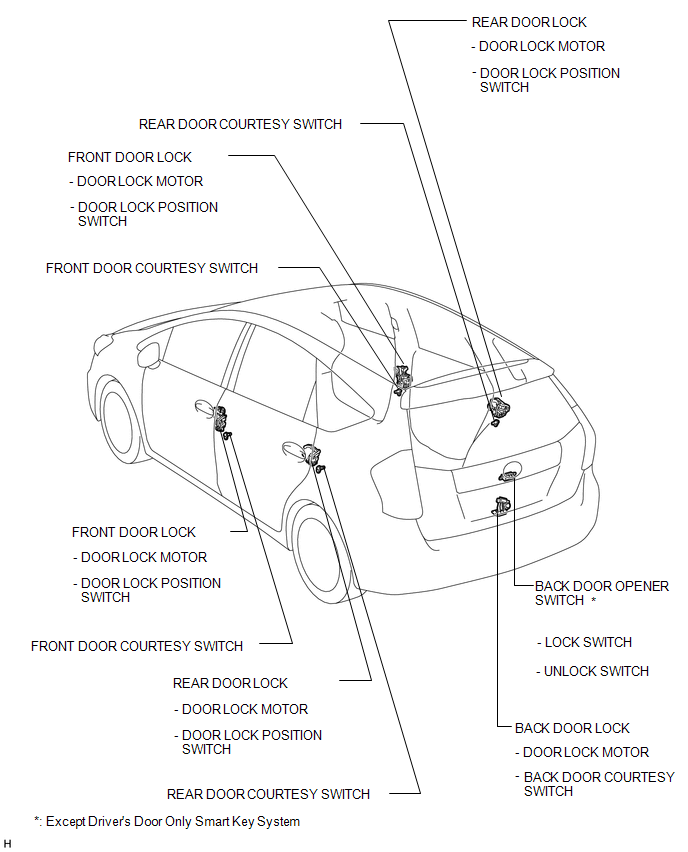

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (1 Of 3)
GTY338098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

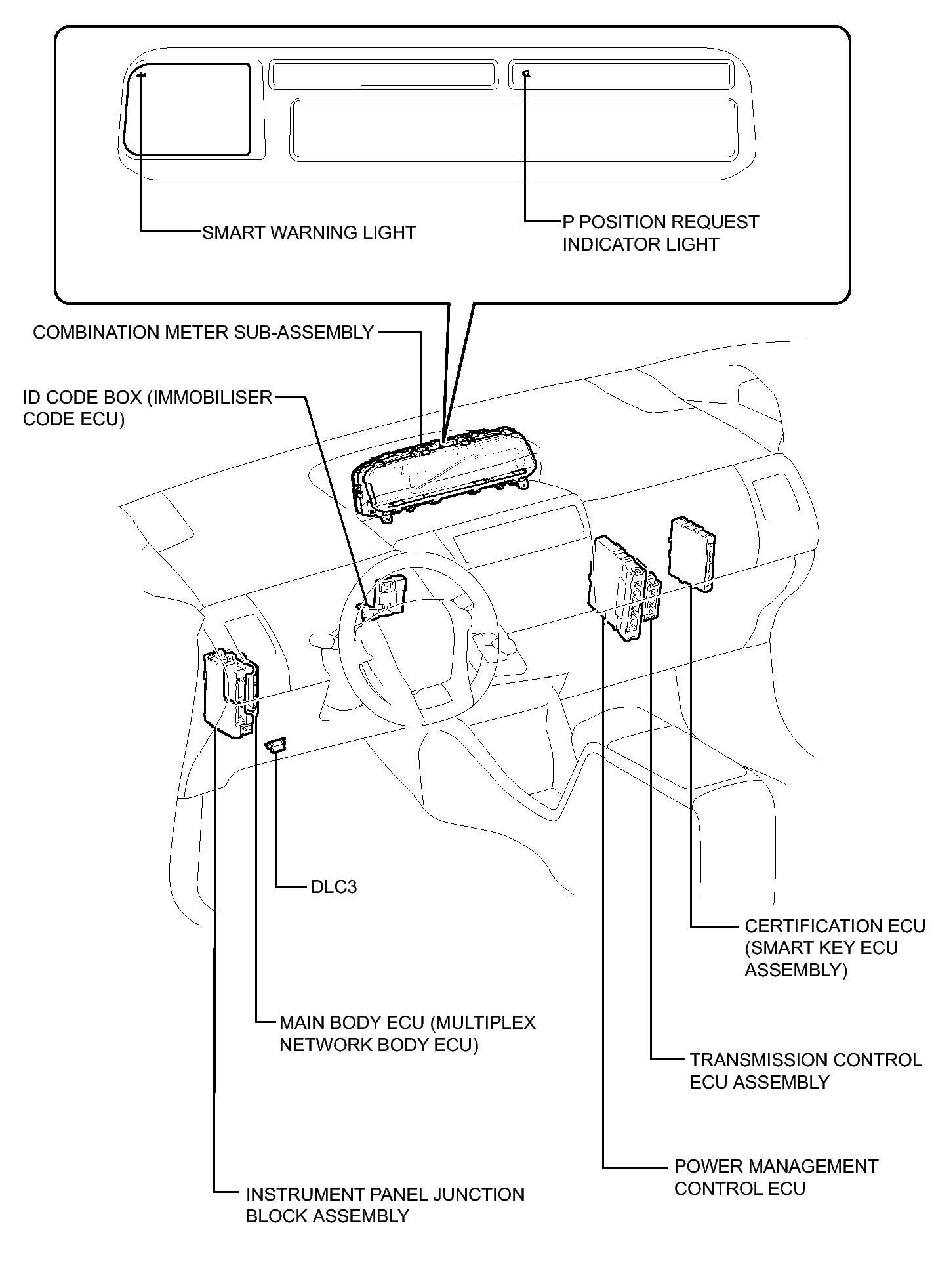

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (2 Of 3)
GTY338387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

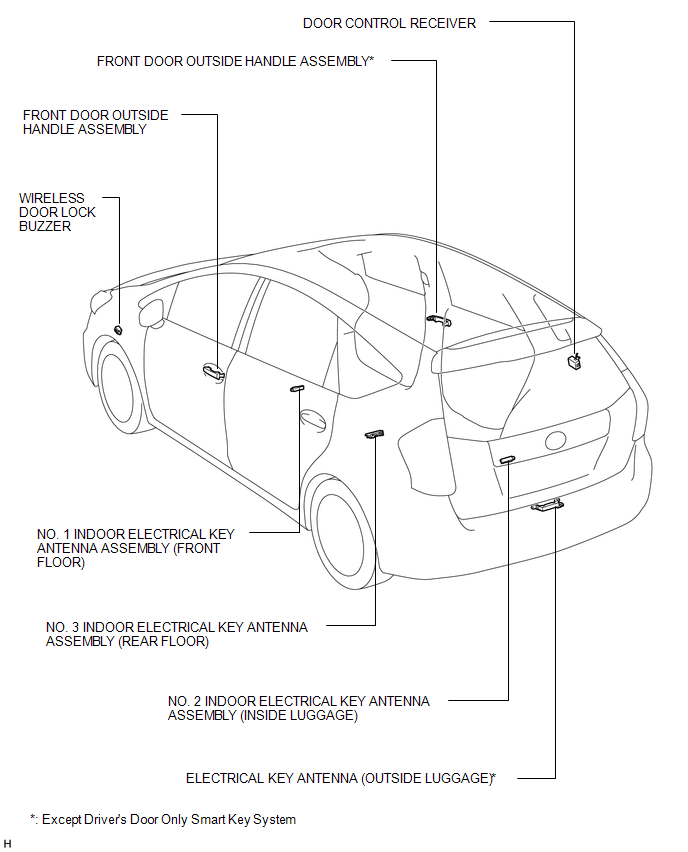

Fig 1: Identifying Smart Key System Components Location (For Entry Function) (3 Of 3)
GTY343495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
