Front Door Speaker: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL FRONT NO. 1 SPEAKER ASSEMBLY
    1. Using an air riveter or a hand riveter, install the front No. 1 speaker assembly with 4 new rivets.

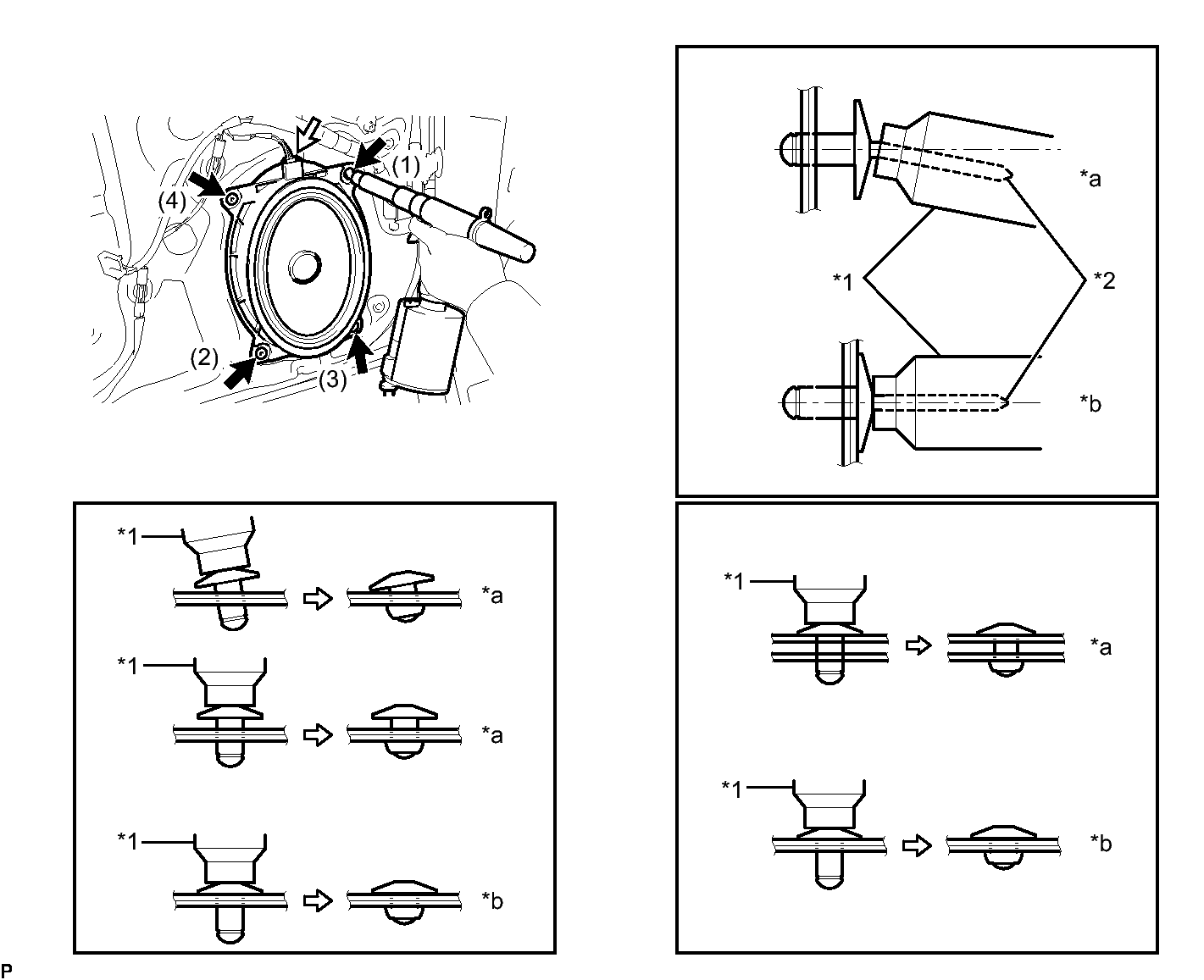

      Fig 1: Installing Speaker With New Rivets
      GTY330615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Riveter *2 Mandrel
      *a INCORRECT *b CORRECT
      NOTE:
      • Do not pry the rivet with the riveter, as this will cause damage to the riveter and mandrel.
      • Confirm that the rivet is seated properly against the moulding. Do not tilt the riveter when installing the rivet to the moulding. Do not leave any clearance between the rivet head and moulding.
      • Do not leave any clearance between the moulding and door frame. Firmly hold the 2 items together while installing the rivet.

      HINT:

      If the rivet cannot be cut, pull it once and cut it.

    2. Connect the connector.
  2. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY  . Refer to REASSEMBLY - Step 39
  3. INSTALL COURTESY LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 1
  4. INSTALL DOOR ARMREST COVER  . Refer to REASSEMBLY - Step 41
  5. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)  . Refer to REASSEMBLY - Step 42
  6. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)  . Refer to INSTALLATION - Step 2
  7. INSTALL ASSIST GRIP COVER  . Refer to REASSEMBLY - Step 44
  8. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG  . Refer to REASSEMBLY - Step 45
