Section 32 (Engine Cooling System (Service Information) (Plug-In)): Radiator: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

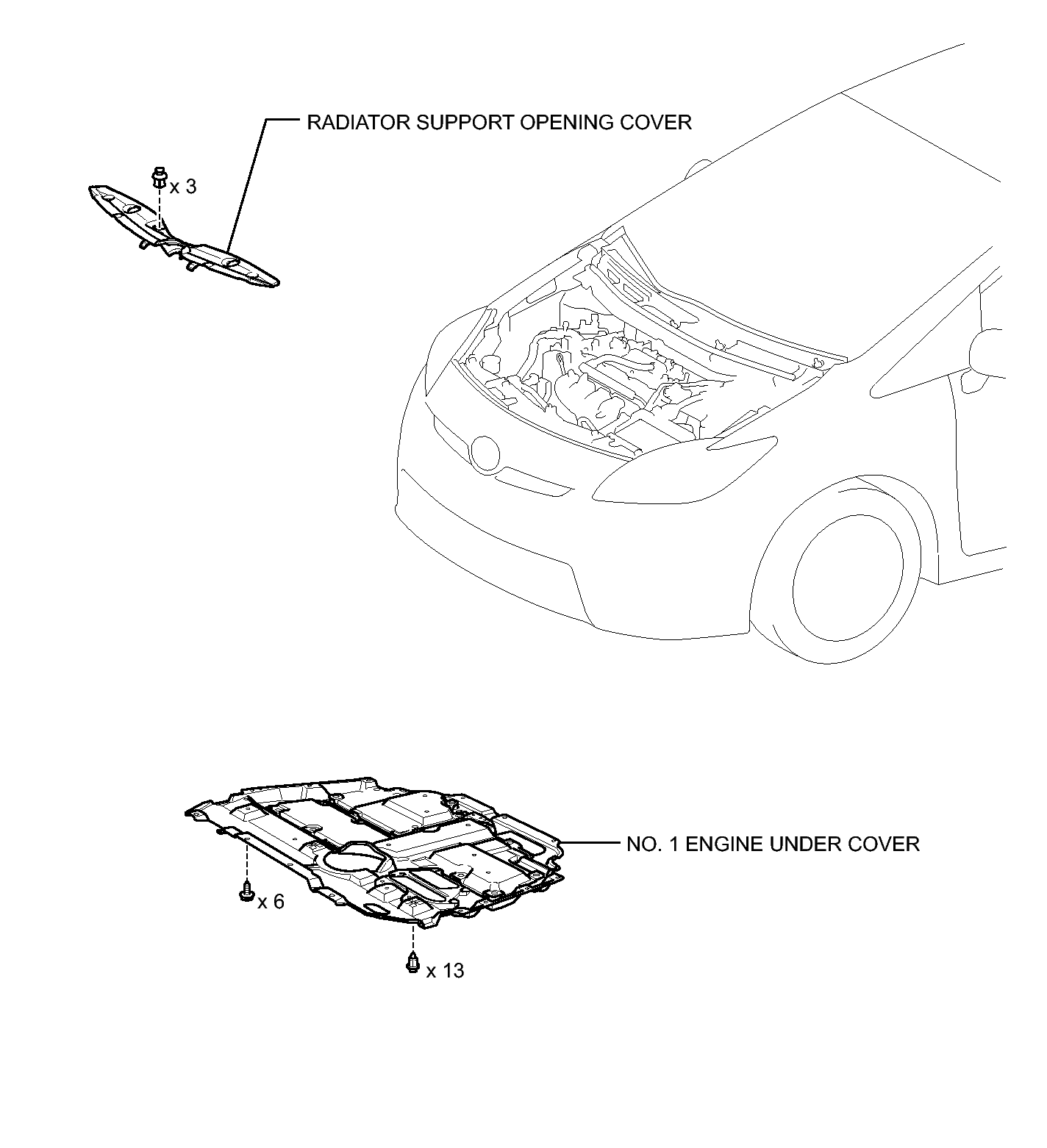

Fig 1: Identifying Radiator Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

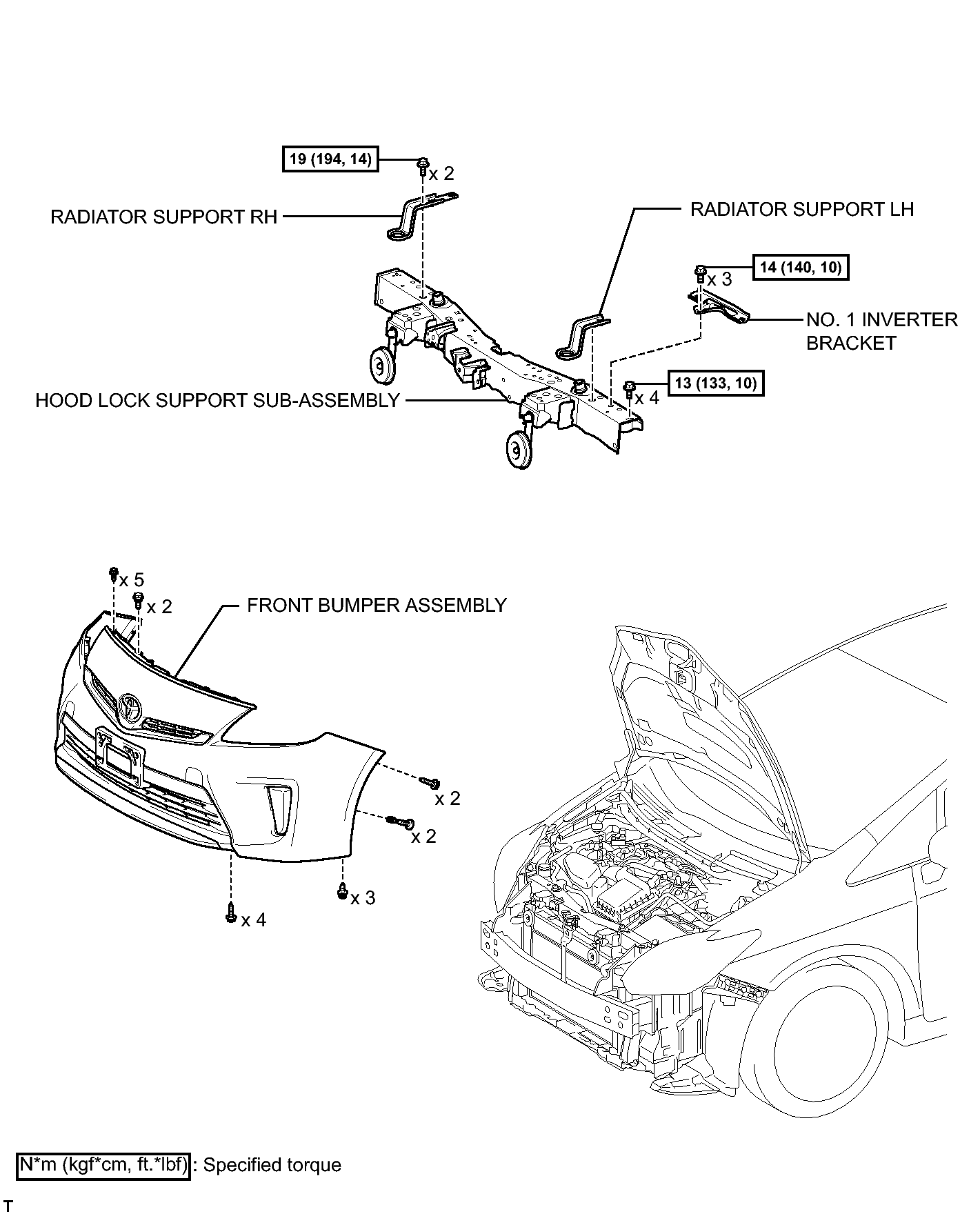

Fig 1: Identifying Radiator Replacement Components (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

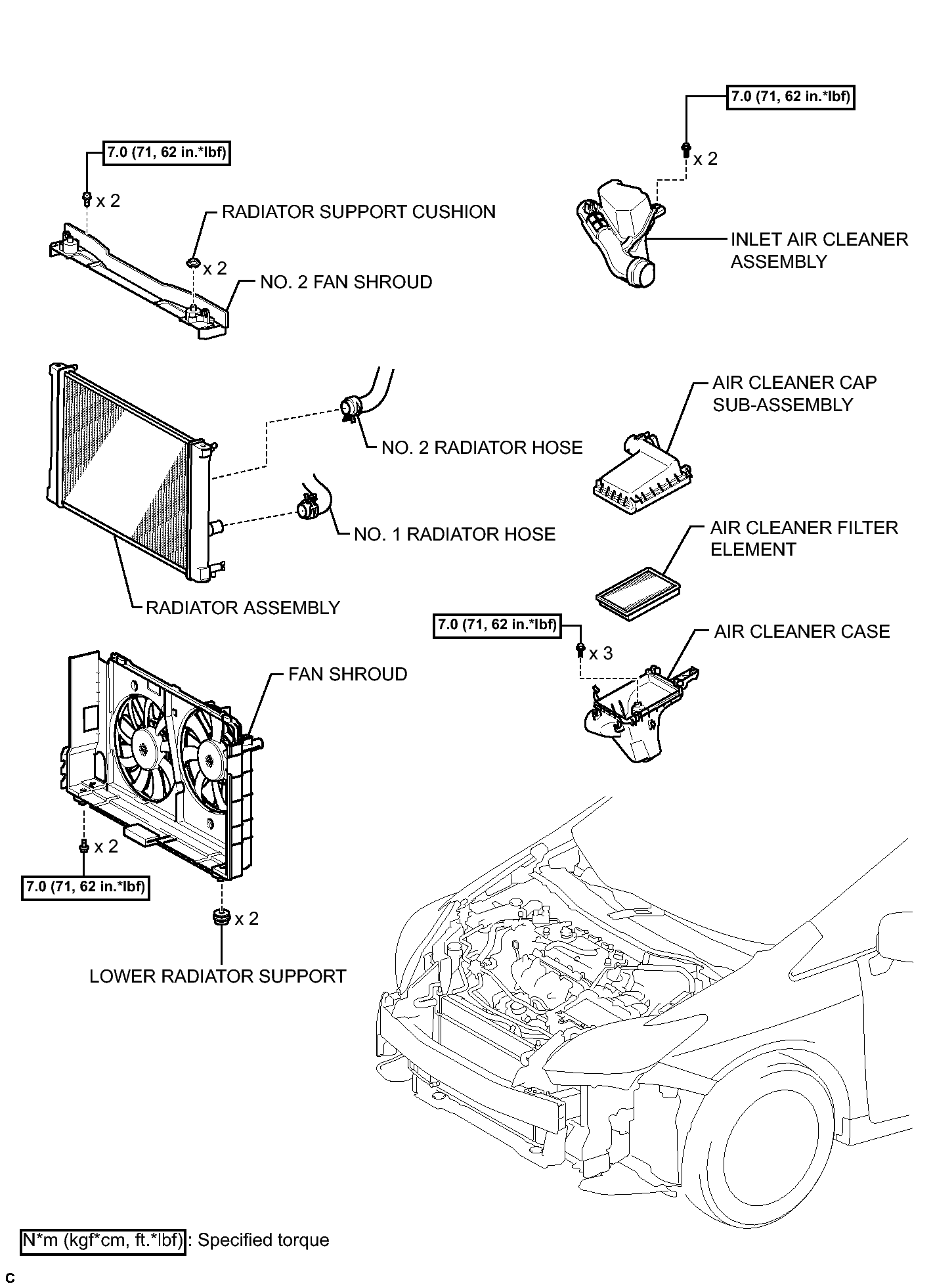

Fig 1: Identifying Radiator Replacement Components With Torque Specifications (3 Of 4)

Fig 1: Identifying Radiator Replacement Components With Torque Specifications (4 Of 4)
