Remote Control Mirror: Notes

WARNING: This page is about a different variant/trim than selected.

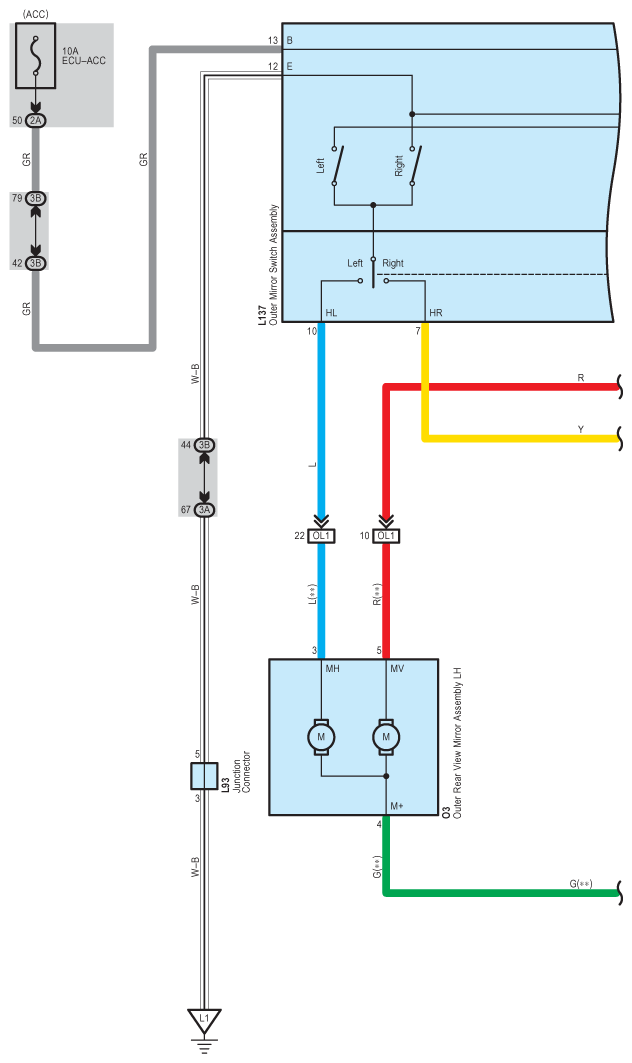

Fig 1: Remote Control Mirror System Wiring Diagram (1 Of 2)
G09100335Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

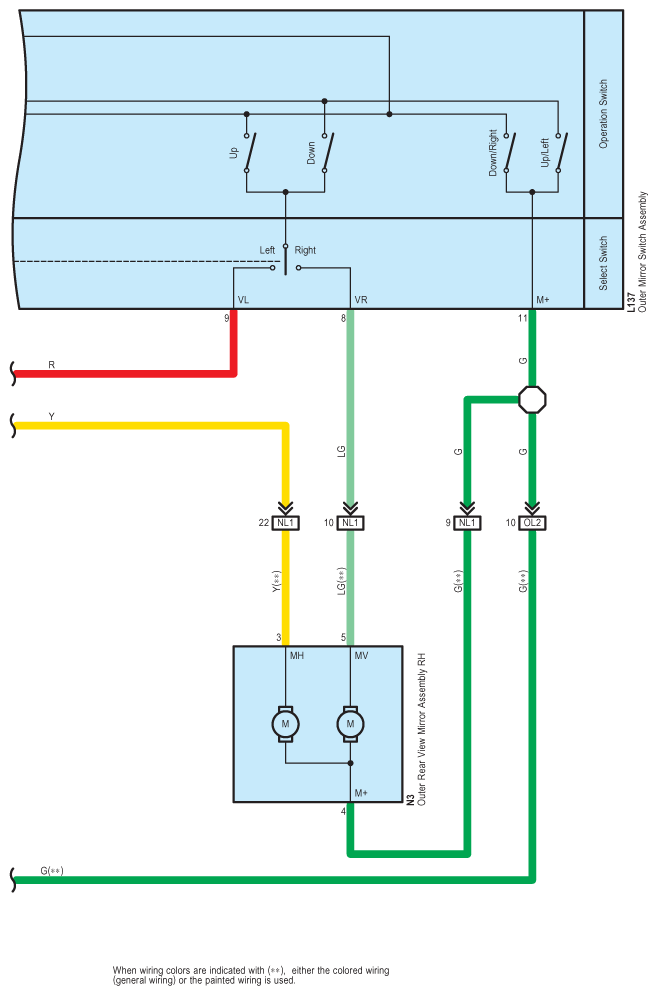

Fig 2: Remote Control Mirror System Wiring Diagram (2 Of 2)
G09100336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
