Section 141 (OEM System Circuits (Plug-In))
>>
Fog Light
>>
Notes
Fog Light: Notes
WARNING:
This page is about a different variant/trim than selected.

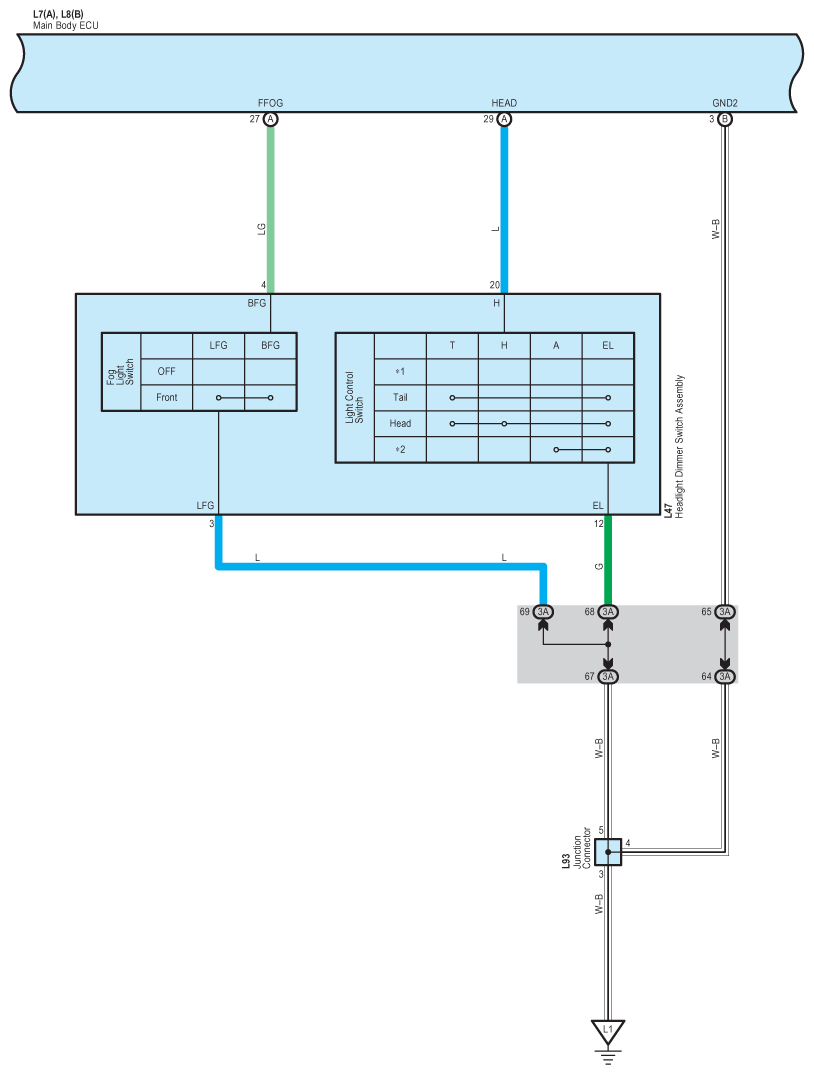

Fig 1: Fog Light System Wiring Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

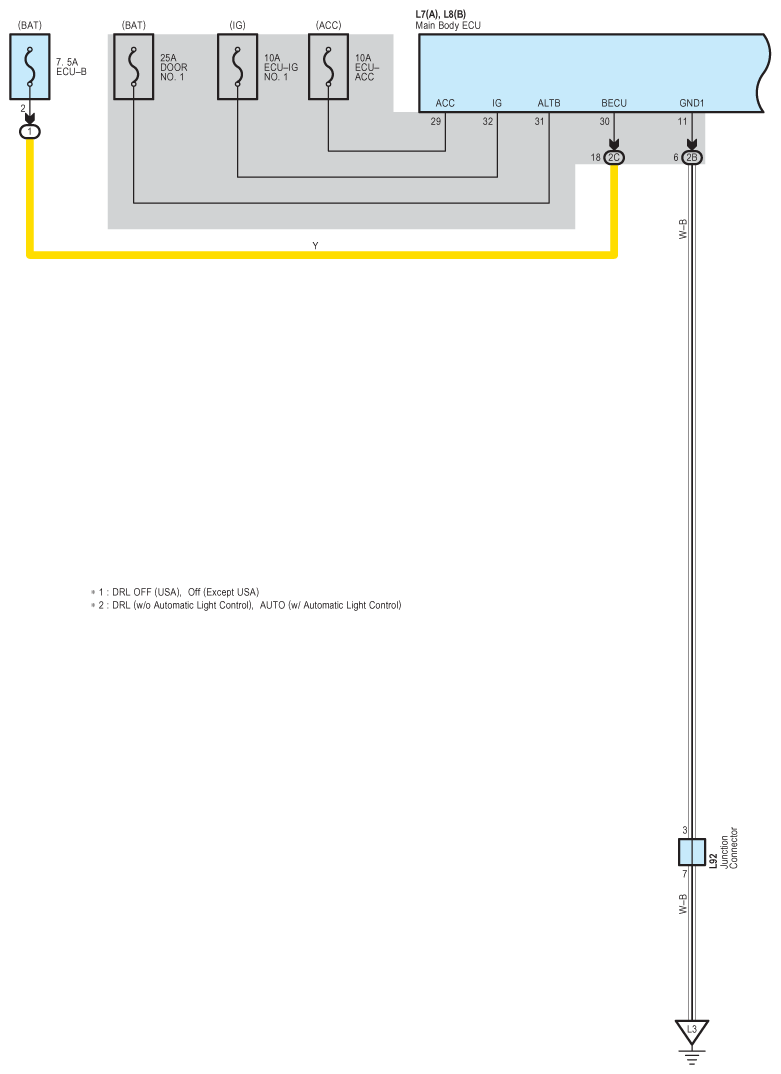

Fig 2: Fog Light System Wiring Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

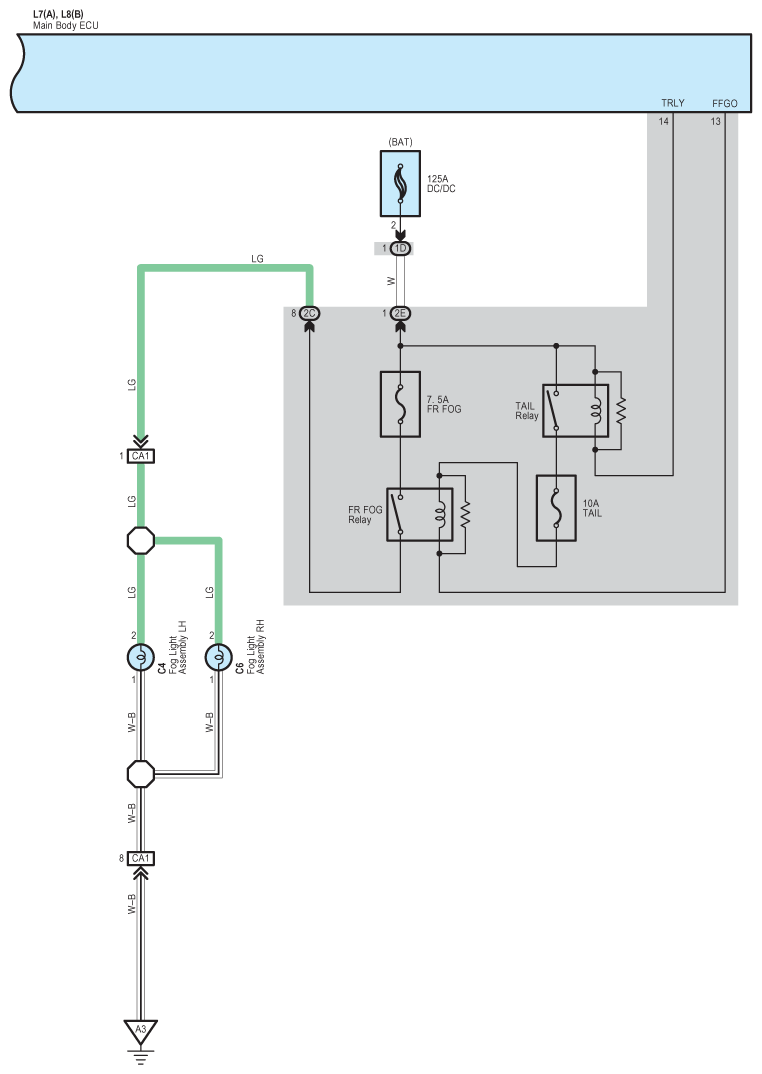

Fig 3: Fog Light System Wiring Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
