Interior Light Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

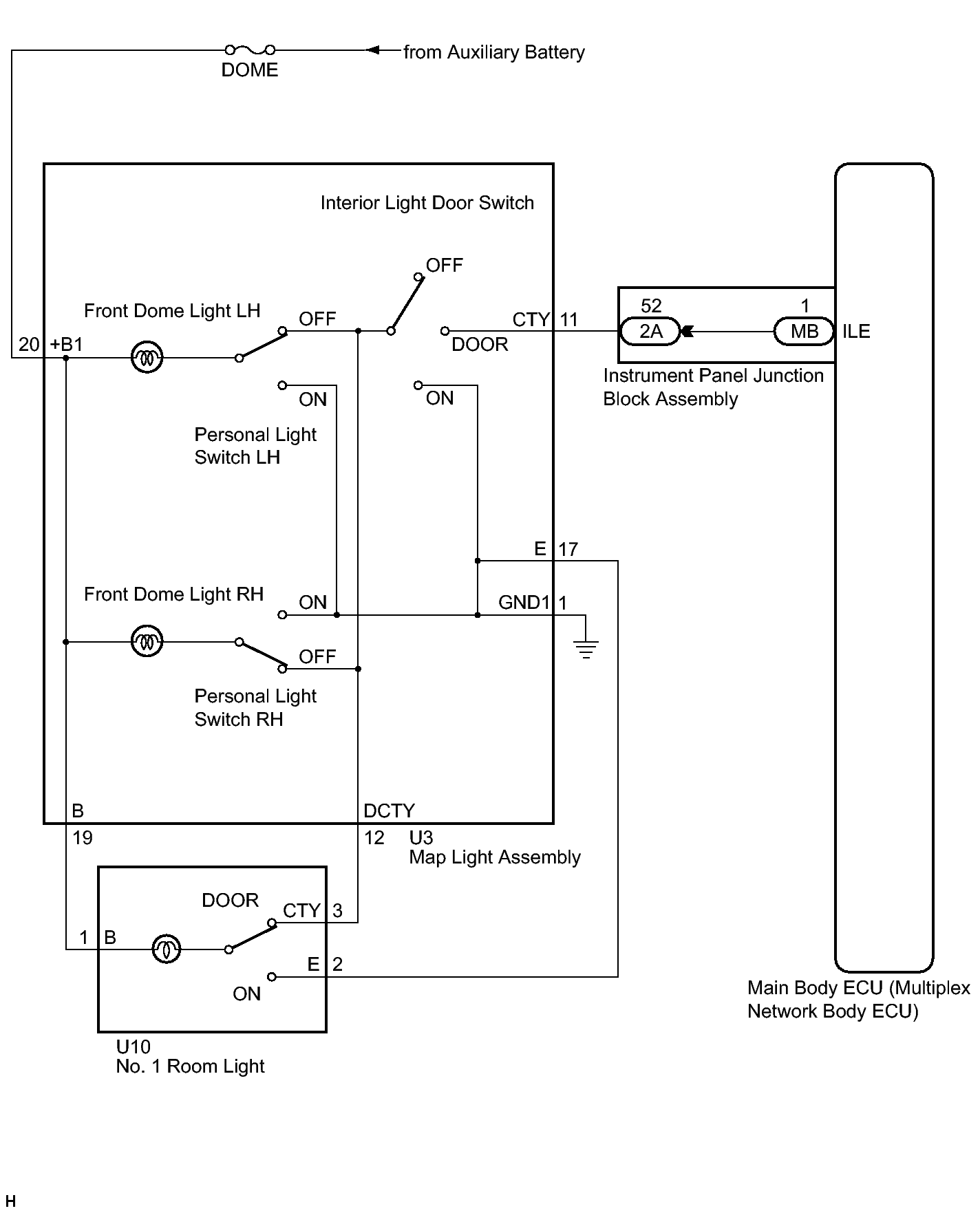

Fig 1: Identifying Interior Light Circuit Diagram
GTY341261Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
