Back Door Courtesy Switch: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Back Door Lock Replacement Components With Torque Specifications (1 Of 3)
GTY340445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Noise Filter Replacement Components (2 Of 4)
GTY334080Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

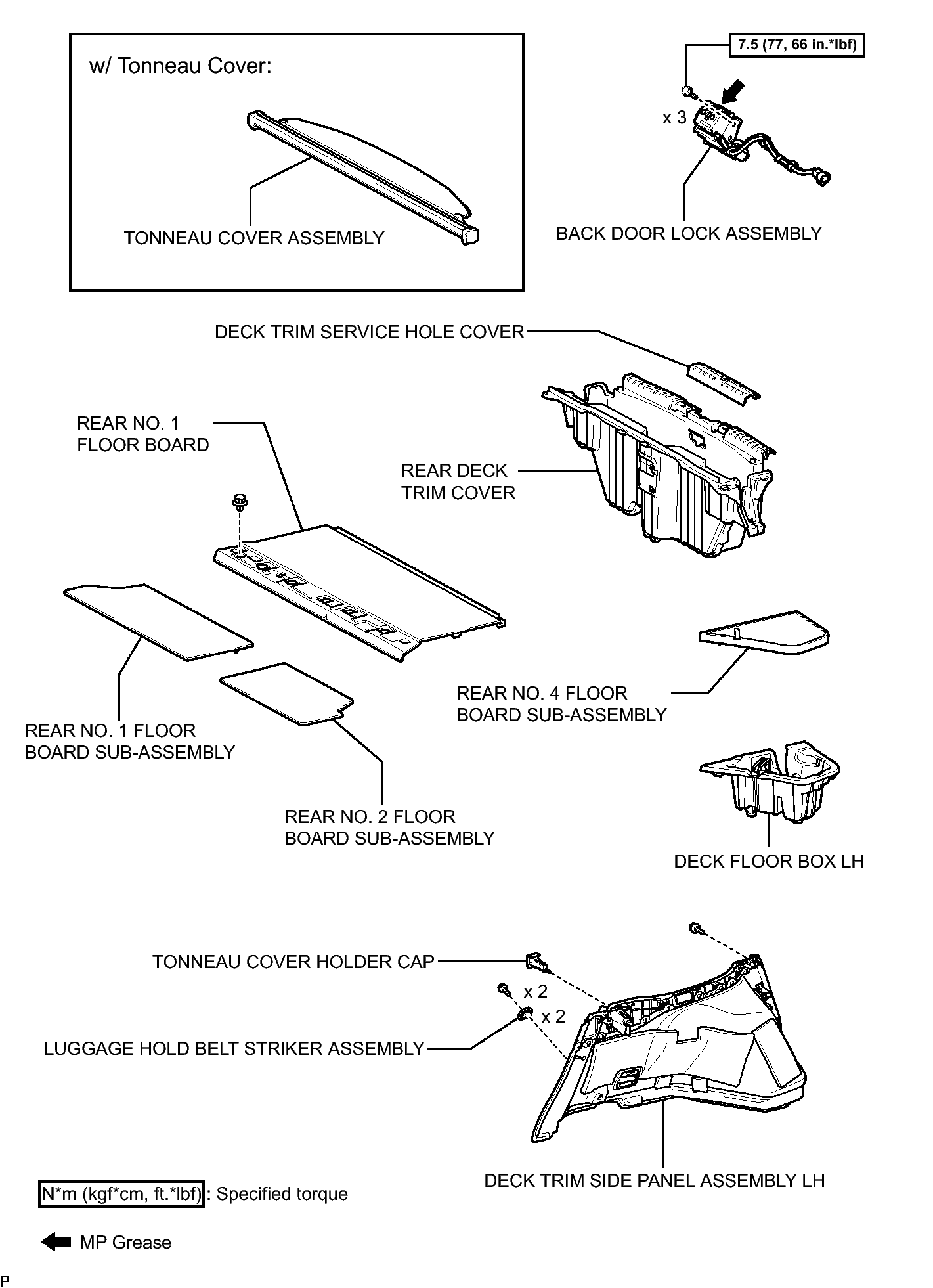

Fig 1: Identifying Back Door Lock Replacement Components With Torque Specifications (3 Of 3)
GTY331444Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
