Engine Room Relay Block And Engine Room Junction Block: Left Engine Compartment

Fig 1: Engine Room R/B Assembly And J/B Assembly Unit Location
G09099240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

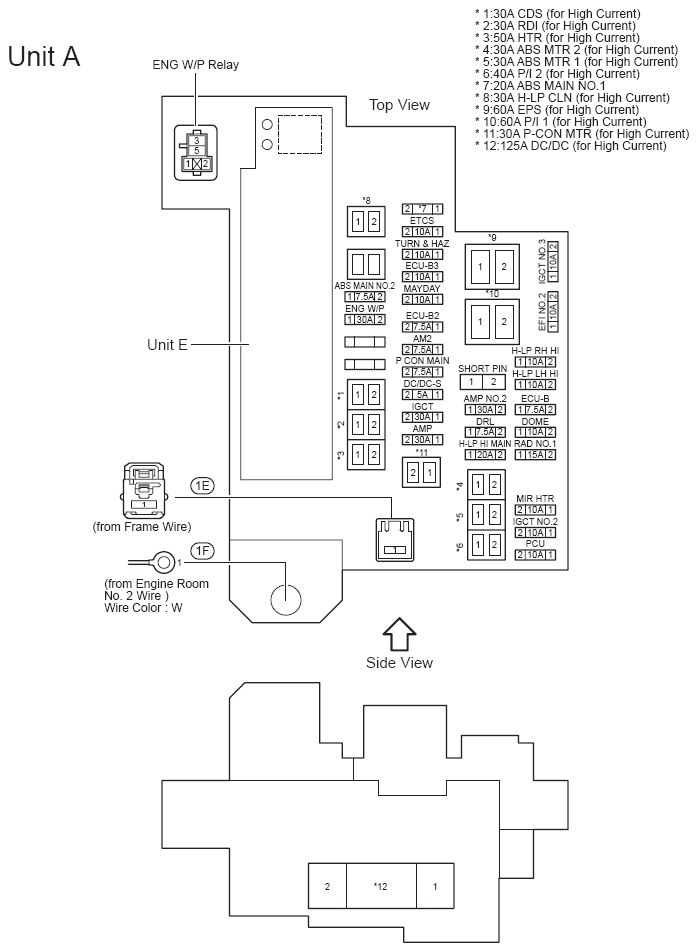

Fig 2: Engine Room R/B Assembly And J/B Assembly Fuse & Relay Location (Unit A)
G09099241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Engine Room R/B And J/B (Unit A) Relay Identification

RELAY DESCRIPTION
ENG W/P Relay
Engine Room R/B And J/B (Unit A) Fuse Identification Legend

Fuse System
5A DC/DC-S Hybrid System and Shift Control System
Remote Air Conditioning System
7.5A ABS MAIN NO. 2 ABS, TRAC and VSC
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
7.5A AM2 Back Door Opener, Engine Immobiliser System, Smart Key System, Starting and Wireless Door Lock Control
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
Remote Air Conditioning System
7.5A DRL Headlight
7.5A ECU-B ABS, TRAC and VSC
Air Conditioning
Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier)
Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier)
Automatic Light Control and Light Auto Turn Off System
Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control
Combination Meter
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Door Lock Control
EPS
Fog Light
Headlight
Headlight Beam Level Control
Headlight Cleaner
Hybrid System and Shift Control System
Illumination and Taillight
Interior Light
Lane Keeping Assist
Power Window
Pre-Collision System
Remote Air Conditioning System
Safety Connect
Seat Belt Warning
Sliding Roof
SRS
Tire Pressure Warning System
Vehicle Proximity Notification System
7.5A ECU-B2 Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control
7.5A P CON MAIN Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
Vehicle Proximity Notification System
10A BATT FAN Hybrid System and Shift Control System
10A DOME Automatic Glare-Resistant EC Mirror and Garage Door Opener
Interior Light
10A ECU-B3 Air Conditioning
Mirror Heater and Rear Window Defogger
Solar Ventilation System
10A EFI NO. 2 Cruise Control, Dynamic Radar Cruise Control and Engine Control
10A ETCS Cruise Control, Dynamic Radar Cruise Control and Engine Control
10A H-LP LH HI Headlight
10A H-LP RH HI Headlight
10A IGCT NO. 2 Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
Remote Air Conditioning System
Vehicle Proximity Notification System
10A IGCT NO. 3 Hybrid System and Shift Control System
10A MAYDAY Safety Connect
10A MIR HTR Mirror Heater and Rear Window Defogger
10A PCU Hybrid System and Shift Control System
10A TURN & HAZ Turn Signal and Hazard Warning Light
15A RAD NO. 1 Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier)
Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier)
20A ABS MAIN NO. 1 ABS, TRAC and VSC
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
20A EFI MAIN Air Conditioning
Cruise Control, Dynamic Radar Cruise Control and Engine Control
20A H-LP HI MAIN Headlight
20A IG2 Combination Meter
20A IG2 Cruise Control, Dynamic Radar Cruise Control and Engine Control
Ignition
Remote Air Conditioning System
30A ABS MTR 1 ABS, TRAC and VSC
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
30A ABS MTR 2 ABS, TRAC and VSC
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
30A AMP Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier)
30A AMP NO. 2 Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier)
30A CDS Cooling Fan
30A ENG W/P Air Conditioning
Cruise Control, Dynamic Radar Cruise Control and Engine Control
30A H-LP CLN Headlight Cleaner
30A IGCT Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
Remote Air Conditioning System
Vehicle Proximity Notification System
30A P-CON MTR Back Door Opener, Engine Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control
Cruise Control, Dynamic Radar Cruise Control and Engine Control
Hybrid System and Shift Control System
30A RDI Cooling Fan
40A P/I 2 Air Conditioning
Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier)
Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier)
Automatic Light Control and Light Auto Turn Off System
Back-Up Light
Headlight
Headlight Beam Level Control
Headlight Cleaner
Horn
Hybrid System and Shift Control System
Mirror Heater and Rear Window Defogger
50A HTR Air Conditioning
Solar Ventilation System
60A EPS EPS
125A DC/DC Automatic Light Control and Light Auto Turn Off System
Fog Light
Hybrid System and Shift Control System
Illumination and Taillight
Remote Air Conditioning System
Fig 3: Engine Room R/B Assembly And J/B Assembly Connector Location (Unit A)
G09099242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

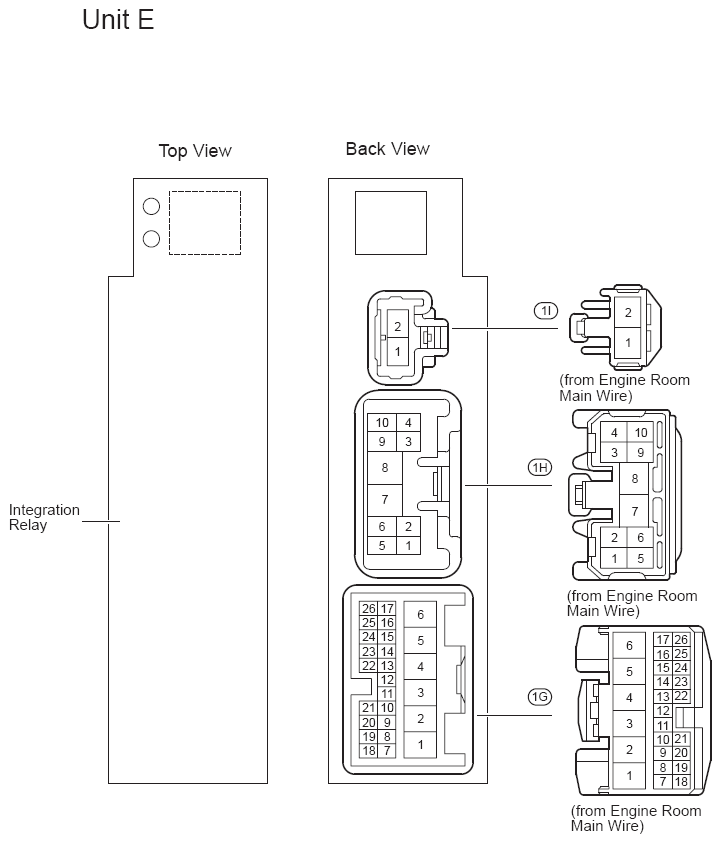

Fig 4: Engine Room R/B Assembly And J/B Assembly Connector Location (Unit E)
G09099243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

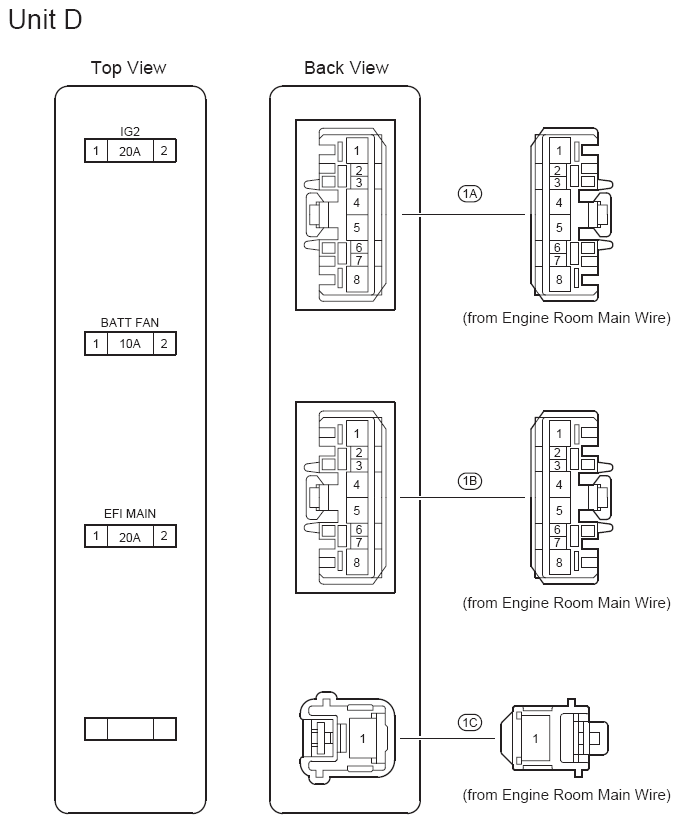

Fig 1: Engine Room R/B & J/B Assembly Fuse & connector Location (Unit D)
G09099246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Engine Room R/B And J/B Fuse Identification Legend (Unit D)

For fuse identification see Engine Room R/B And J/B (Unit A) Fuse Identification Legend .

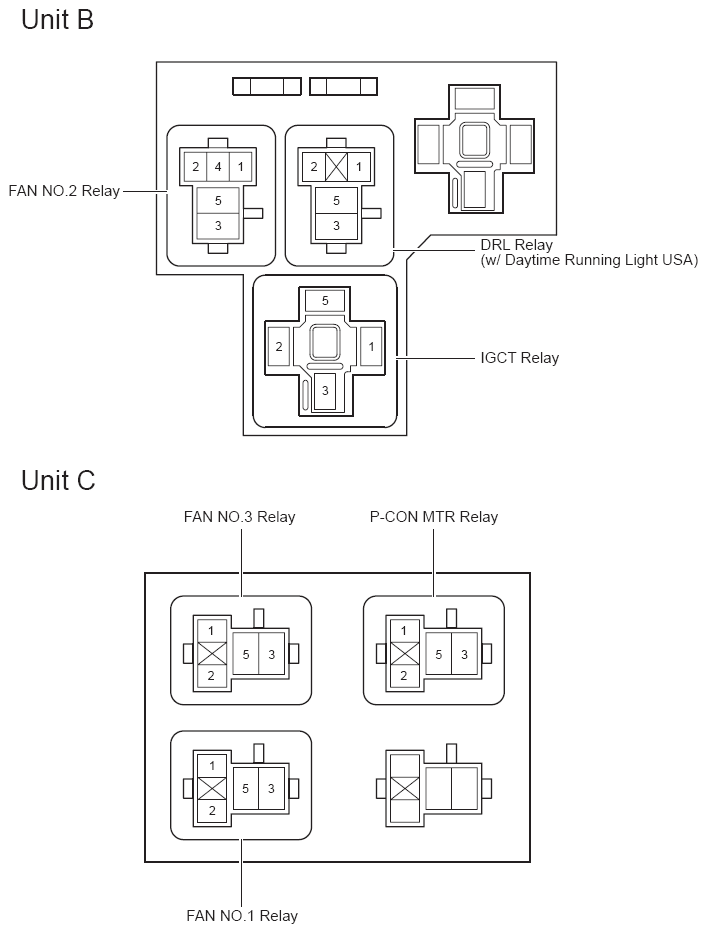

Fig 1: Engine Room R/B And J/B Assembly Relay Terminals (Unit B & C)
G09099248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Engine Room R/B And J/B (Unit B & C) Relay Identification

RELAY DESCRIPTION
Fan No. 2 Relay
DRL Relay (w/ Daytime Running Light USA)
IGCT Relay
Fan No. 3 Relay
P-CON MTR Relay
Fan No. 1 Relay
Fig 2: Engine Room R/B And J/B Assembly Relay Terminals (Unit F)
G09099249Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Engine Room R/B And J/B (Unit F) Relay Identification

RELAY DESCRIPTION
DIM Relay
DRL Relay
