OEM Connector End Views (Plug-In)
>>
Connector List
>>
Connector End View (AL7)
Connector End View (AL7)

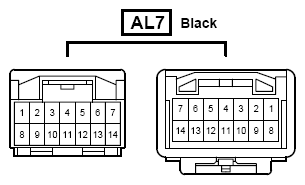

Fig 1: Engine Room Main Wire And Instrument Panel Wire (Instrument Panel Reinforcement) Connector End View (AL7)
