Door Control Switch: Components: Illustration

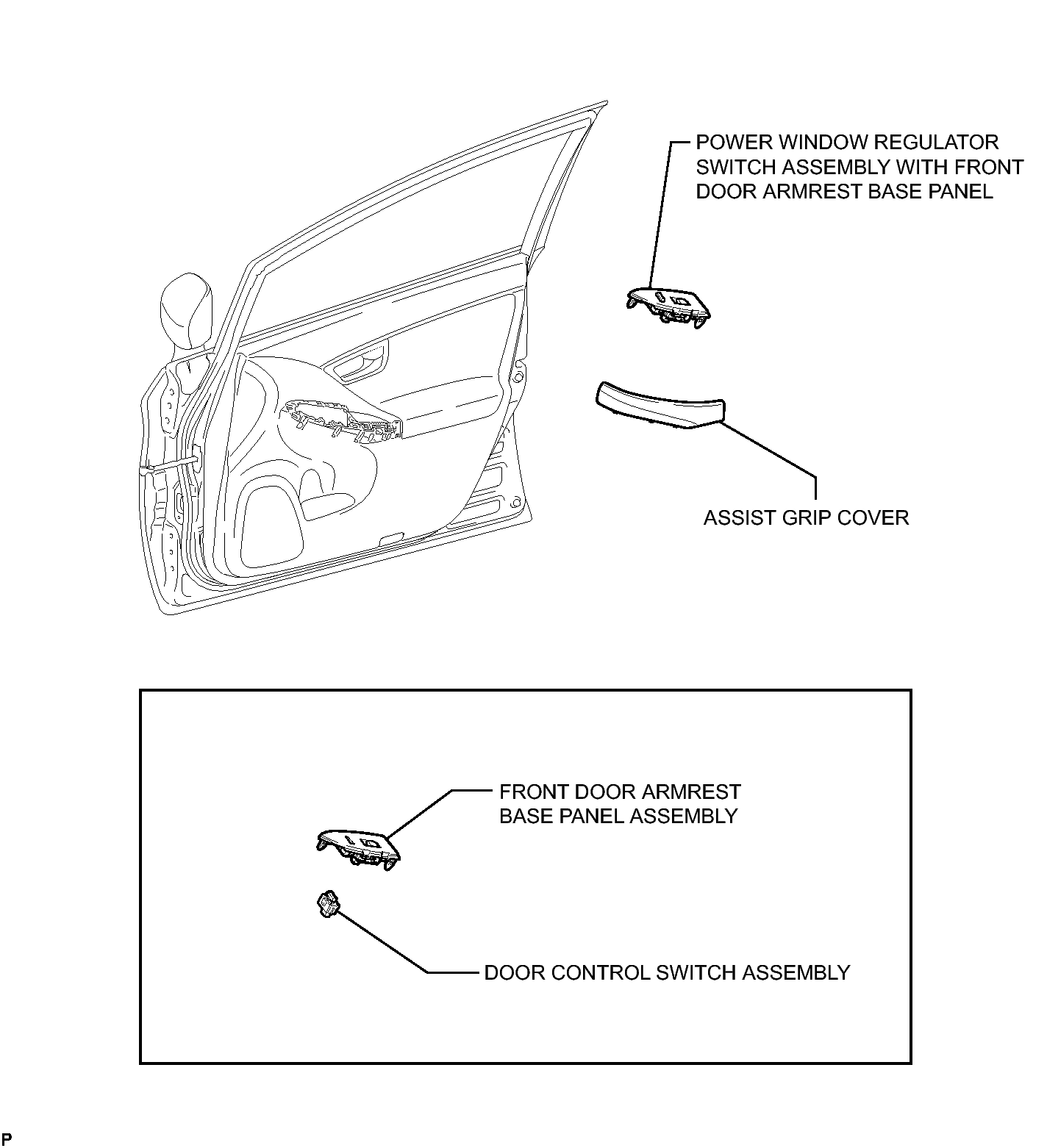

Fig 1: Identifying Door Control Switch Replacement Components

GTY230441

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
