DTC B27A1: Open in Driver Side Electrical Antenna Circuit: Wiring Diagram

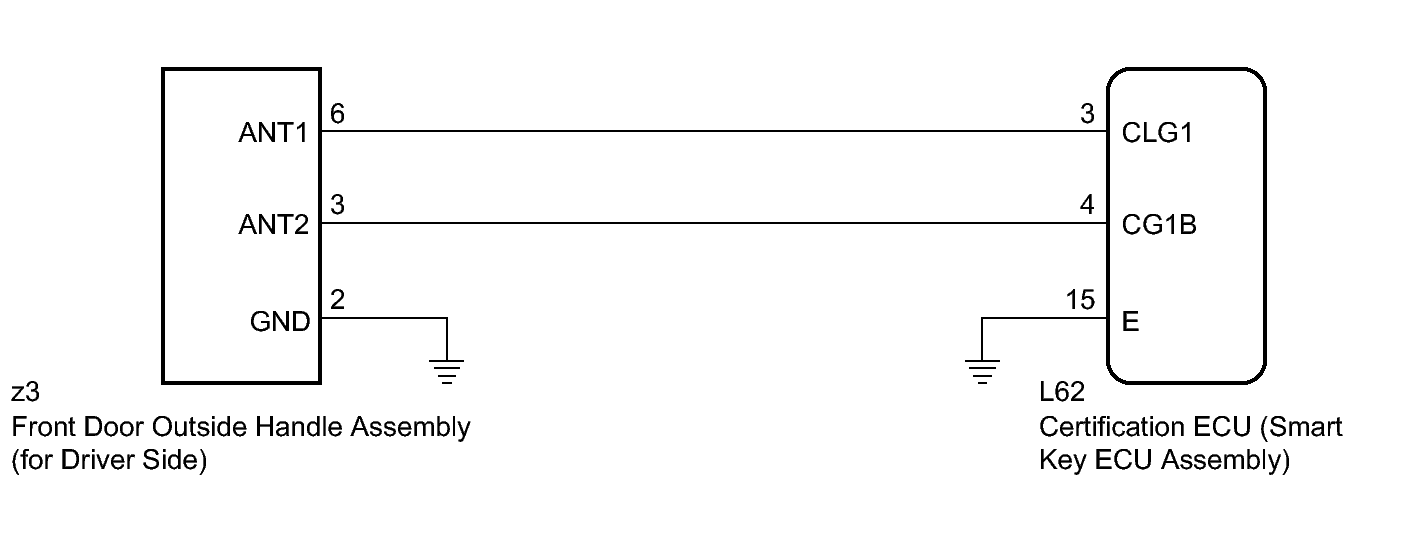

Fig 1: Driver Side Electrical Antenna Circuit Wiring Diagram

GTY232726

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
