Headlight Cleaner Motor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL HEADLIGHT CLEANER MOTOR AND PUMP ASSEMBLY
1. Install the headlight cleaner motor and pump assembly.

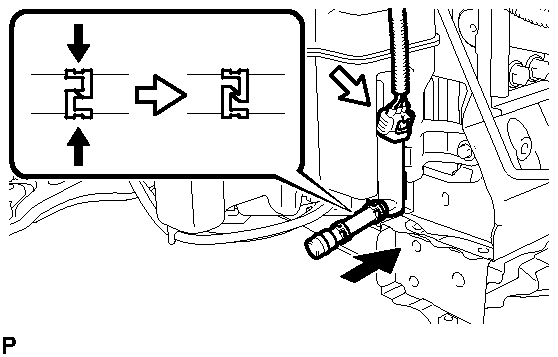

  Fig 1: Installing Headlight Cleaner Motor & Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the headlight cleaner hose to the headlight cleaner motor and pump assembly with the clip as shown in the illustration.
3. Connect the connector.
INSTALL FRONT BUMPER ASSEMBLY
Refer to INSTALLATION
