Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 2)
GTY231161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Pump Replacement Components (2 Of 4)
GTY290529Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

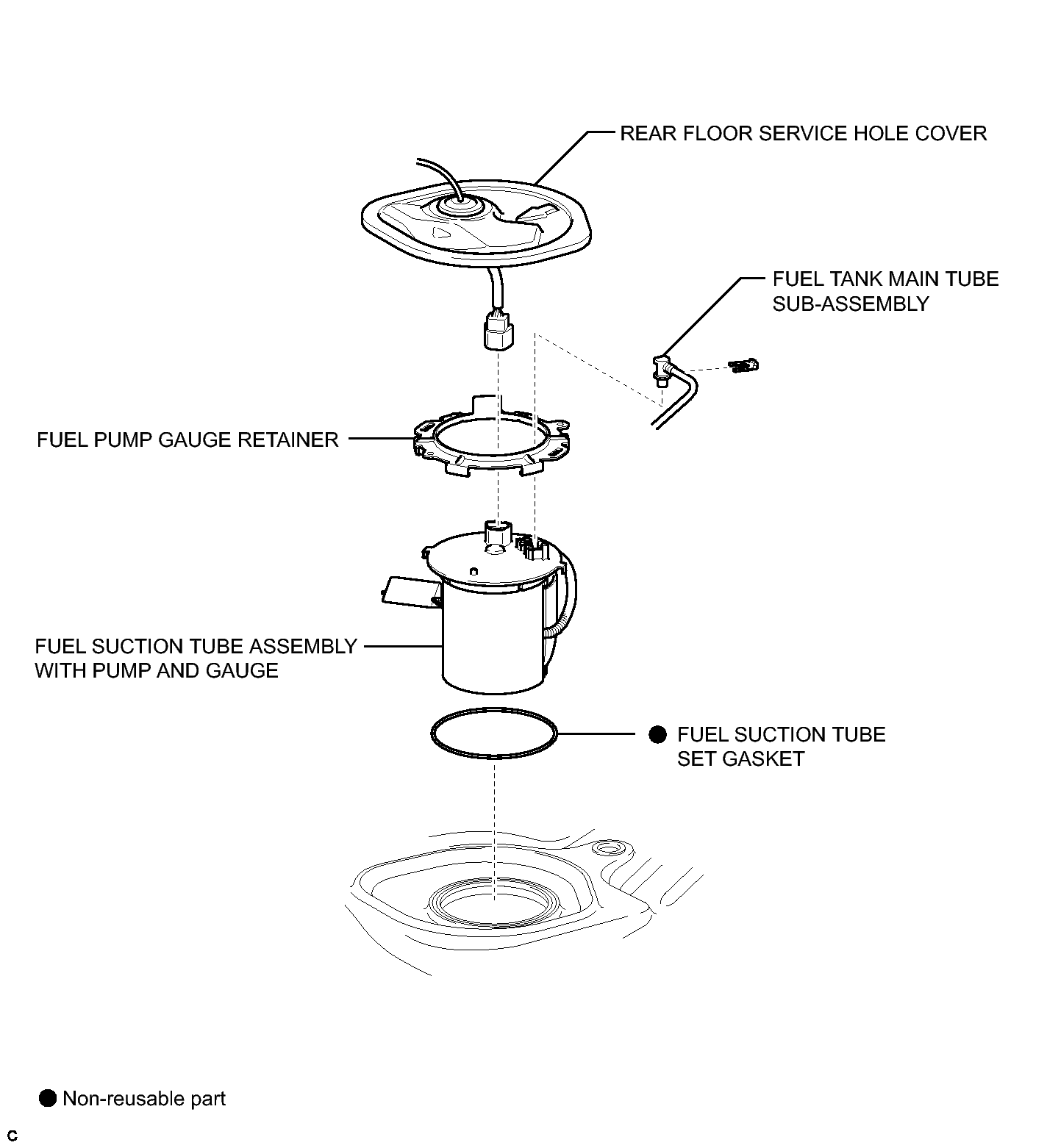

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 4)
GTY375348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

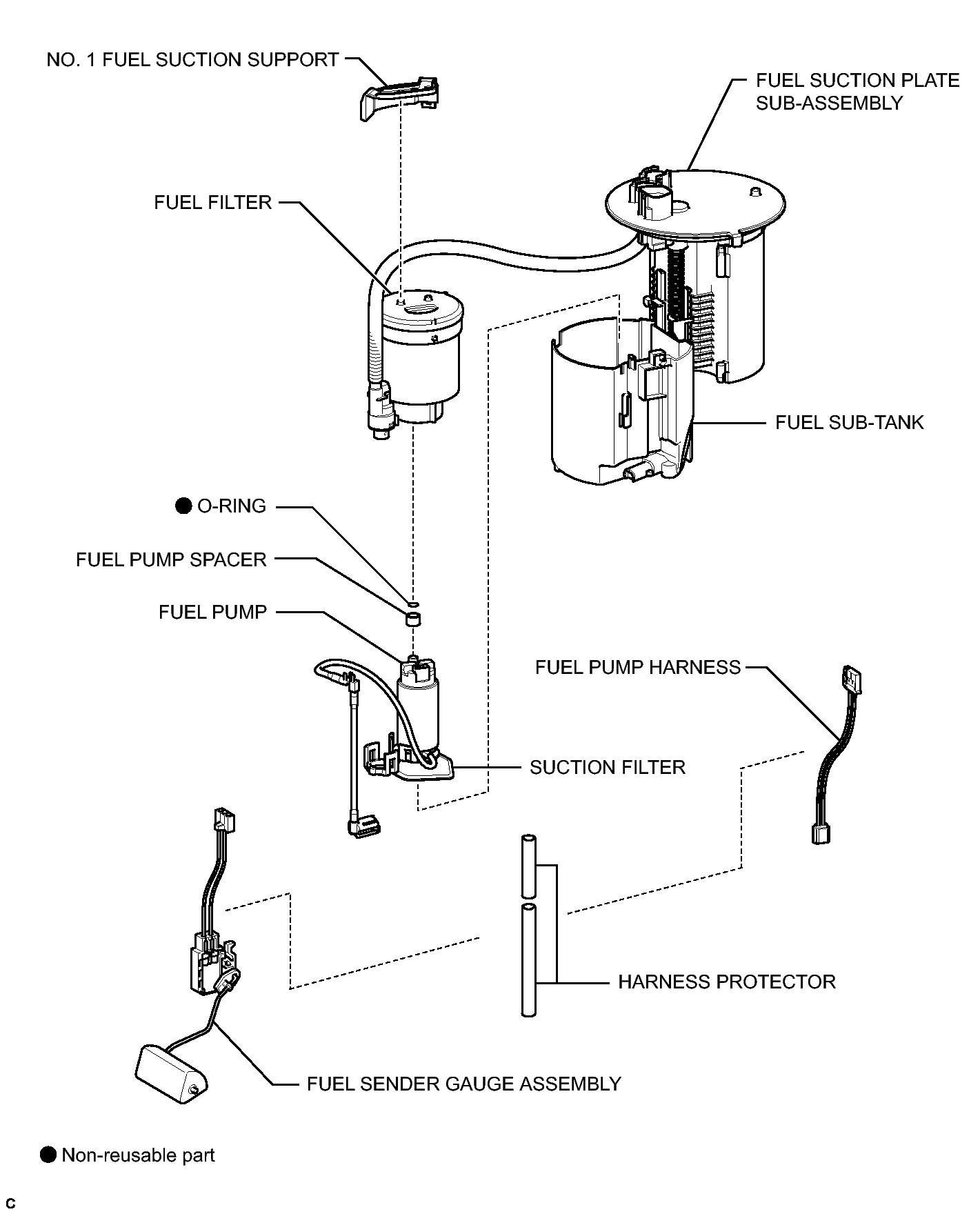

Fig 1: Identifying Fuel Pump Replacement Components (4 Of 4)
GTY371319Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
