Ambient Temperature Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.
  1. INSTALL AMBIENT TEMPERATURE SENSOR
    1. Engage the clamp to install the ambient temperature sensor.

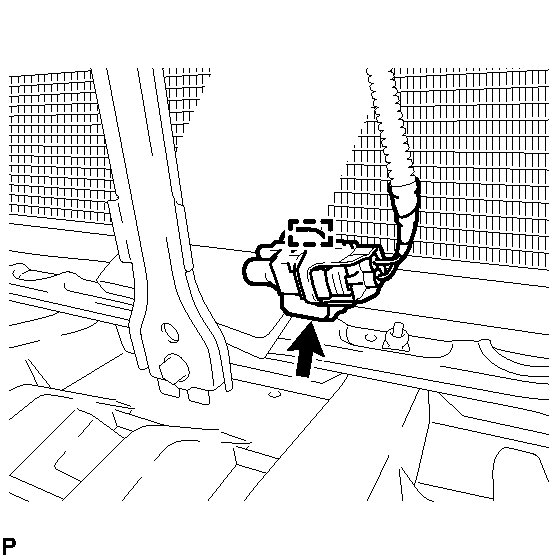

      Fig 1: Identifying Connector
      GTY223074Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL FRONT BUMPER ASSEMBLY

    Refer to INSTALLATION
