Fuel Pump: Components: Illustration

Fig 1: Identifying Fuel Pump Replacement Components (1 Of 4)
GTY325790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Fuel Pump Replacement Components (2 Of 4)
GTY342827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


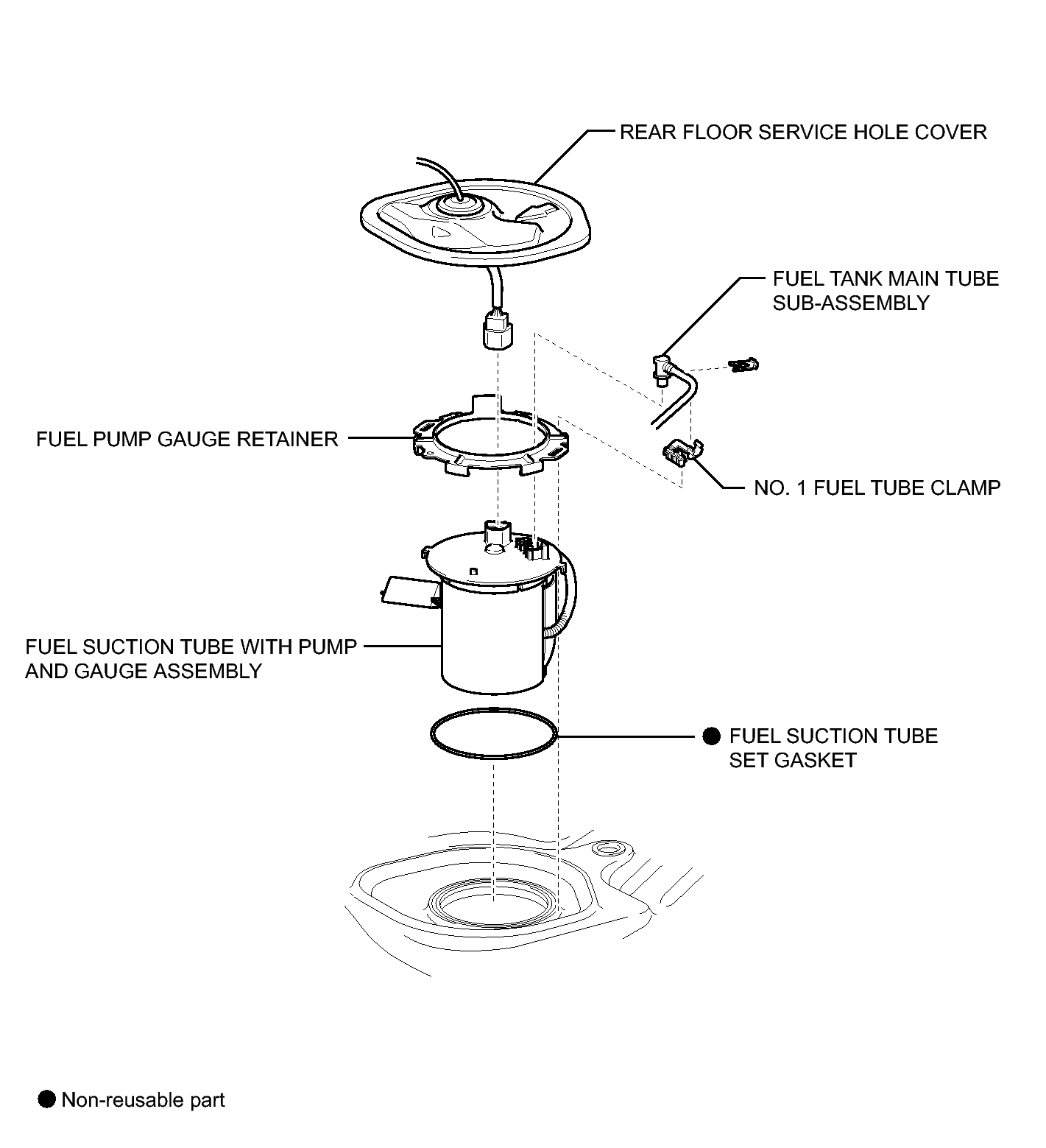

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 4)
GTY324510Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

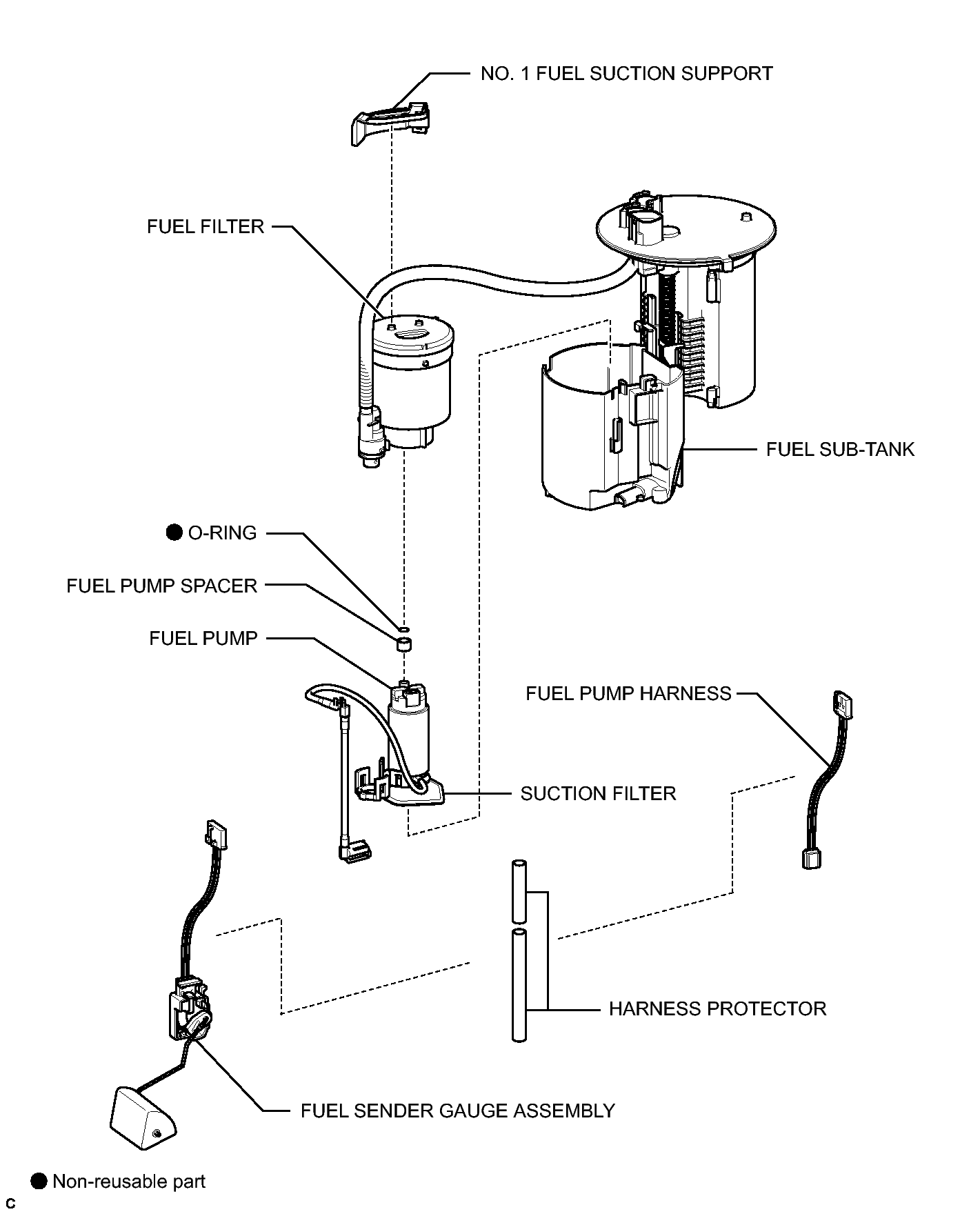

Fig 1: Identifying Fuel Pump Replacement Components (4 Of 4)
GTY334002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
