On-Vehicle Inspection

  1. INSPECT INTAKE SYSTEM
    1. Check that there are no vacuum leaks at the points shown in the illustration.

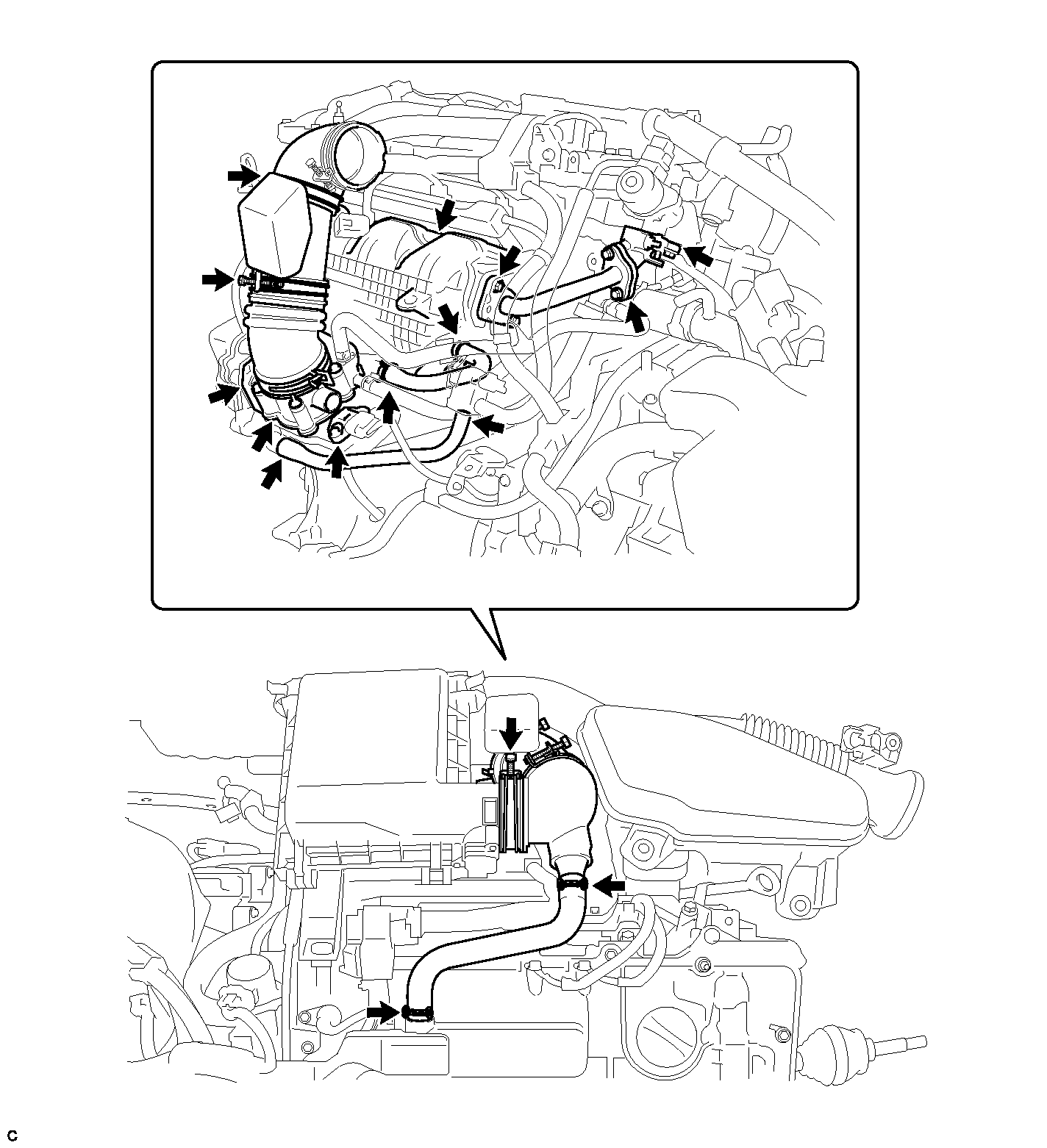

      Fig 1: Inspecting Intake System
      GTY329271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
