Illumination and Taillight: Notes

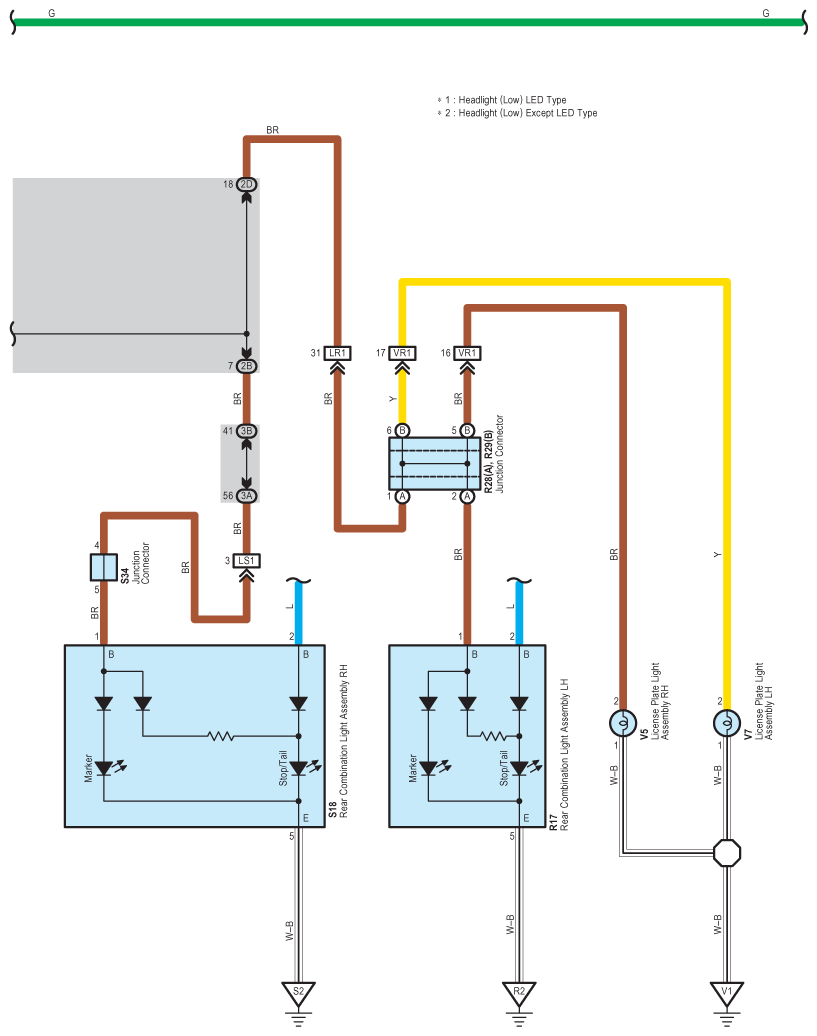

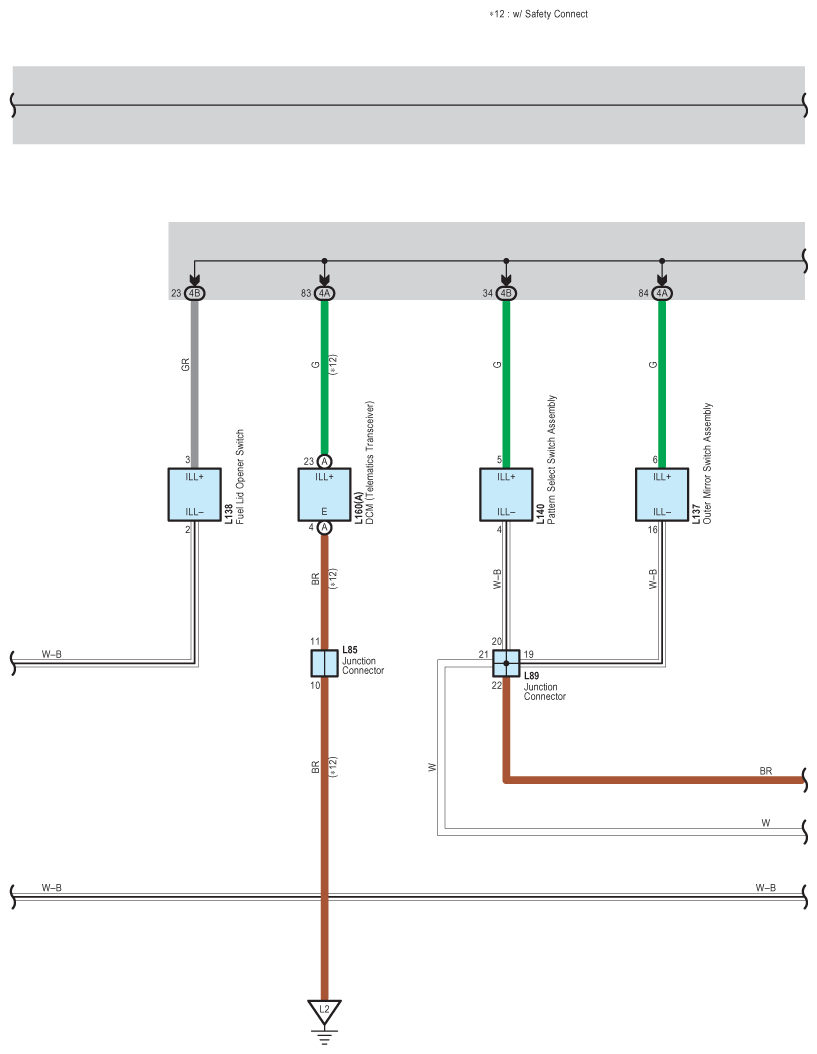

Fig 1: Illumination And Taillight System Wiring Diagram (1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

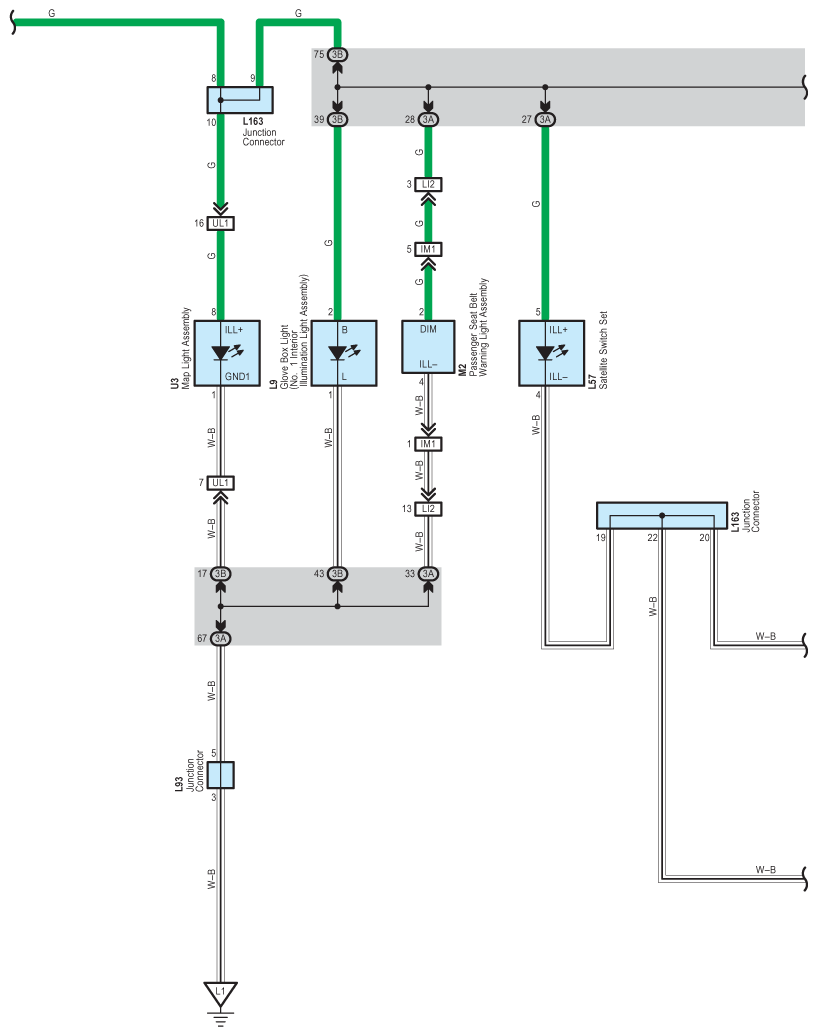

Fig 2: Illumination And Taillight System Wiring Diagram (2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

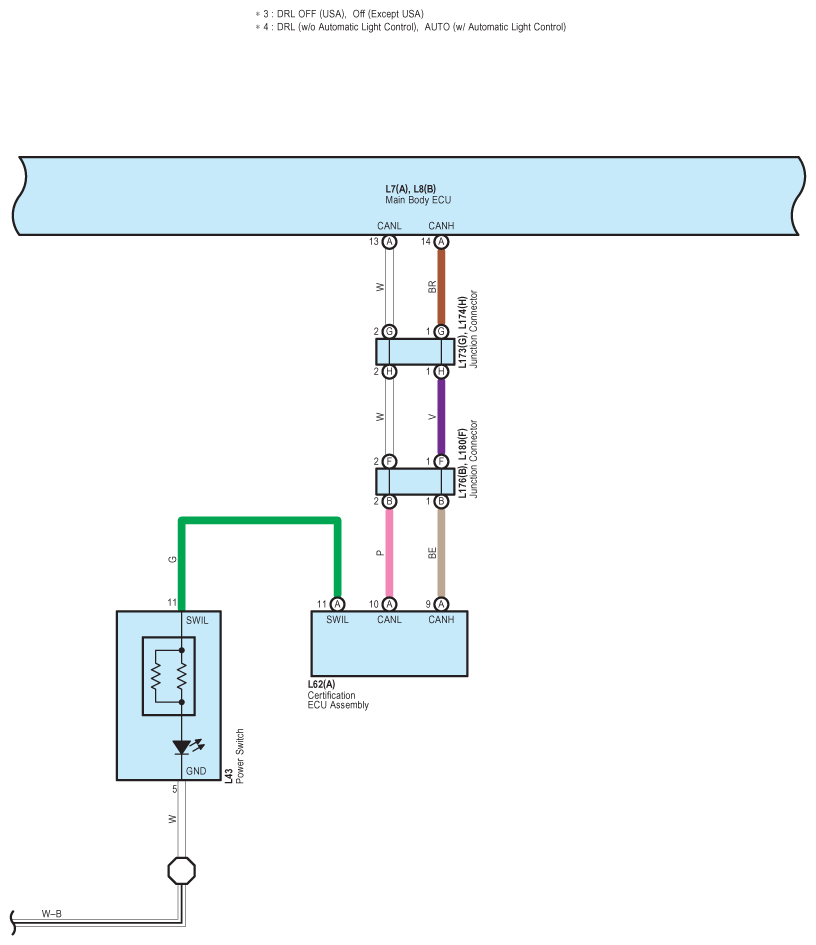

Fig 3: Illumination And Taillight System Wiring Diagram (3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

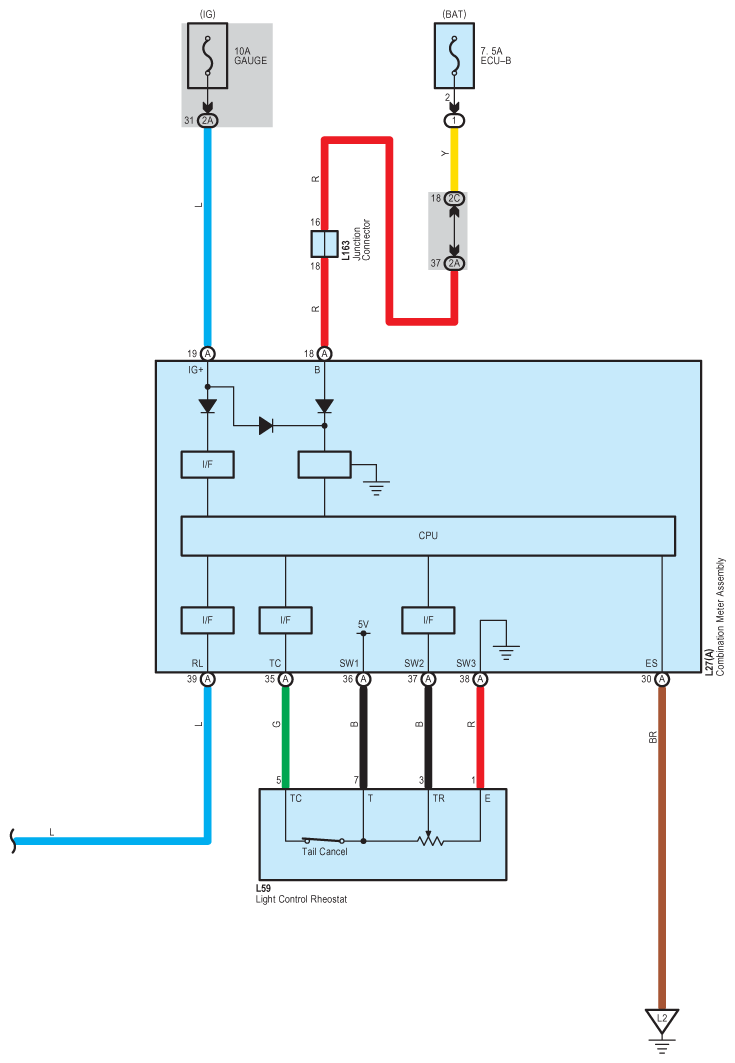

Fig 4: Illumination And Taillight System Wiring Diagram (4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

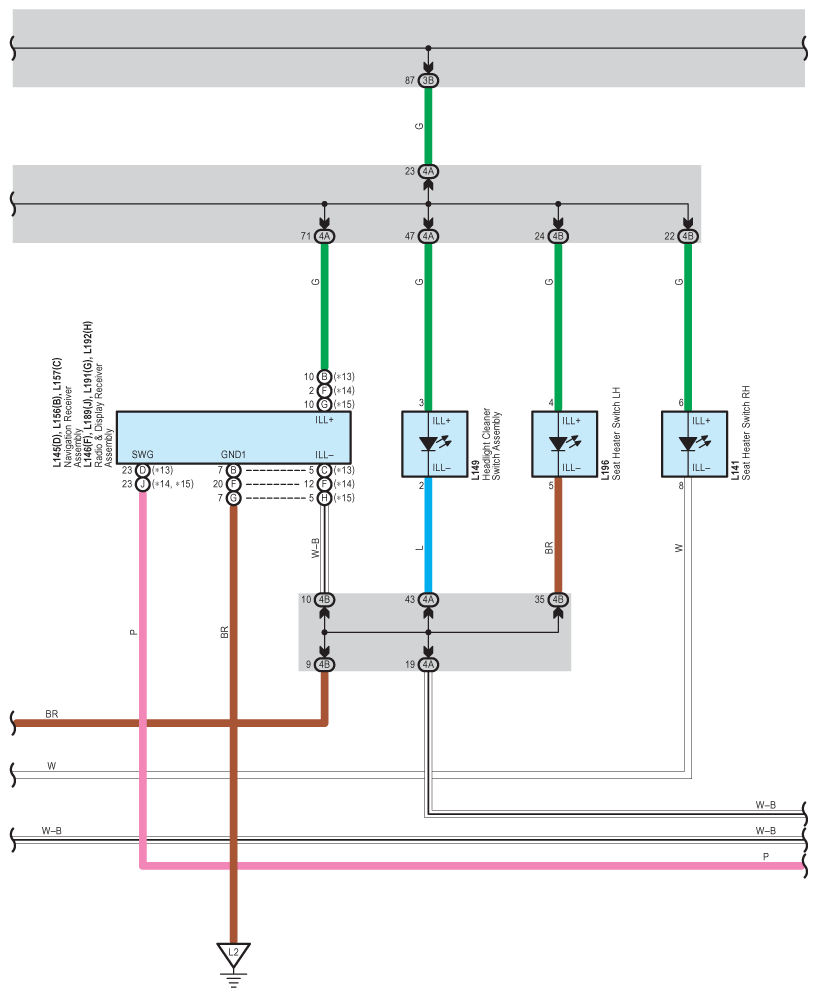

Fig 5: Illumination And Taillight System Wiring Diagram (5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

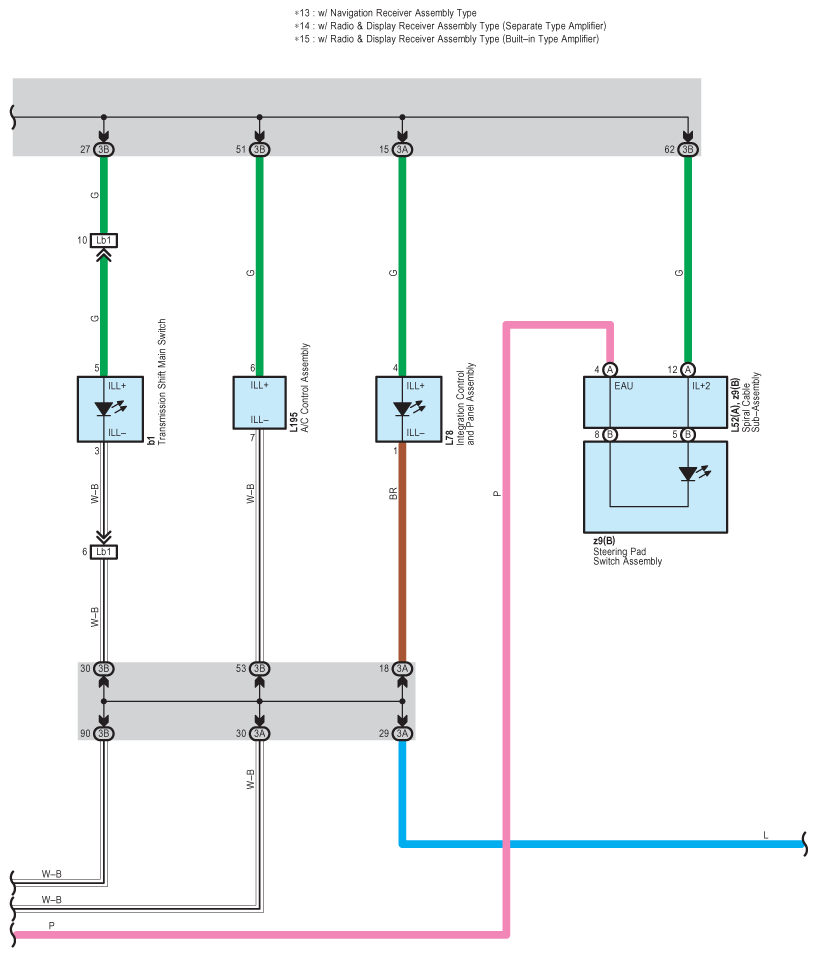

Fig 6: Illumination And Taillight System Wiring Diagram (6 Of 9)

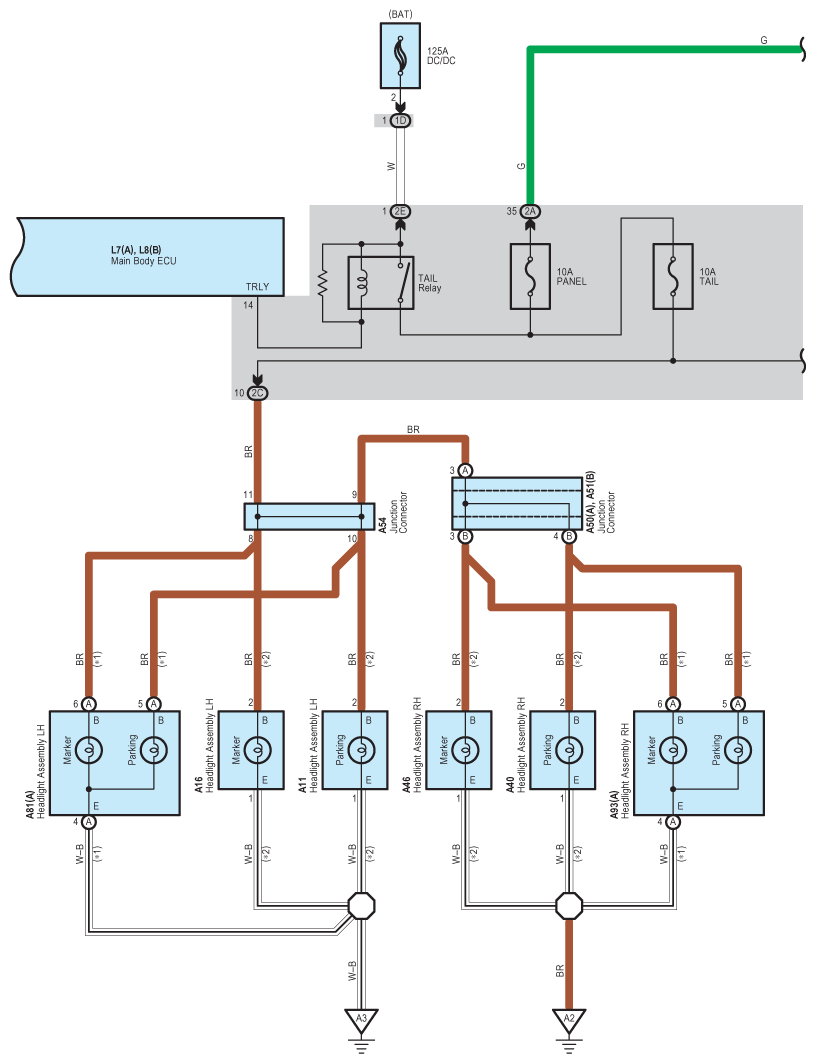

Fig 7: Illumination And Taillight System Wiring Diagram (7 Of 9)

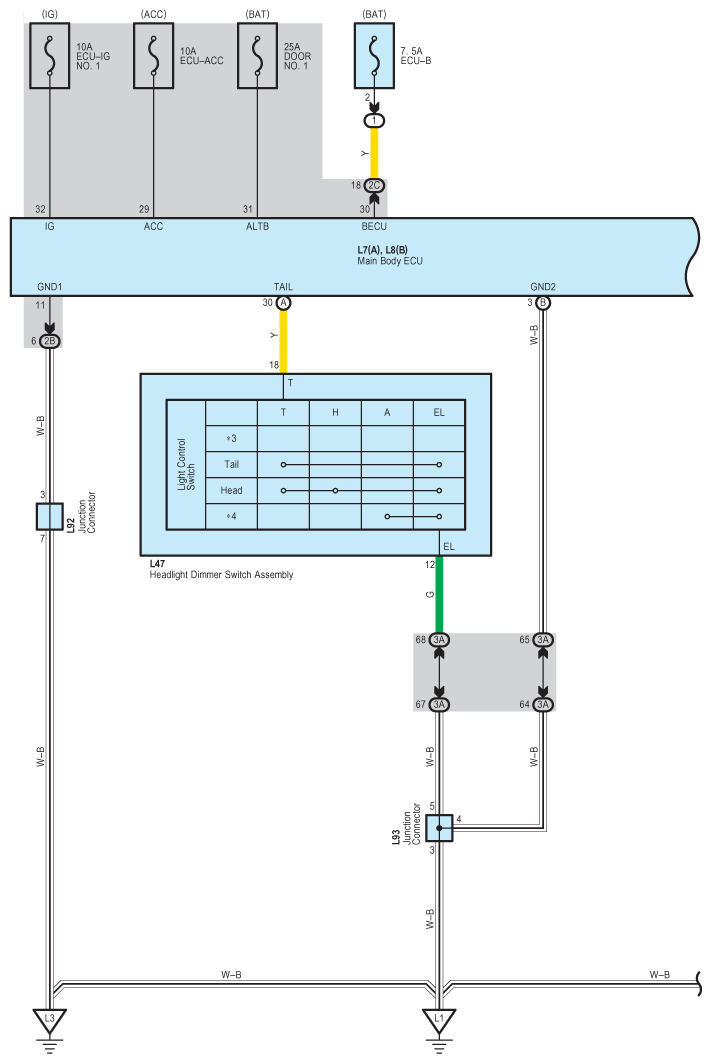

Fig 8: Illumination And Taillight System Wiring Diagram (8 Of 9)

Fig 9: Illumination And Taillight System Wiring Diagram (9 Of 9)
