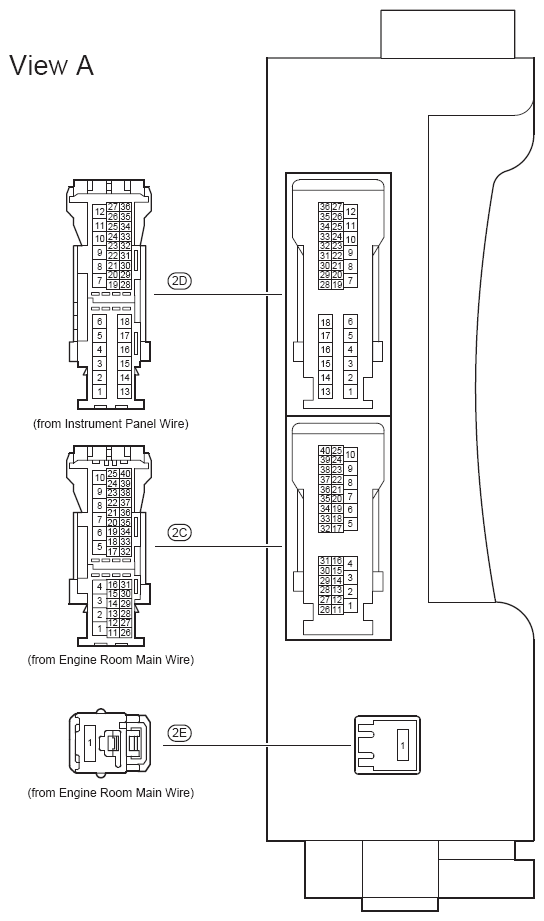

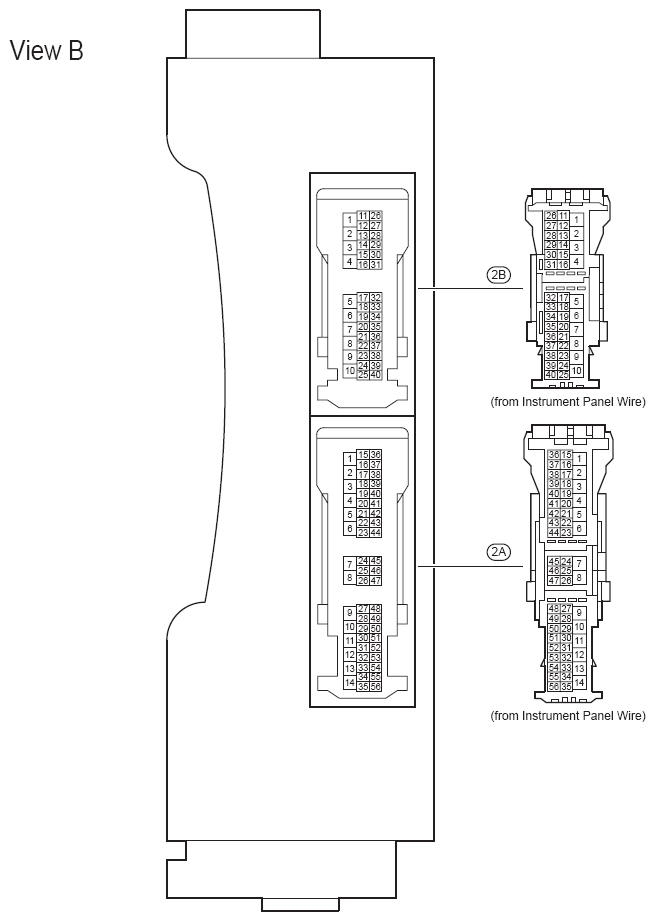

Instrument Panel Junction Block Instrument Panel Reinforcement
Instrument Panel J/B Fuse Identification Legend
| Fuse | System | |
|---|---|---|
| 7.5A | FR FOG | Fog Light |
| 7.5A | MET | Combination Meter |
| Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener | ||
| 7.5A | OBD | DLC3 |
| 10A | A/C | Air Conditioning |
| Mirror Heater and Rear Window Defogger | ||
| Remote Air Conditioning System | ||
| 10A | ECU-ACC | ABS, TRAC and VSC |
| Air Conditioning | ||
| Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier) | ||
| Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Door Lock Control | ||
| Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Power Window | ||
| Remote Air Conditioning System | ||
| Remote Control Mirror | ||
| Safety Connect | ||
| 10A | ECU-IG NO. 1 | ABS, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Cooling Fan | ||
| Door Lock Control | ||
| Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Power Window | ||
| Remote Air Conditioning System | ||
| Vehicle Proximity Notification System | ||
| 10A | ECU-IG NO. 2 | ABS, TRAC and VSC |
| Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier) | ||
| Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier) | ||
| Automatic Glare-Resistant EC Mirror and Garage Door Opener | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener | ||
| EPS | ||
| Headlight Cleaner | ||
| Pre-Collision System | ||
| Tire Pressure Warning System | ||
| Turn Signal and Hazard Warning Light | ||
| 10A | GAUGE | ABS, TRAC and VSC |
| Air Conditioning | ||
| Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier) | ||
| Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier) | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Back-Up Light | ||
| Combination Meter | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener | ||
| EPS | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Horn | ||
| Illumination and Taillight | ||
| Mirror Heater and Rear Window Defogger | ||
| Plug-in Hybrid System and Shift Control System | ||
| Pre-Collision System | ||
| Safety Connect | ||
| Seat Belt Warning | ||
| SRS | ||
| Tire Pressure Warning System | ||
| Vehicle Proximity Notification System | ||
| 10A | IGN | ABS, TRAC and VSC |
| Air Conditioning | ||
| Audio System (Built-in Type Amplifier), Navigation System (Built-in Type Amplifier) and Parking Assist (Rear View Monitor Built-in Type Amplifier) | ||
| Audio System (Separate Type Amplifier), Navigation System (Separate Type Amplifier) and Parking Assist (Rear View Monitor Separate Type Amplifier) | ||
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener | ||
| Plug-in Hybrid System and Shift Control System | ||
| Pre-Collision System | ||
| Safety Connect | ||
| Seat Belt Warning | ||
| SRS | ||
| 10A | PANEL | Illumination and Taillight |
| 10A | SEAT HTR FL | Seat Heater |
| 10A | SEAT HTR FR | Seat Heater |
| 10A | STOP | ABS, TRAC and VSC |
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener | ||
| Plug-in Hybrid System and Shift Control System | ||
| Pre-Collision System | ||
| Remote Air Conditioning System | ||
| Stop Light | ||
| Vehicle Proximity Notification System | ||
| 10A | TAIL | Fog Light |
| Illumination and Taillight | ||
| 15A | CIG | Power Outlet |
| 15A | PWR | OUTLET Power Outlet |
| 15A | WASHER | Front Wiper and Washer |
| 20A | RR WIP | Rear Wiper and Washer |
| 25A | D FR DOOR | Door Lock Control |
| Power Window | ||
| 25A | DOOR NO. 1 | ABS, TRAC and VSC |
| Air Conditioning | ||
| Automatic Light Control and Light Auto Turn Off System | ||
| Back Door Opener, Hybrid Vehicle Immobilizer System, Smart Key System, Starting and Wireless Door Lock Control | ||
| Combination Meter | ||
| Door Lock Control | ||
| Fog Light | ||
| Headlight | ||
| Headlight Beam Level Control | ||
| Headlight Cleaner | ||
| Illumination and Taillight | ||
| Interior Light | ||
| Power Window | ||
| Remote Air Conditioning System | ||
| 25A | DOOR RL | Power Window |
| 25A | DOOR RR | Power Window |
| 25A | P FR DOOR | Power Window |
| 30A | PSB | Pre-Collision System |
| 30A | PWR SEAT FL | Power Seat |
| 30A | WIP | Cruise Control, Dynamic Radar Cruise Control, Engine Control and Fuel Lid Opener |
| Front Wiper and Washer | ||
