Fuel Pump: Components: Illustration

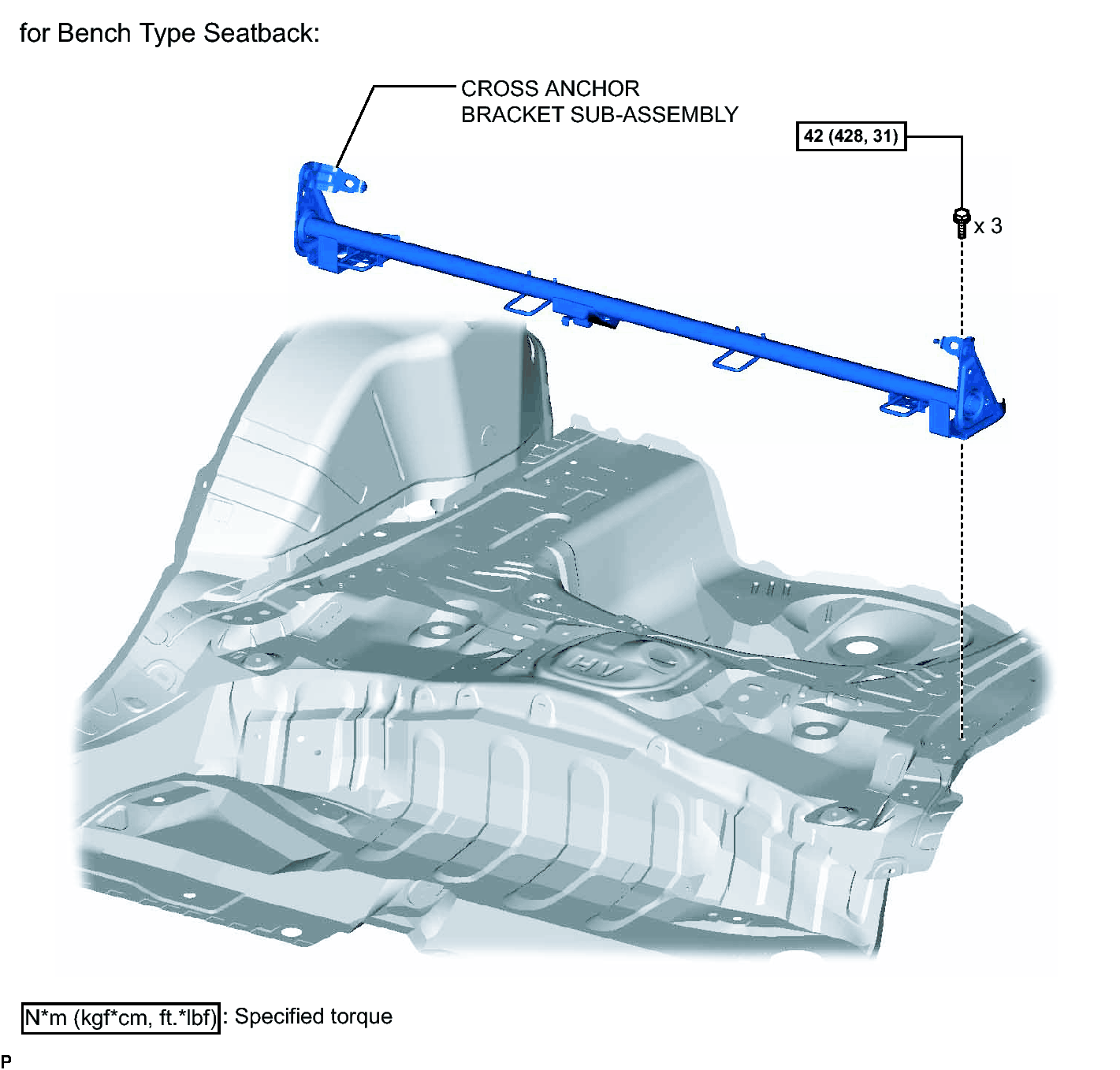

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (1 Of 4)
GTY341597Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

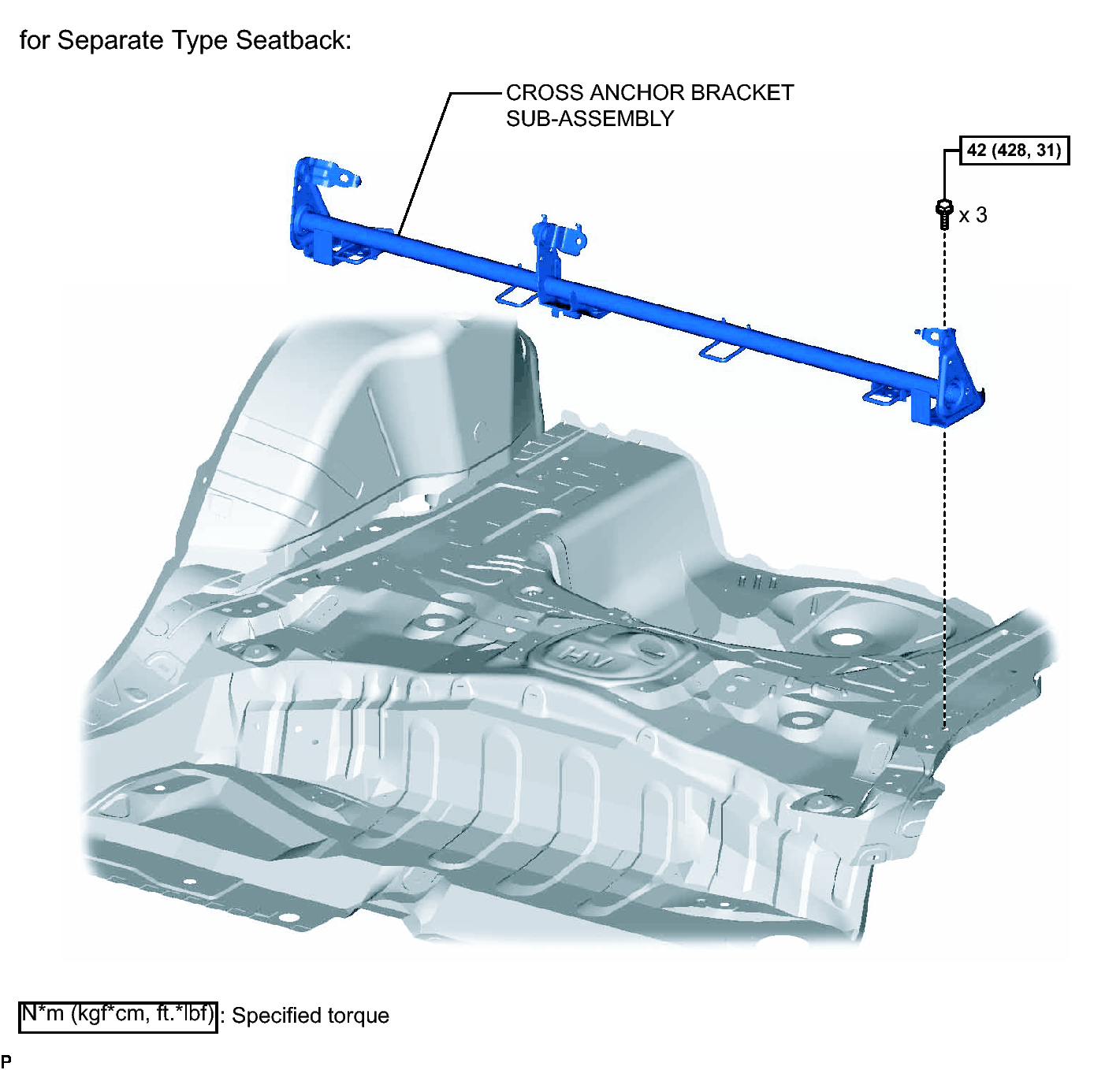

Fig 1: Identifying Fuel Pump Replacement Components With Torque Specifications (2 Of 4)
GTY341325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

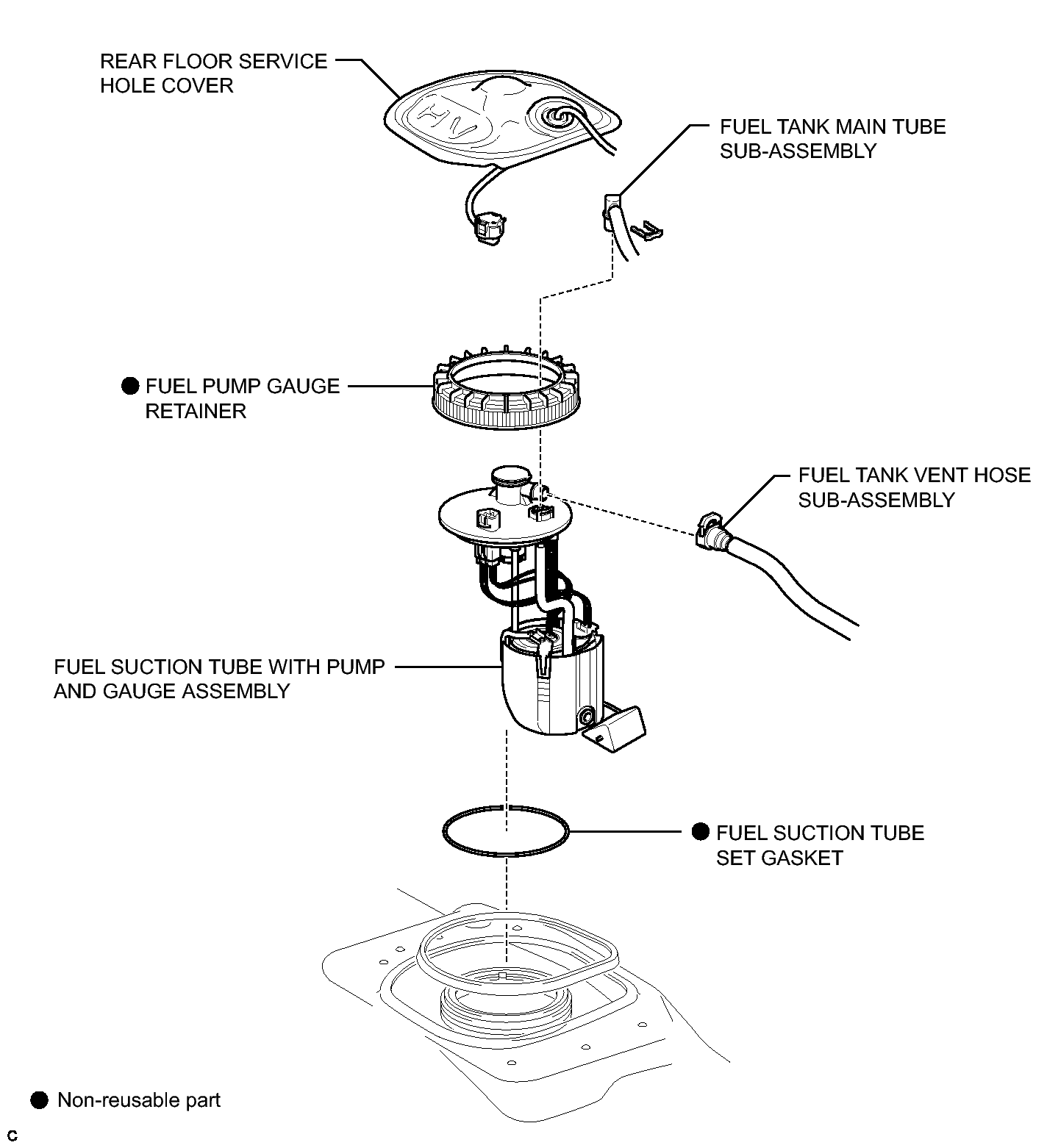

Fig 1: Identifying Fuel Pump Replacement Components (3 Of 4)
GTY338816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

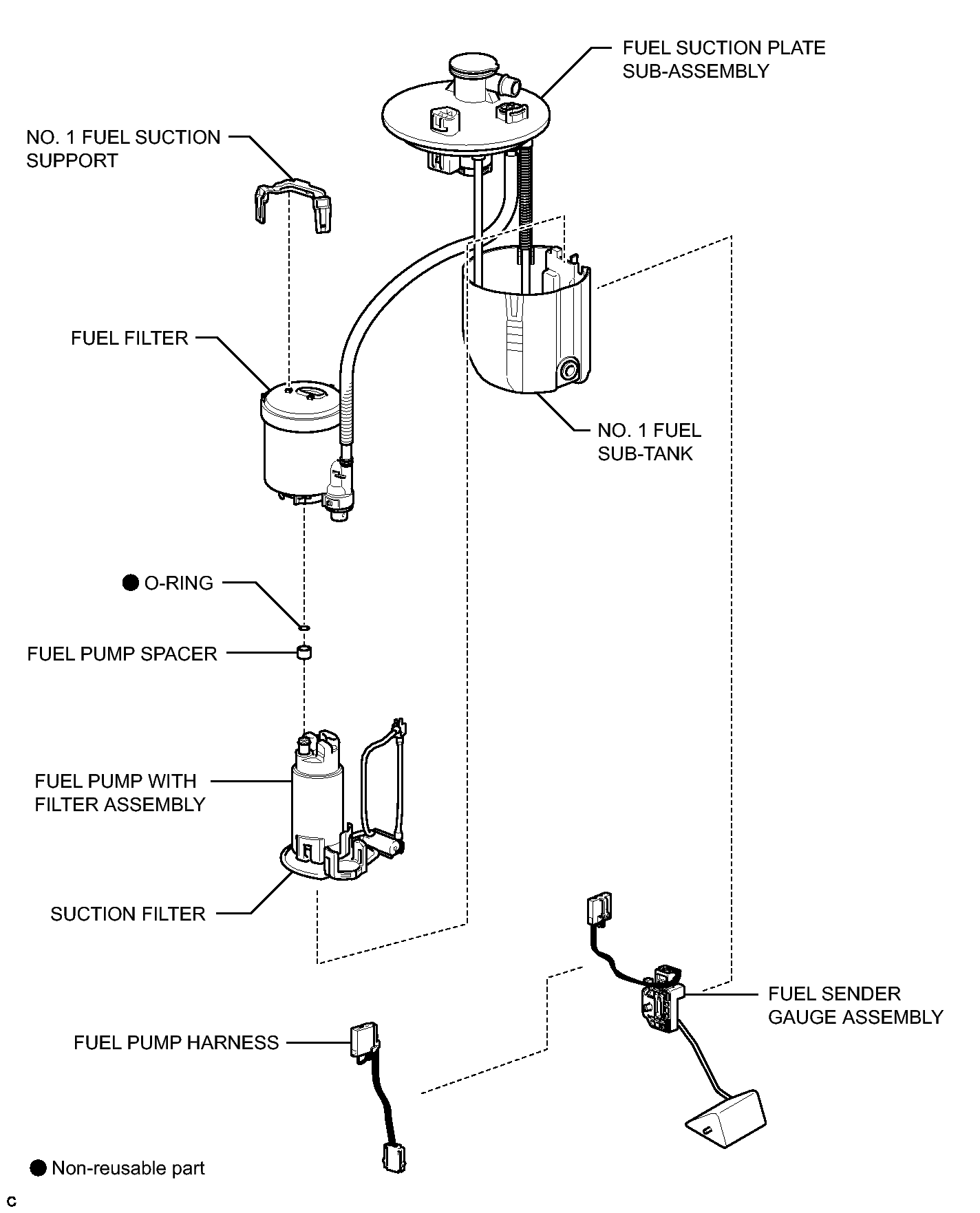

Fig 1: Identifying Fuel Pump Replacement Components (4 Of 4)
GTY329684Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
