Fuel Injector: Components: Illustration

Fig 1: Identifying Fuel Injector Replacement Components (1 Of 3)
GTY332480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


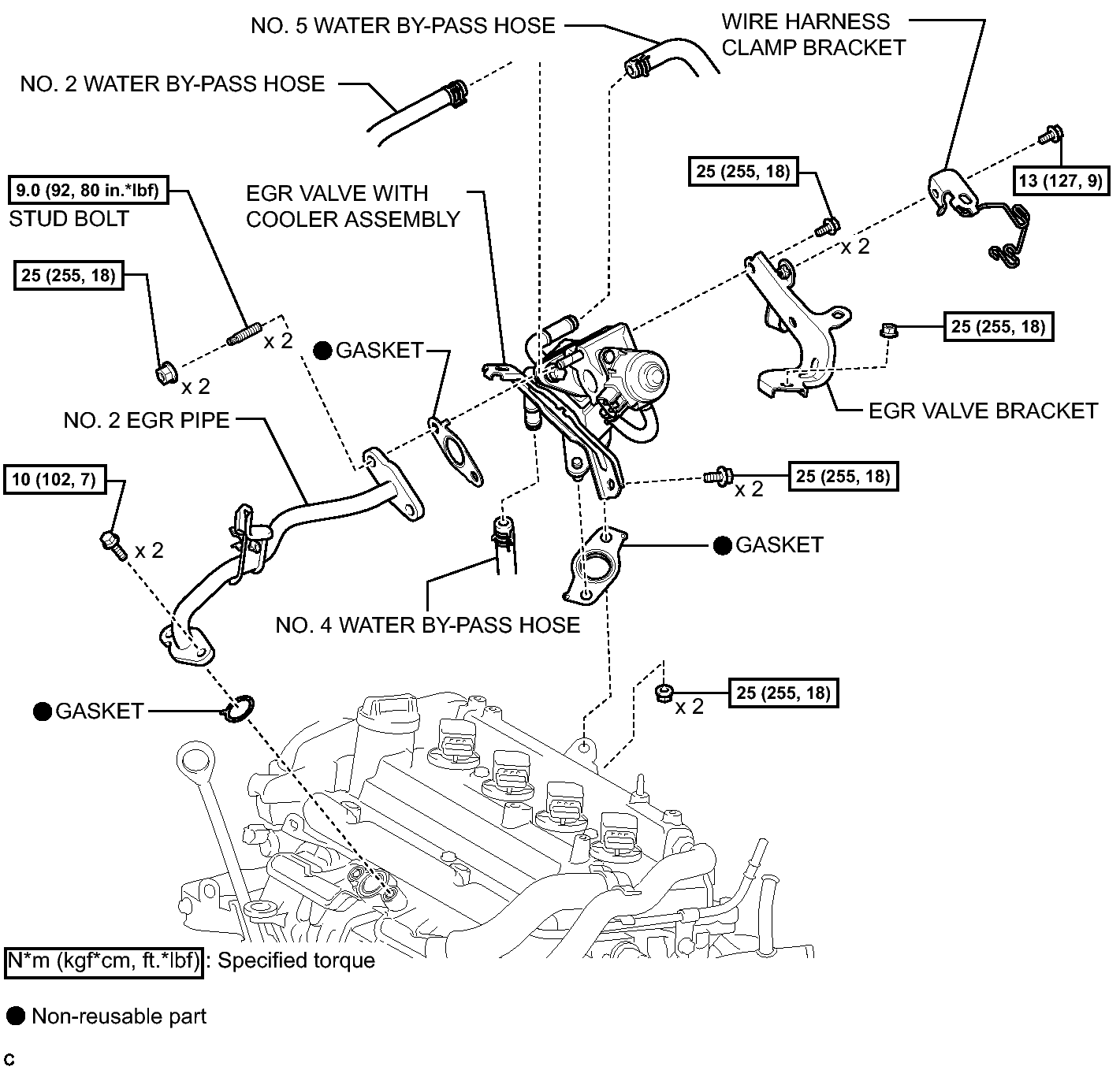

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (2 Of 3)
GTY341657Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

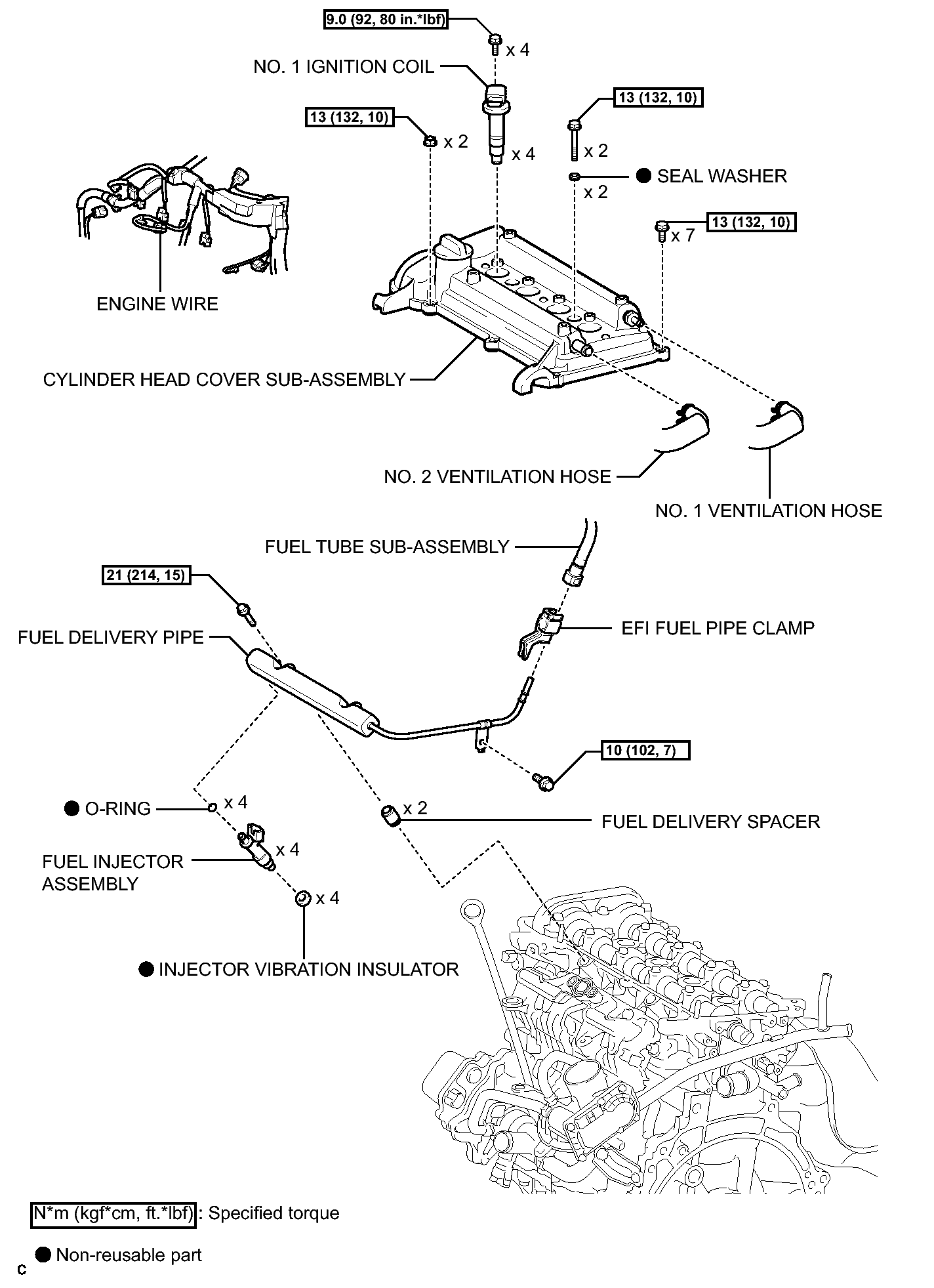

Fig 1: Identifying Fuel Injector Replacement Components With Torque Specifications (3 Of 3)
GTY339707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
