Turn Signal and Hazard Warning Light: Notes

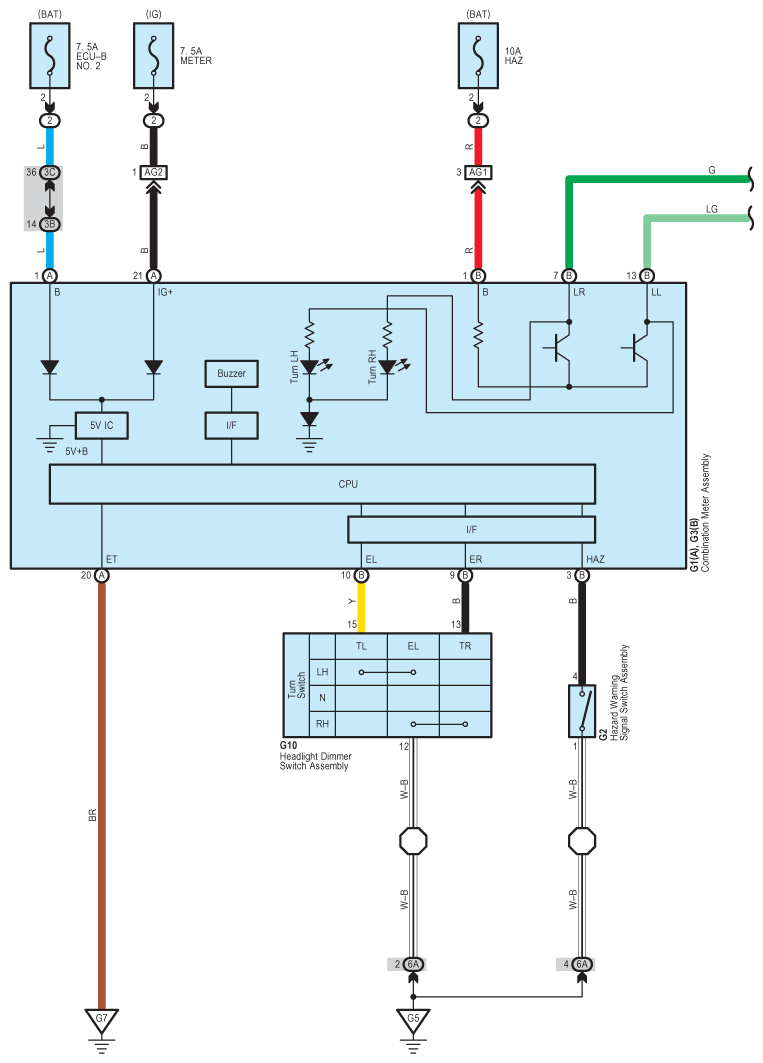

Fig 1: Turning Signal And Hazard Warning Light Wiring Diagram (1 Of 2)
G09101083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

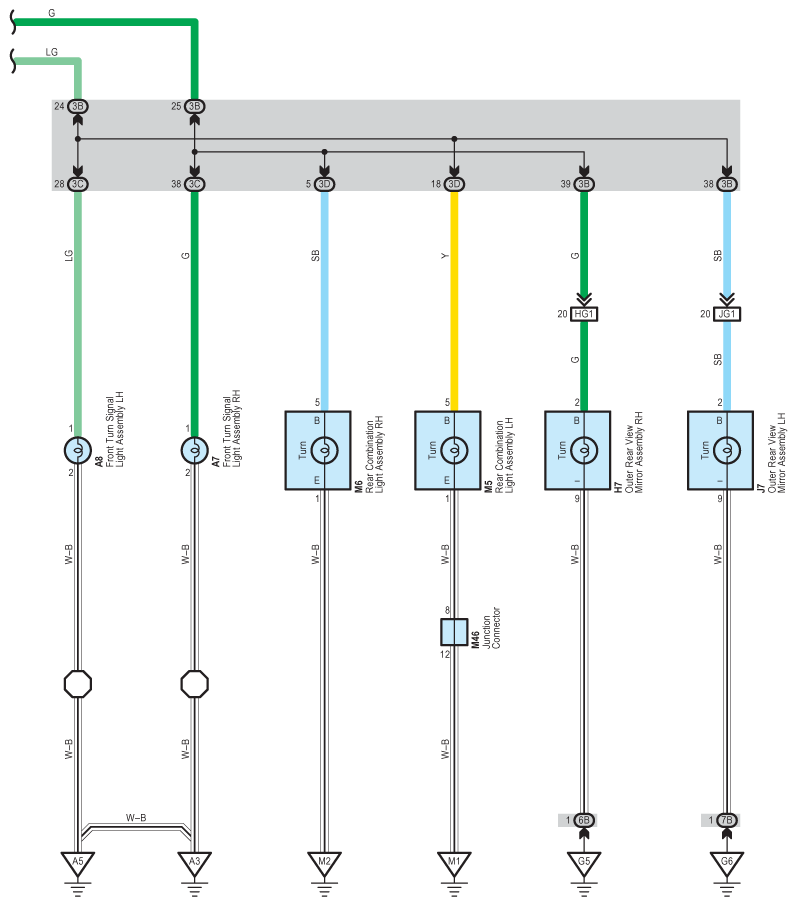

Fig 2: Turning Signal And Hazard Warning Light Wiring Diagram (2 Of 2)
G09101084Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
