Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

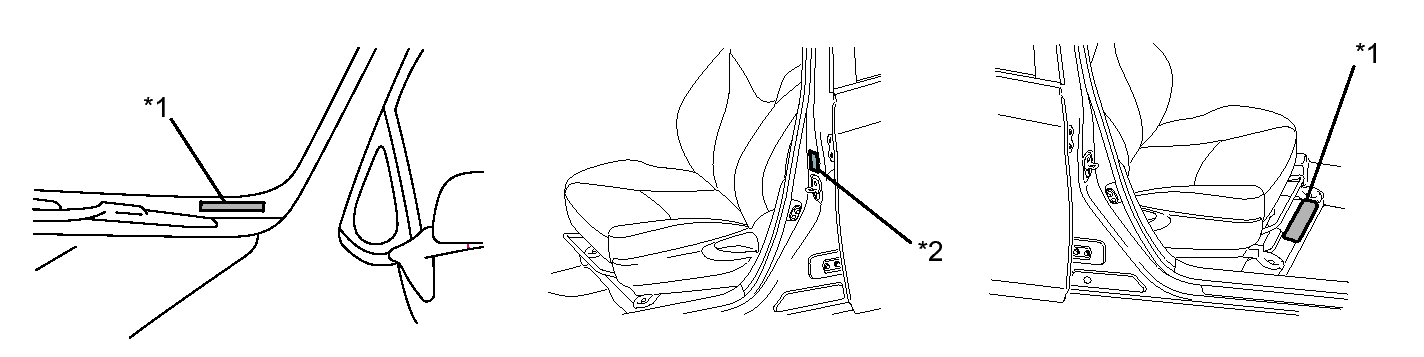

The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustration.

Fig 1: Locating Vehicle Identification Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

Vehicle Identification Number

Certification Label

ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

Fig 2: Locating Engine Serial Number Is Stamped On The Cylinder Block

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*A	1NZ-FXE
*a	Engine Serial Number

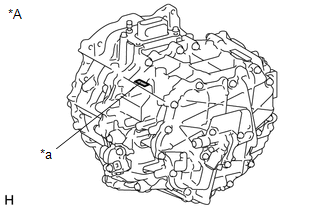

The transaxle code is stamped on the case as shown in the illustration.

Fig 3: Locating Transaxle Code Is Stamped On The Case

TEXT IN ILLUSTRATION

*A	P510 Hybrid Vehicle Transaxle Assembly
*a	Transaxle Code
