Back Door Opener Switch Assembly: Notes

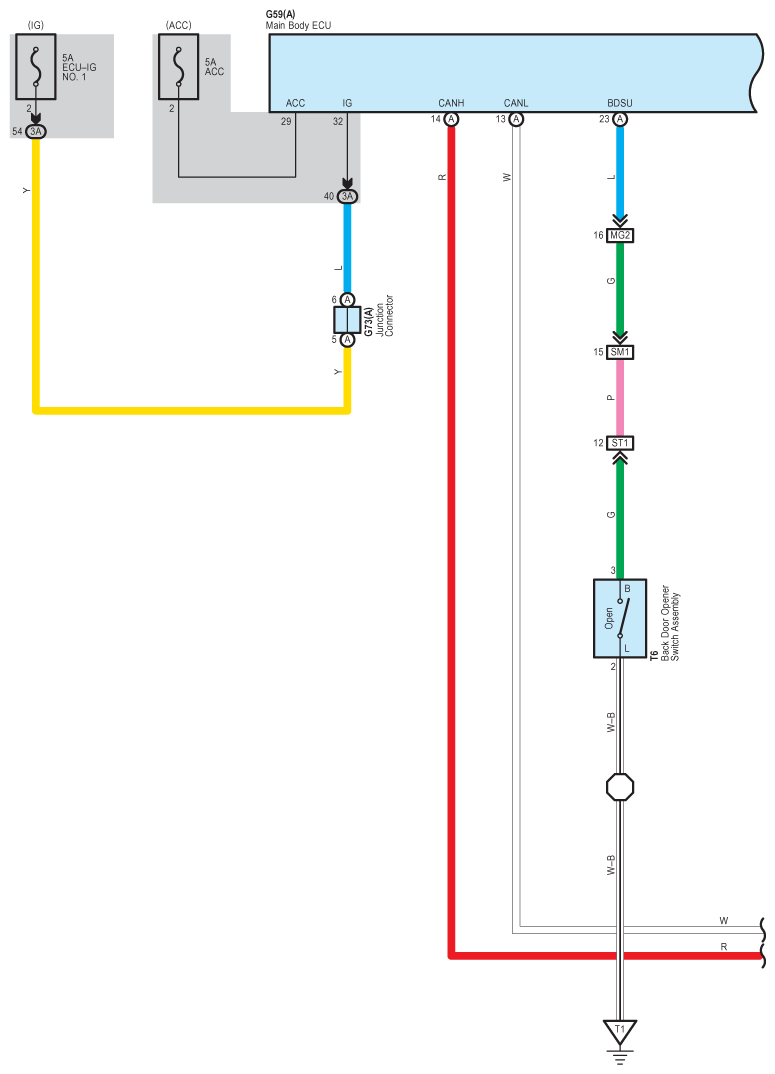

Fig 1: Back Door Opener (w/o Smart Key System) Wiring Diagram (1 Of 3)
G09101118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

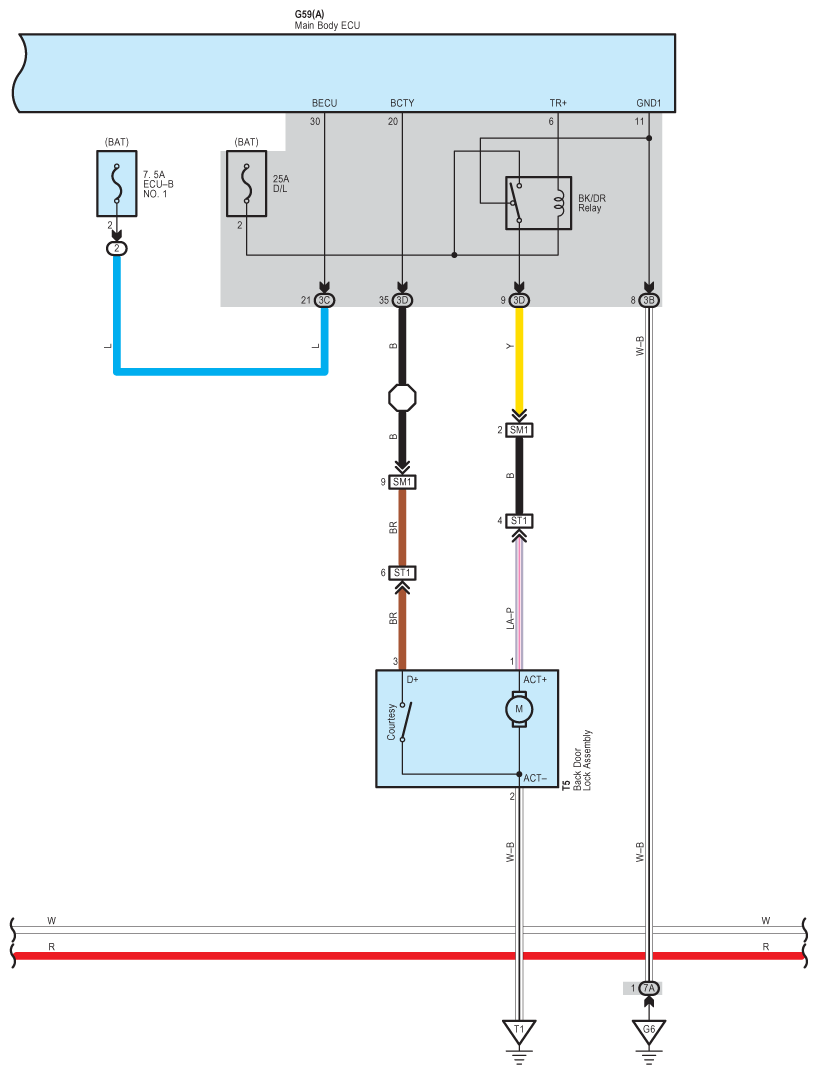

Fig 2: Back Door Opener (w/o Smart Key System) Wiring Diagram (2 Of 3)
G09101119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Back Door Opener (w/o Smart Key System) Wiring Diagram (3 Of 3)
G09101120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
