Valve Body Assembly: Components: Illustration

WARNING: This page is about a different variant/trim than selected.

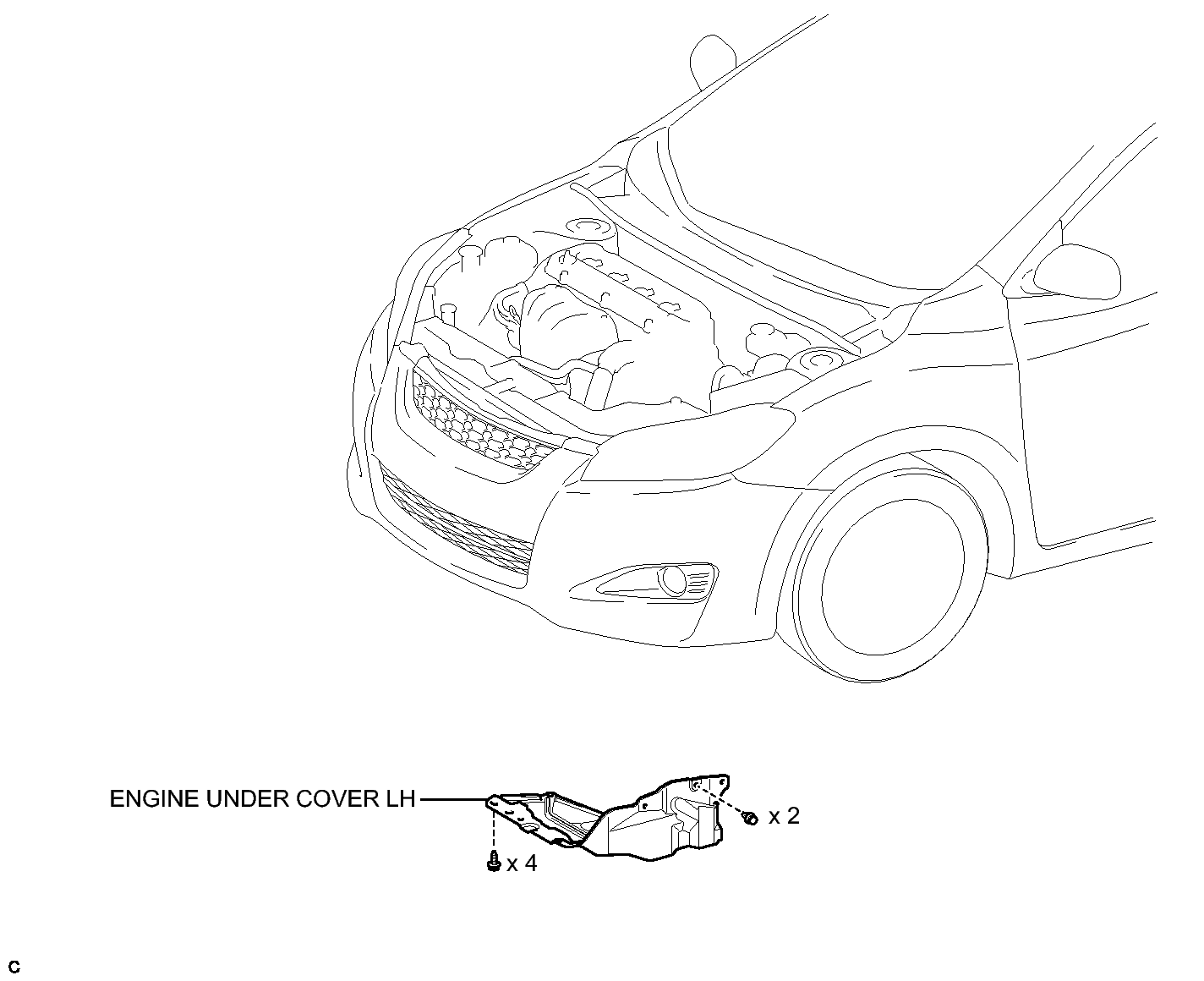

Fig 1: Identifying Valve Body Assembly Replacement Components (1 Of 3)
GTY223935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

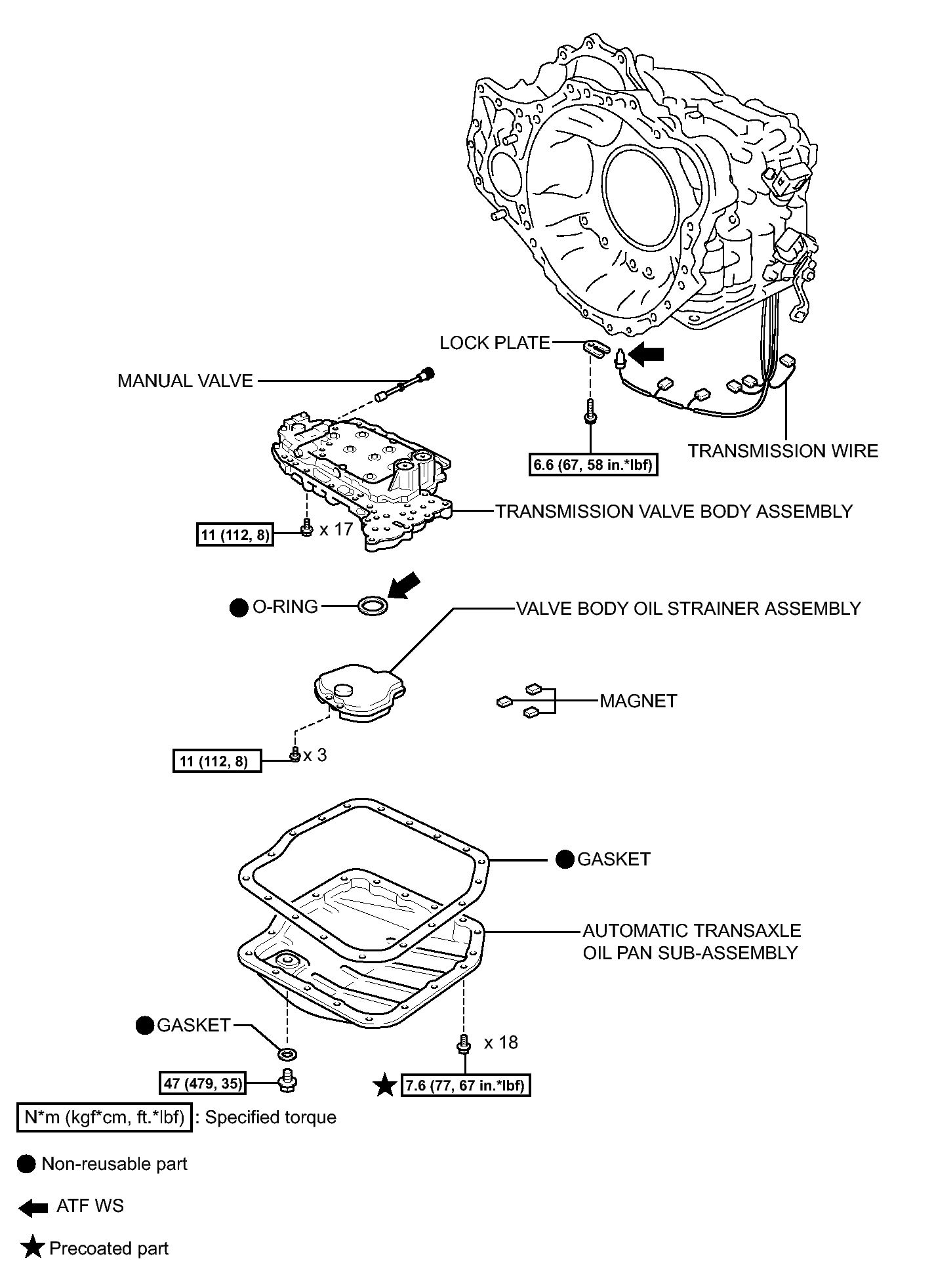

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY244888Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

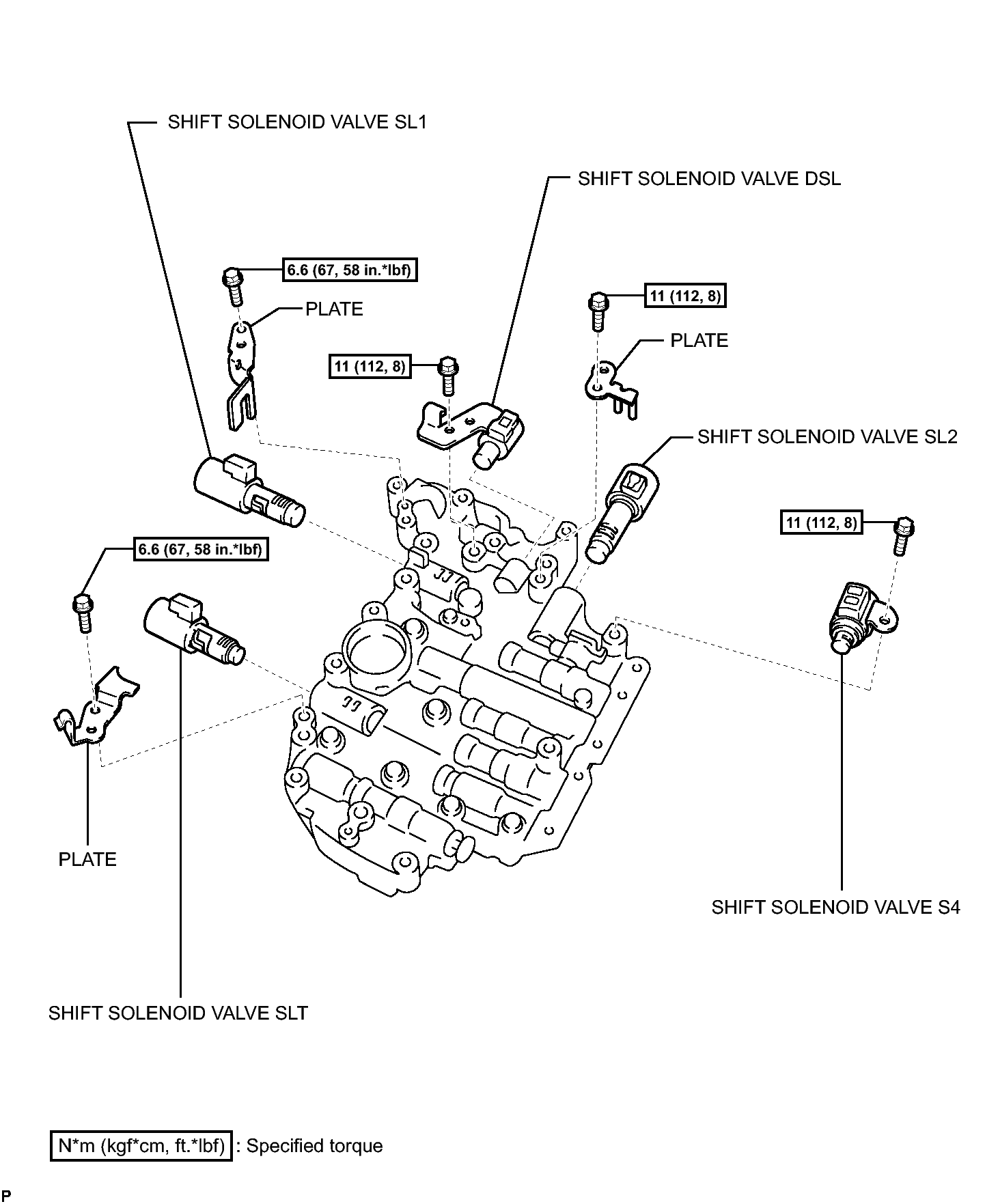

Fig 1: Identifying Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY243712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
