DTC P0335: Crankshaft Position Sensor "A" Circuit; DTC P0339: Crankshaft Position Sensor "A" Circuit Intermittent: Wiring Diagram

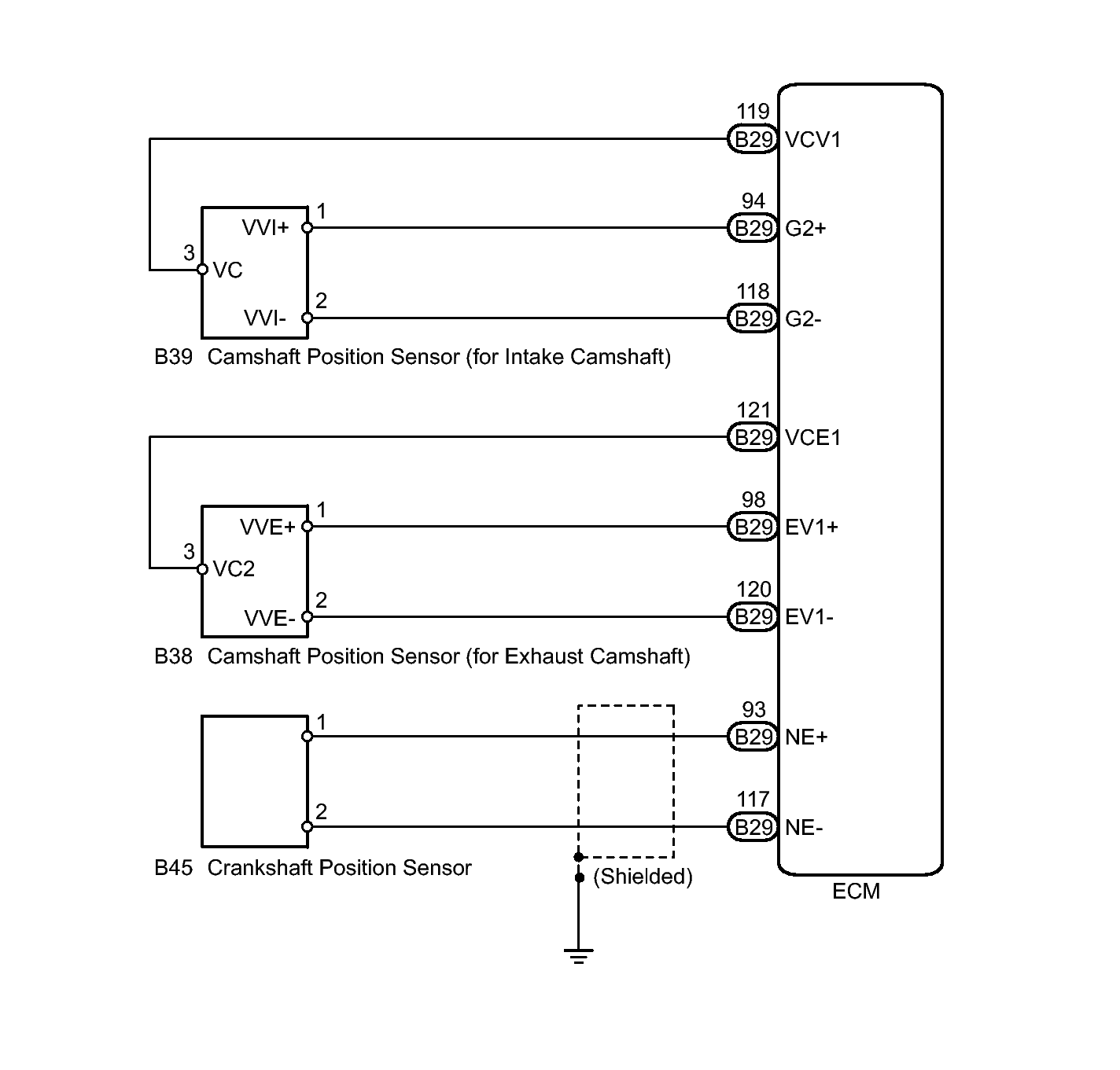

Fig 1: Crankshaft Position Sensor "A" Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
