Washer Level Warning Switch: Components: Illustration

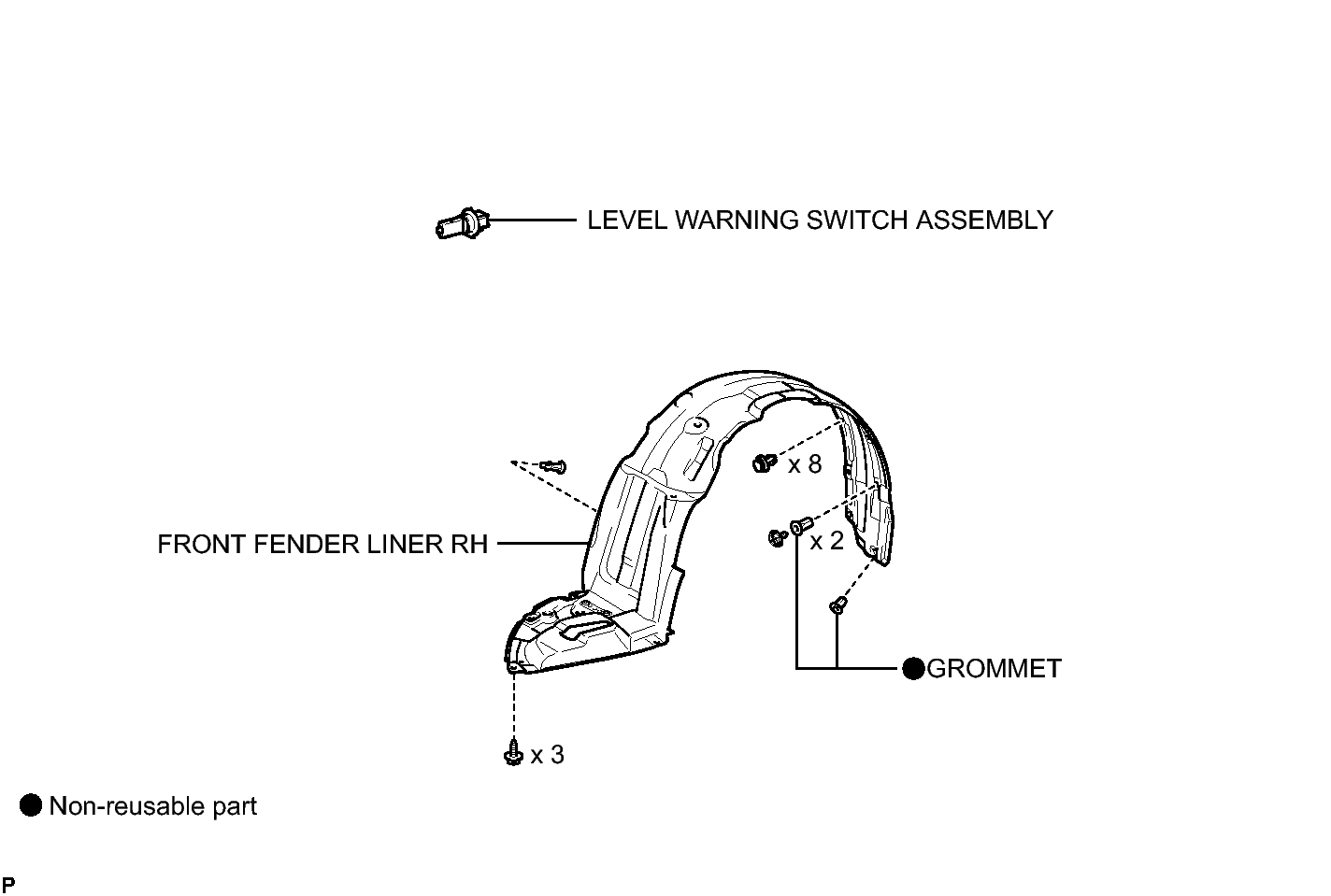

Fig 1: Identifying Washer Level Warning Switch Replacement Components

GTY292240

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
