Front Seat Inner Belt Assembly: Components: Illustration

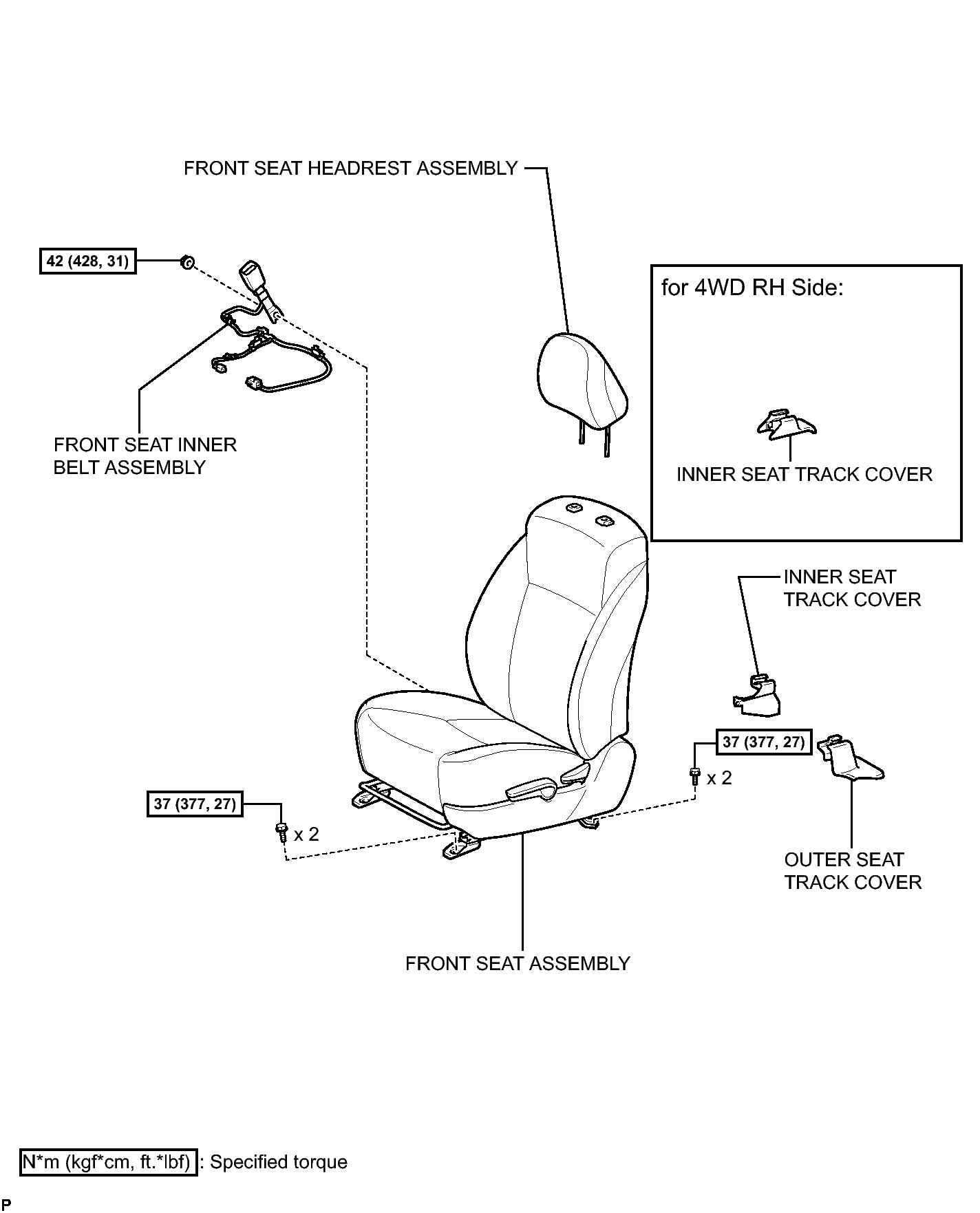

Fig 1: Identifying Front Seat Inner Belt Assembly Replacement Components With Torque Specifications
GTY240980Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
