Skid Control ECU Communication Stop Mode: Wiring Diagram

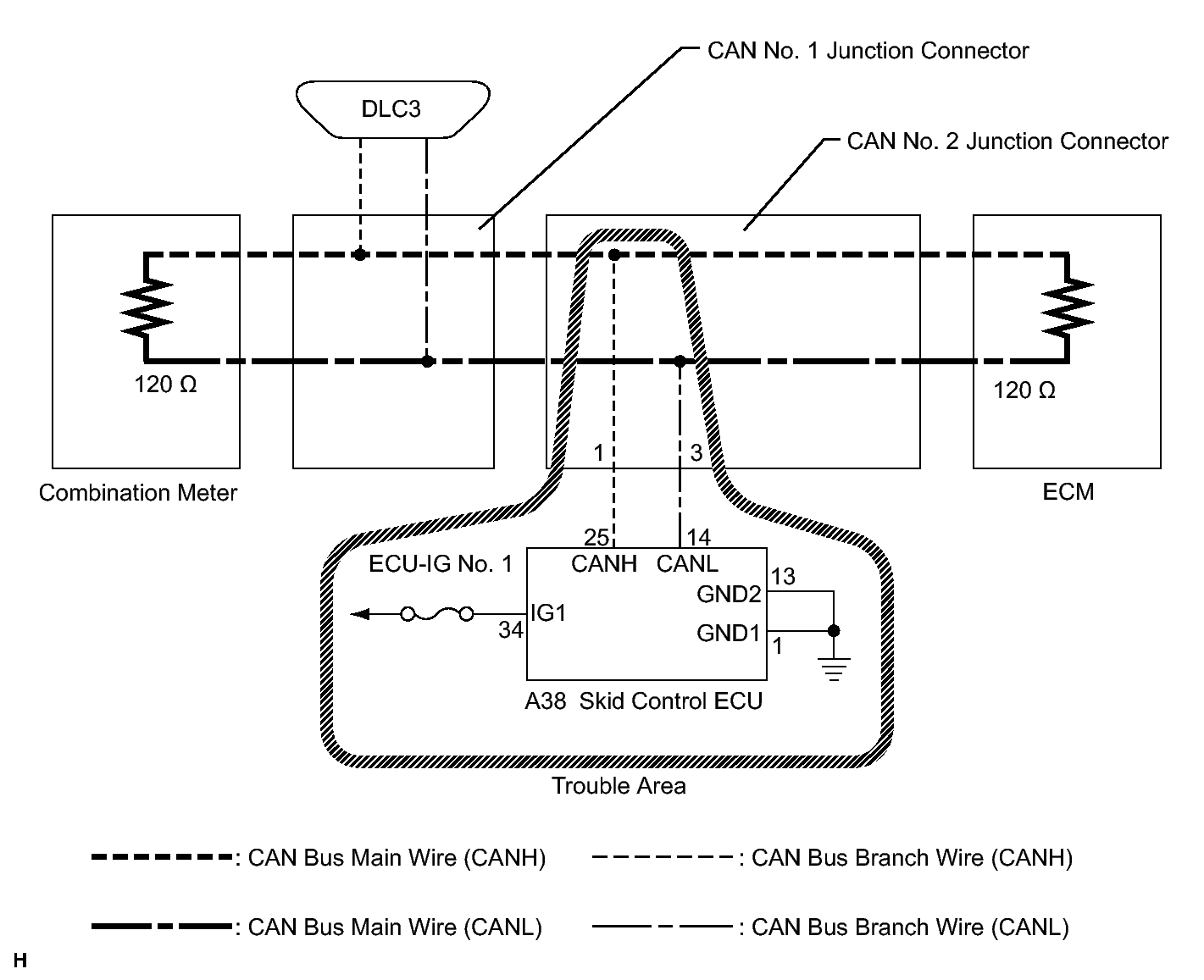

Fig 1: Skid Control ECU Communication Diagram

GTY292459

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
