Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 25
  2. REMOVE ENGINE UNDER COVER ASSEMBLY  . Refer to REMOVAL - Step 7
  3. REMOVE NO. 1 ENGINE UNDER COVER  . Refer to REMOVAL - Step 8
  4. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 4
  5. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 1
  6. REMOVE BATTERY  . Refer to REMOVAL - Step 2
  7. REMOVE NO. 2 AIR CLEANER INLET  . Refer to REMOVAL - Step 3
  8. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 4
  9. REMOVE AIR CLEANER CAP SUB-ASSEMBLY  . Refer to REMOVAL - Step 5
  10. REMOVE AIR CLEANER CASE SUB-ASSEMBLY  . Refer to REMOVAL - Step 6
  11. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

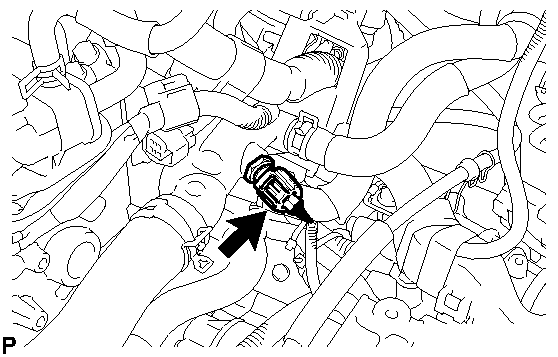

      Fig 1: Identifying Engine Coolant Temperature Sensor Connector
      GTY172163Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor and gasket.
