Rear Wiper and Washer: Notes

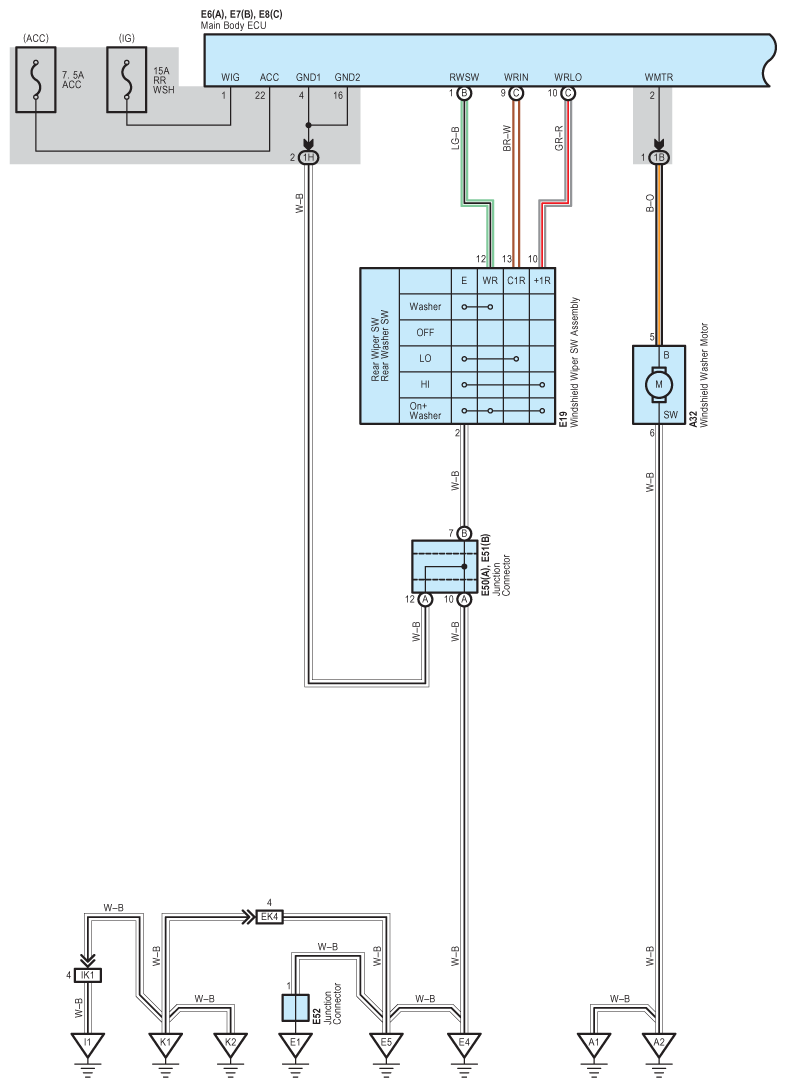

Fig 1: Rear Wiper And Washer Wiring Diagram (1 Of 3)
G09097031Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

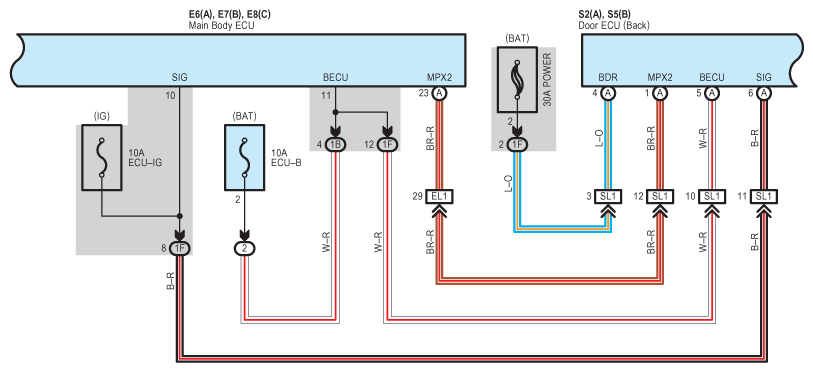

Fig 2: Rear Wiper And Washer Wiring Diagram (2 Of 3)
G09097032Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

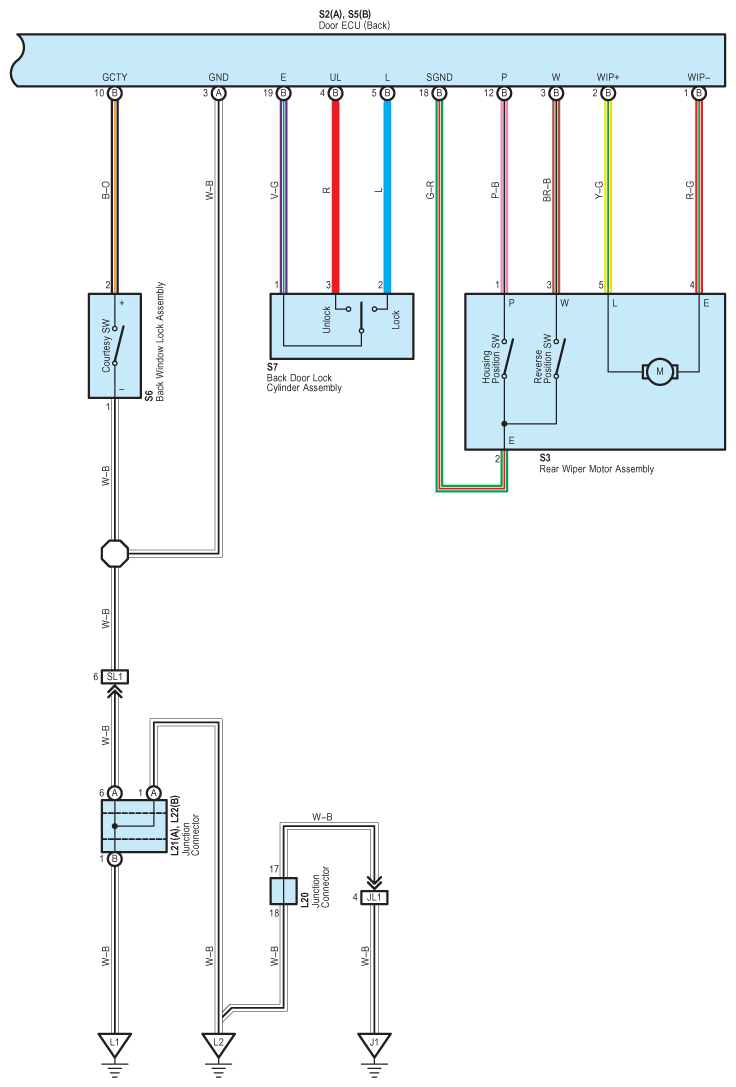

Fig 3: Rear Wiper And Washer Wiring Diagram (3 Of 3)
G09097033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
