Air Injection Driver: Components: Illustration

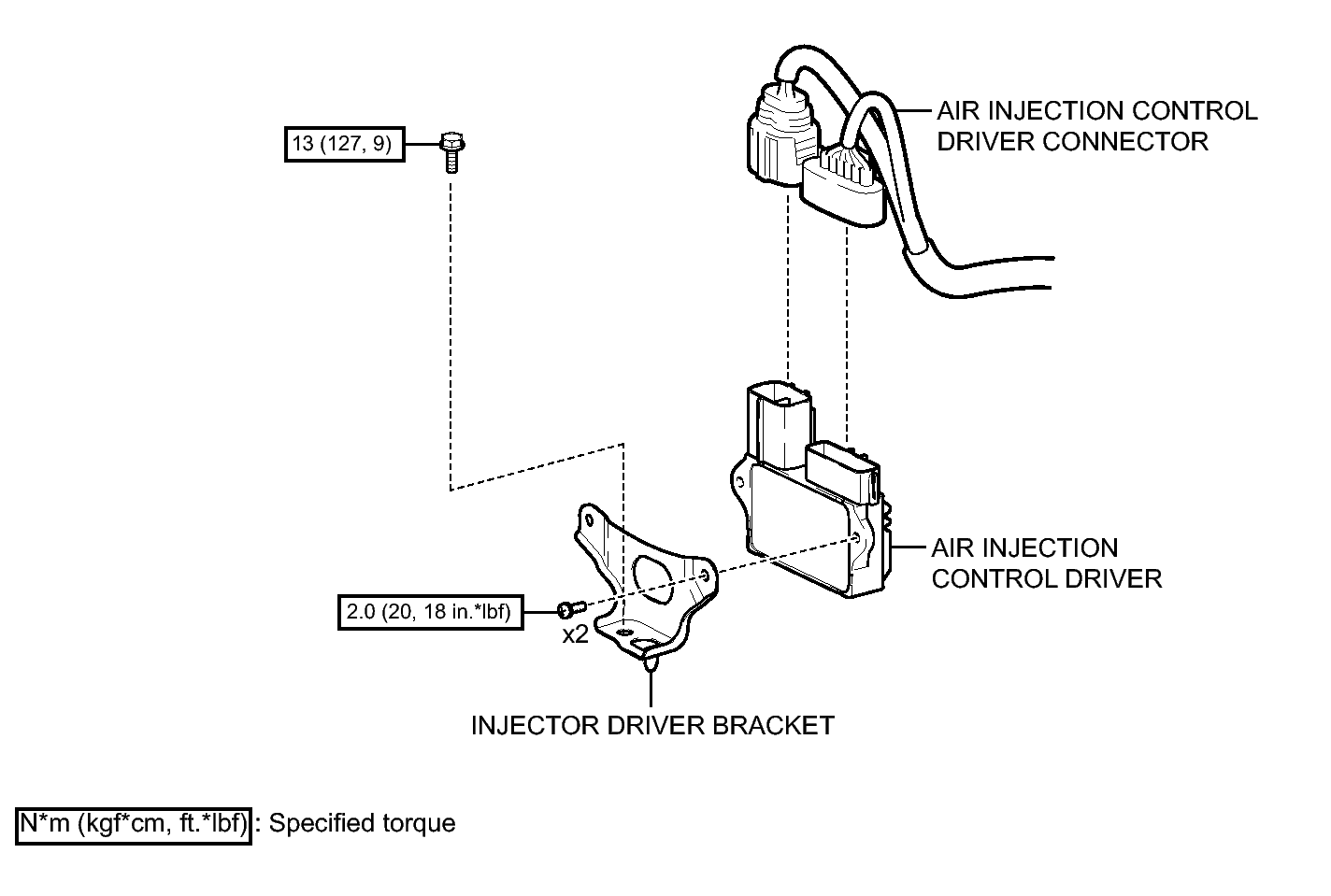

Fig 1: Identifying Air Injection Driver Replacement Components With Torque Specifications

GTY364913

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
