FJ Cruiser 4WD, Automatic T/Case Control
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System (Inspection)
>>
Starting System
>>
System Diagram
>>
System Diagram
System Diagram

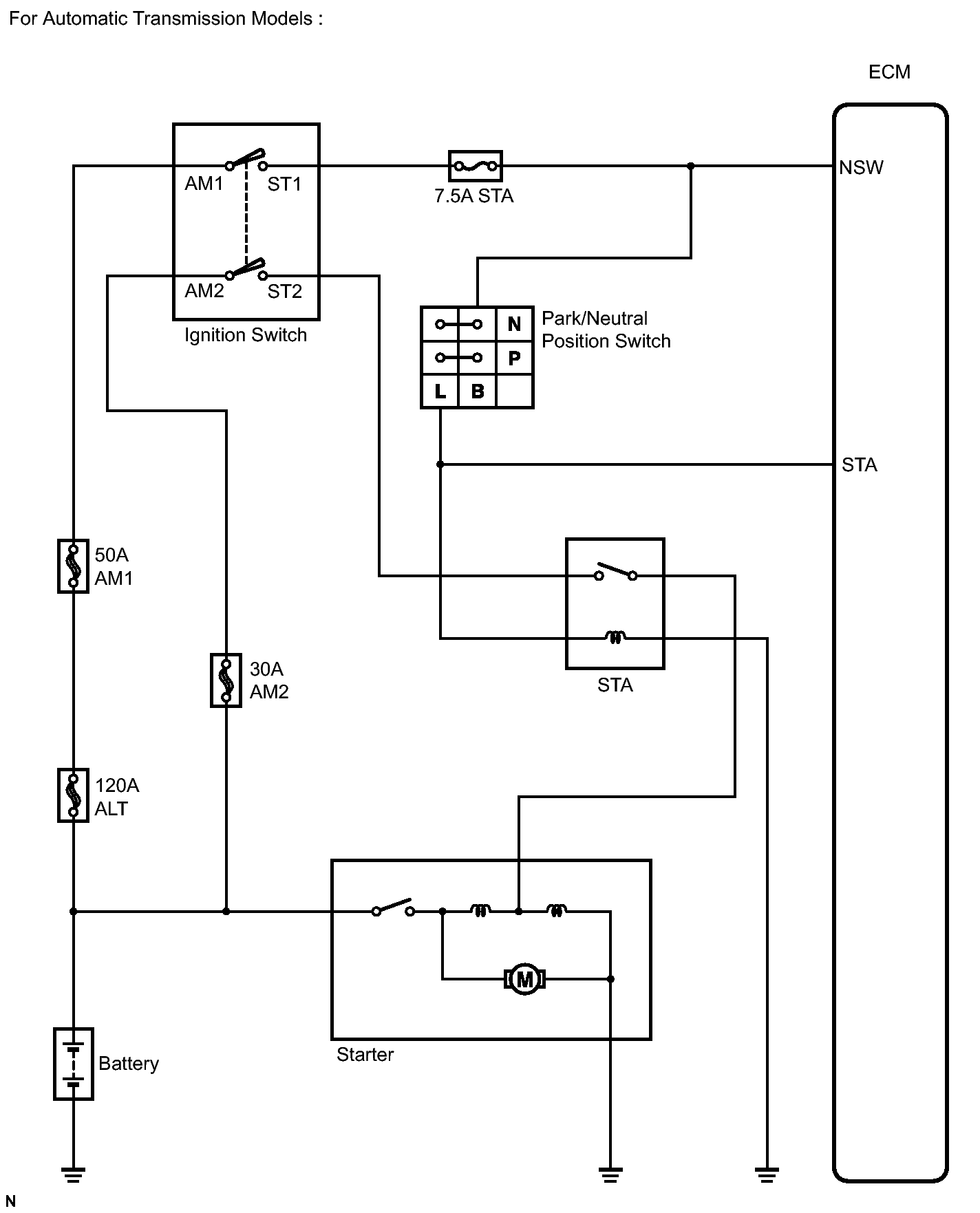

Fig 1: Identifying Starting System Diagram (For Automatic Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

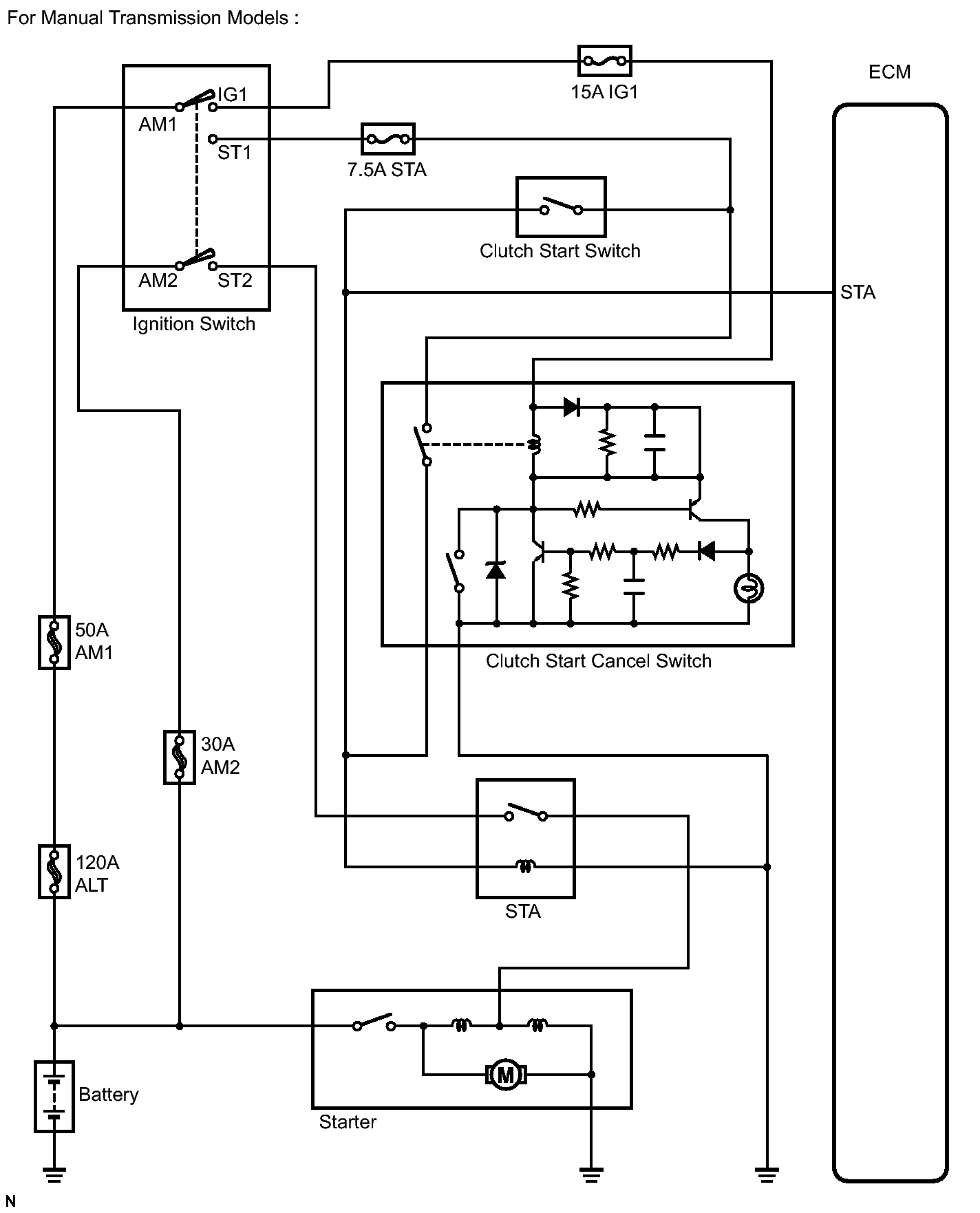

Fig 2: Identifying Starting System Diagram (For Manual Transmission Models)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
