Stop Light: Notes

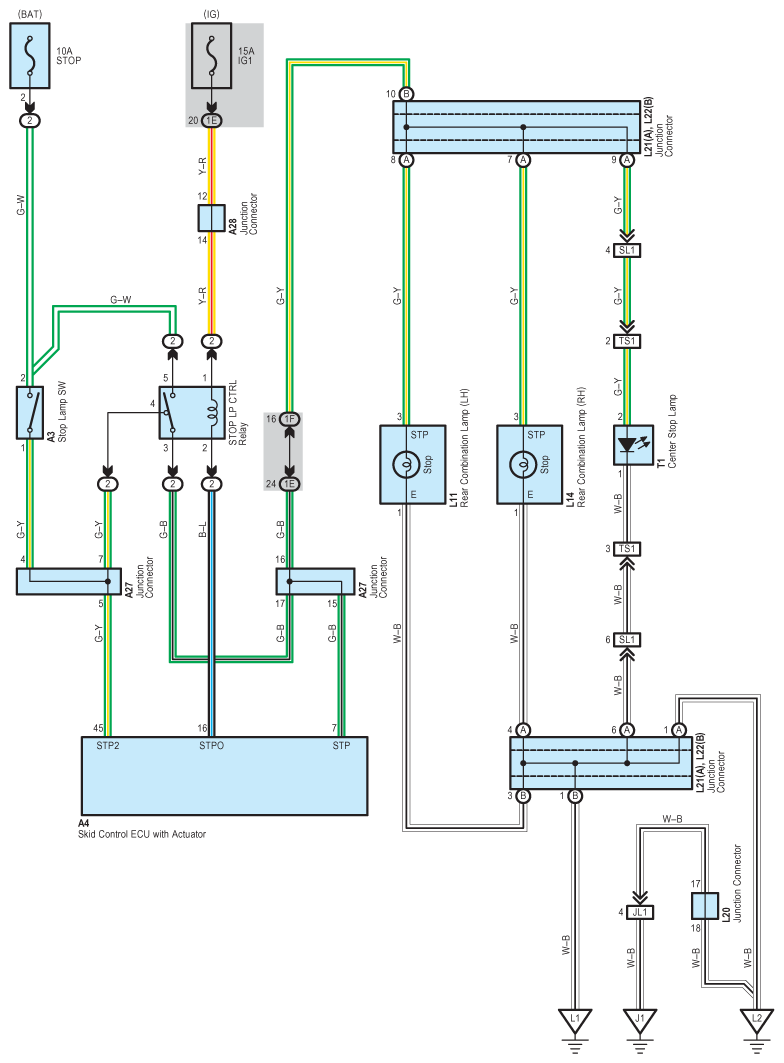

Fig 1: Stop Light Wiring Diagram

G09097022

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
