Shift Lock: Notes

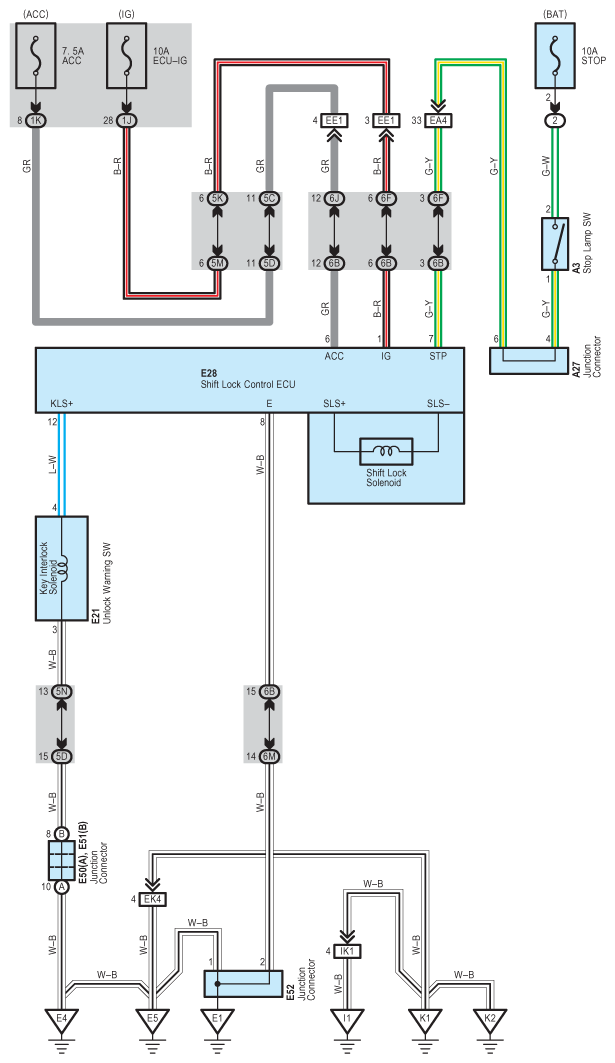

Fig 1: Shift Lock Wiring Diagram

G09097085

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
