Key Reminder: Notes

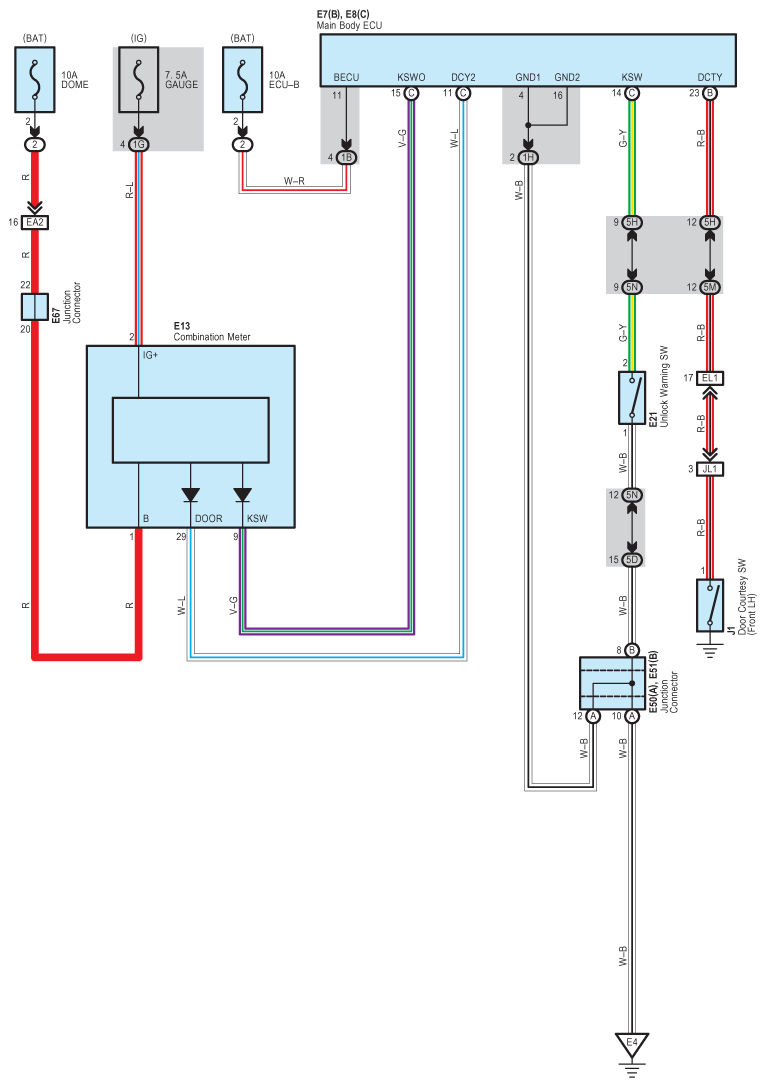

Fig 1: Key Reminder Wiring Diagram

G09097024

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
