OEM System Circuits: Clock: Notes

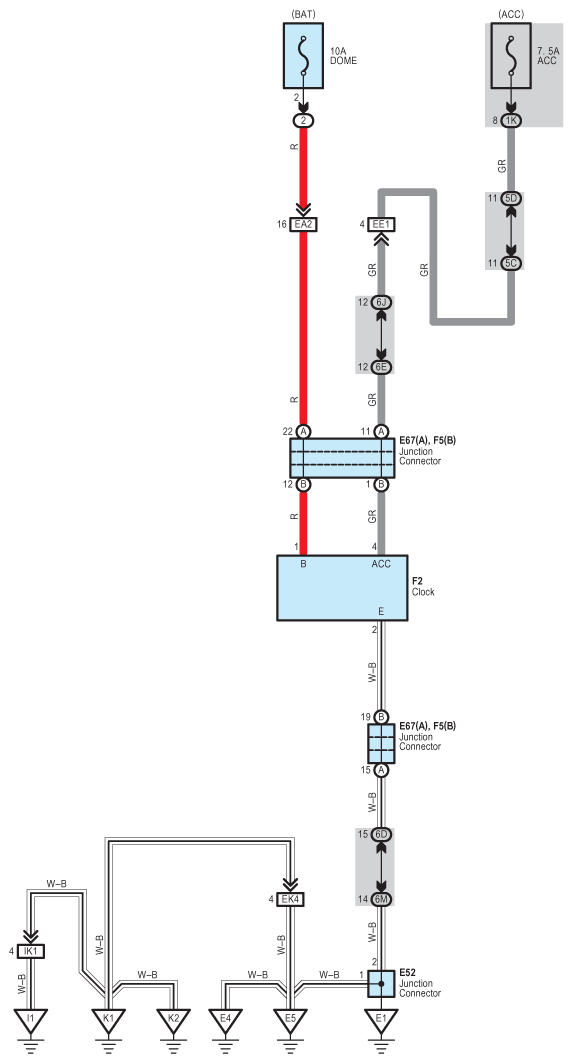

Fig 1: Clockwise Wiring Diagram

G09097094

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
