On-Vehicle Inspection

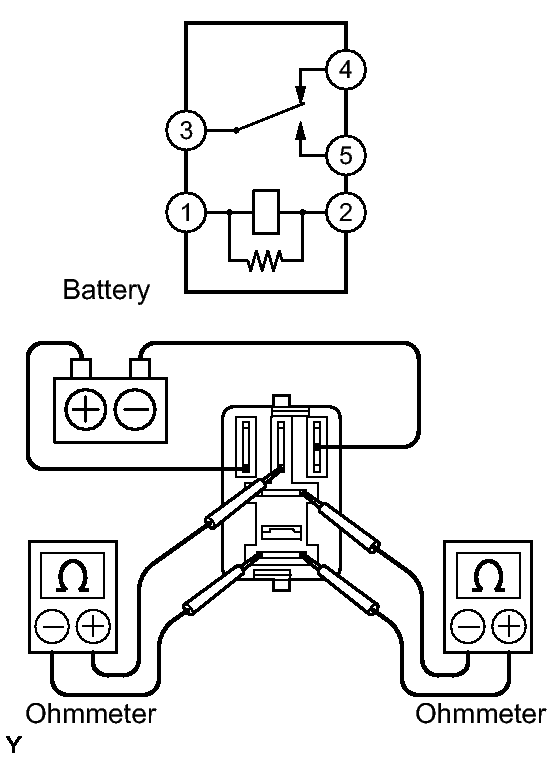

- INSPECT DEFOGGER RELAY
- Check the resistance.
- Using an ohmmeter, measure the resistance between the terminals.
Standard Resistance
Tester Connection Specified Condition 3 - 4 Below 1 Ω 3 - 4 10 kΩ or higher
(Battery voltage applied to terminals 1 and 2)3 - 5 10 kΩ or higher 3 - 5 Below 1 Ω
(Battery voltage applied to terminals 1 and 2)If the result is not as specified, replace the defogger relay.
- Using an ohmmeter, measure the resistance between the terminals.
- Check the resistance.
