DTC B2782: Power Source Control ECU Malfunction: Wiring Diagram

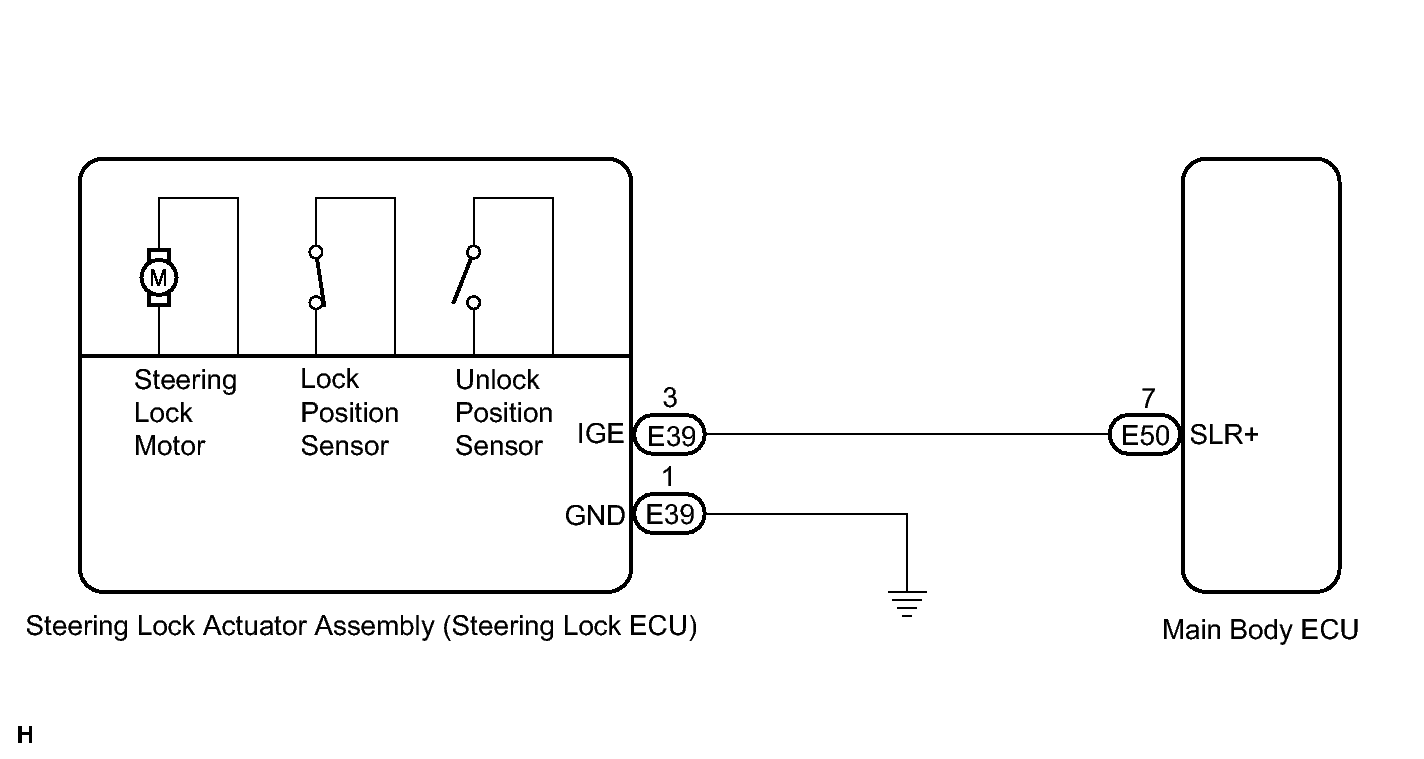

Fig 1: Steering Lock ECU Circuit - Wiring Diagram

GTY172145

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
