Tire Pressure Warning System (Except TMC Made): Notes

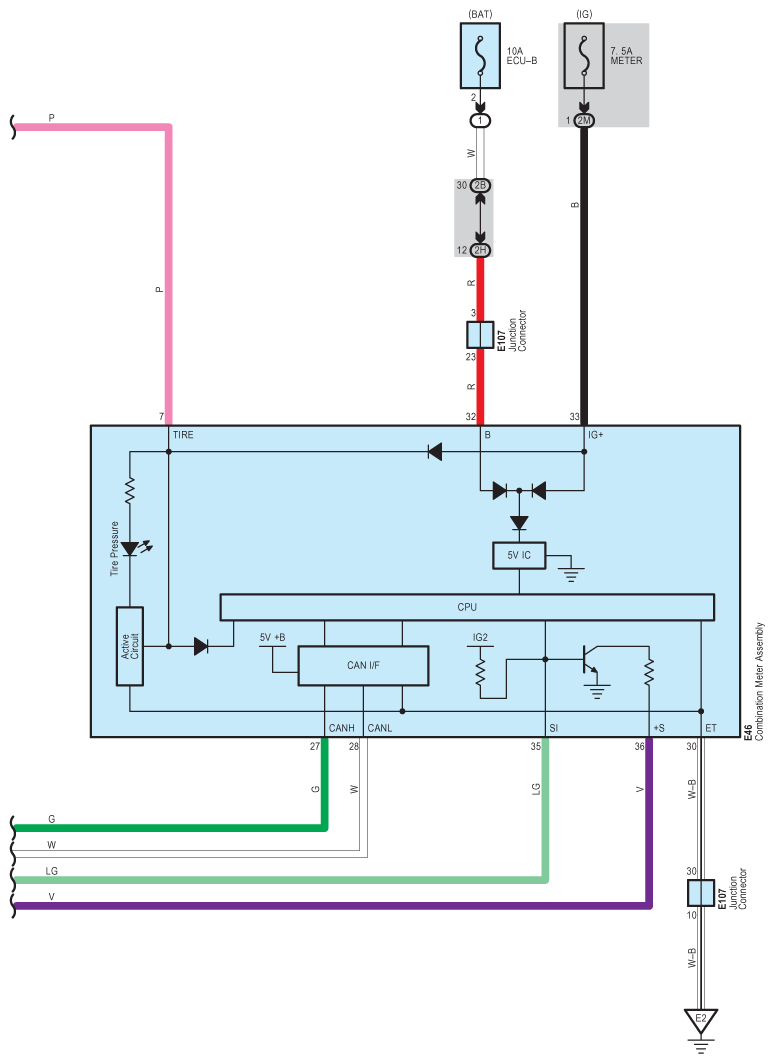

Fig 1: Tire Pressure Warning System Wiring Diagram (Except TMC Made; 1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

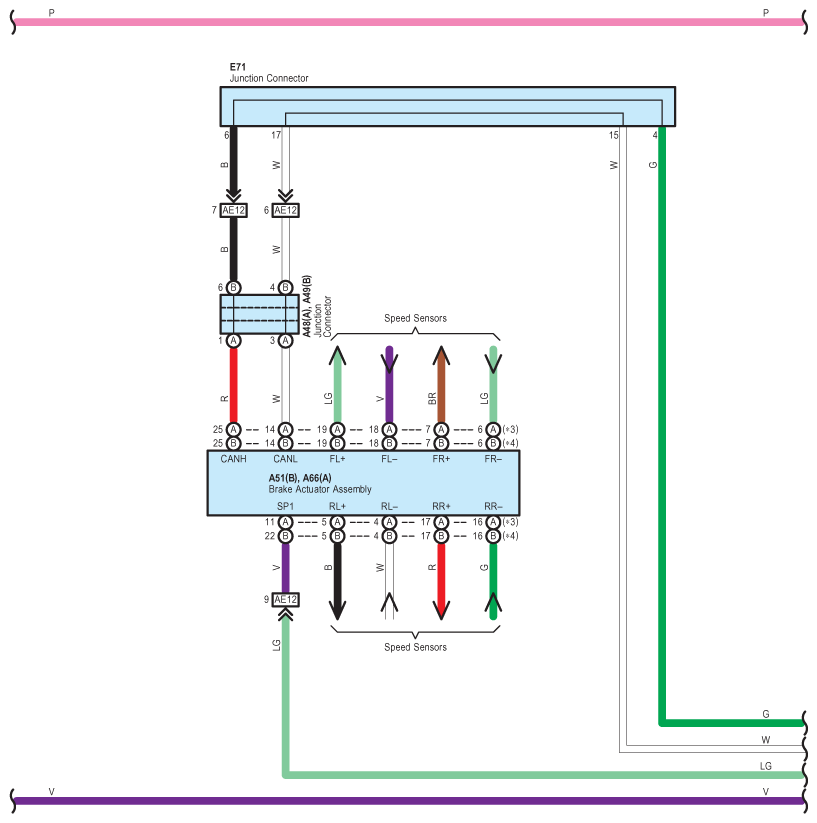

Fig 2: Tire Pressure Warning System Wiring Diagram (Except TMC Made; 2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

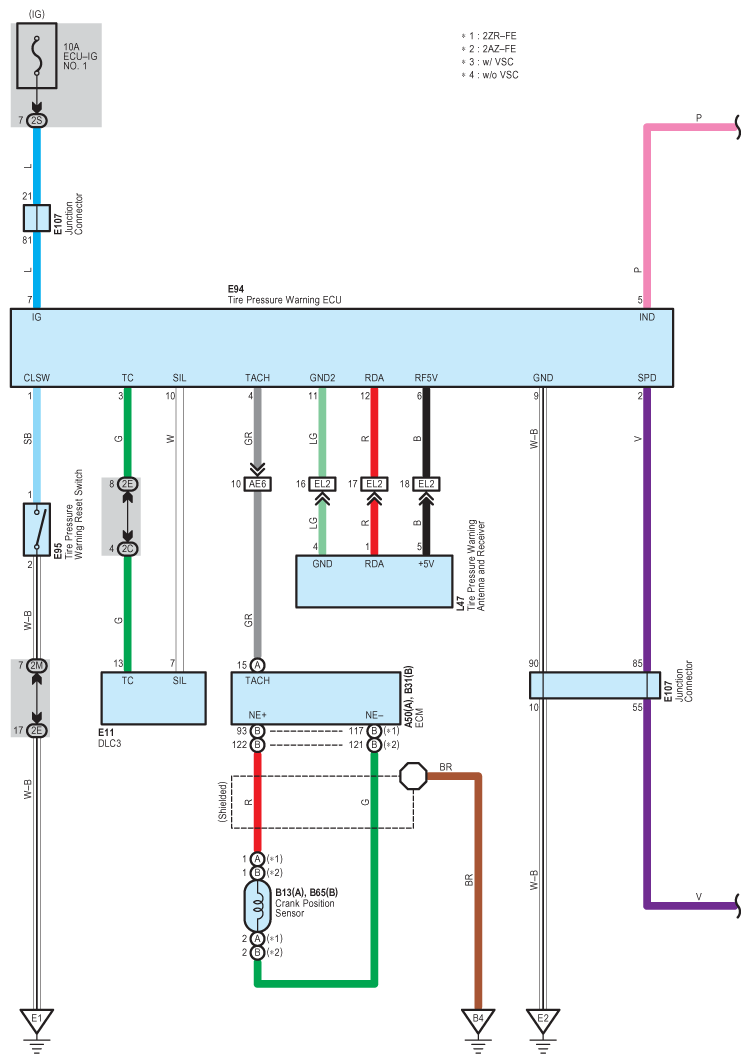

Fig 3: Tire Pressure Warning System Wiring Diagram (Except TMC Made; 3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
