Sliding Roof (Except TMC Made): Notes

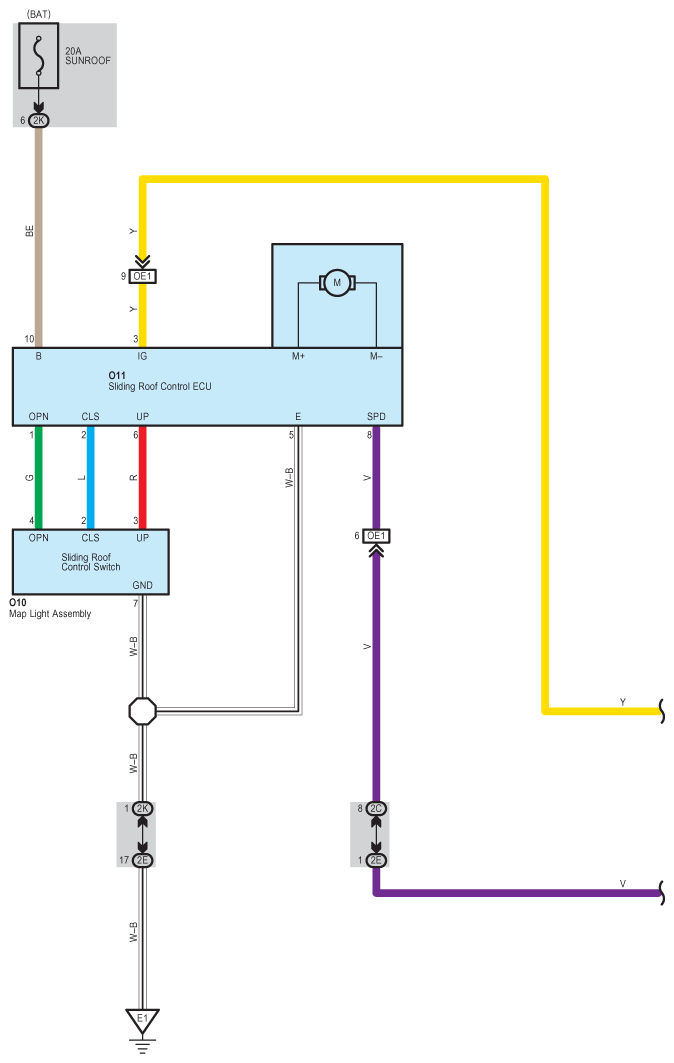

Fig 1: Sliding Roof System Wiring Diagram (Except TMC Made; 1 Of 4)
G09106653Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

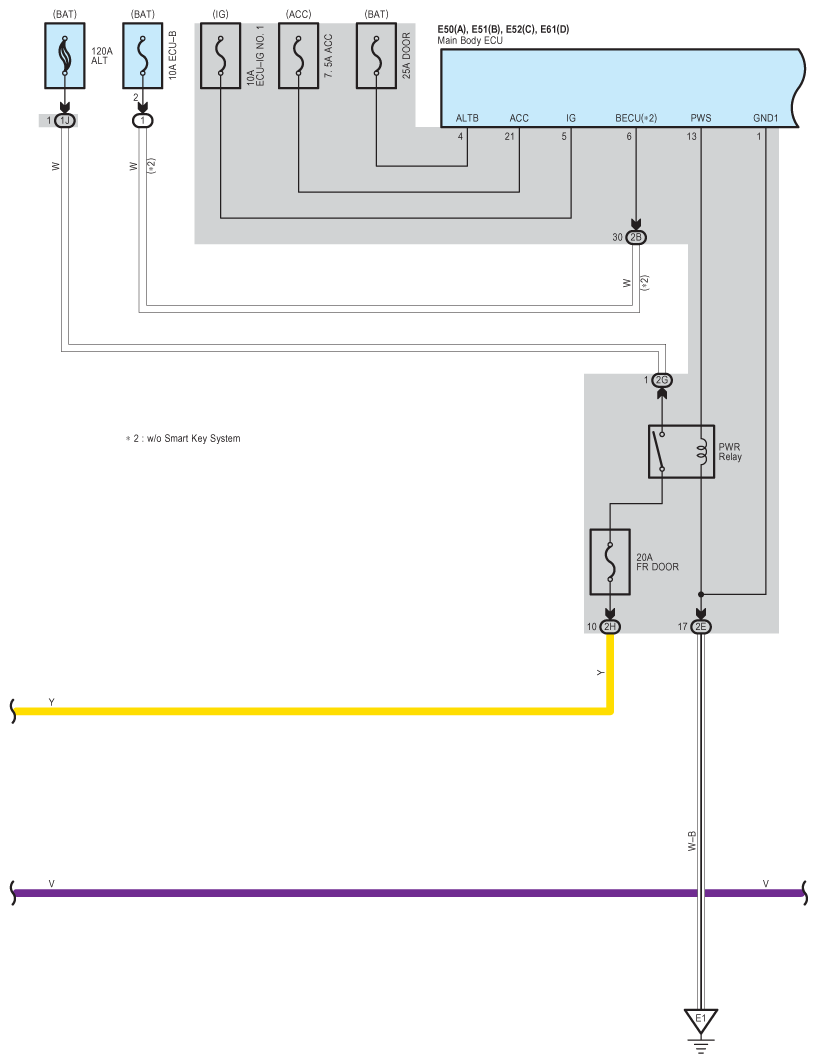

Fig 2: Sliding Roof System Wiring Diagram (Except TMC Made; 2 Of 4)
G09106654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

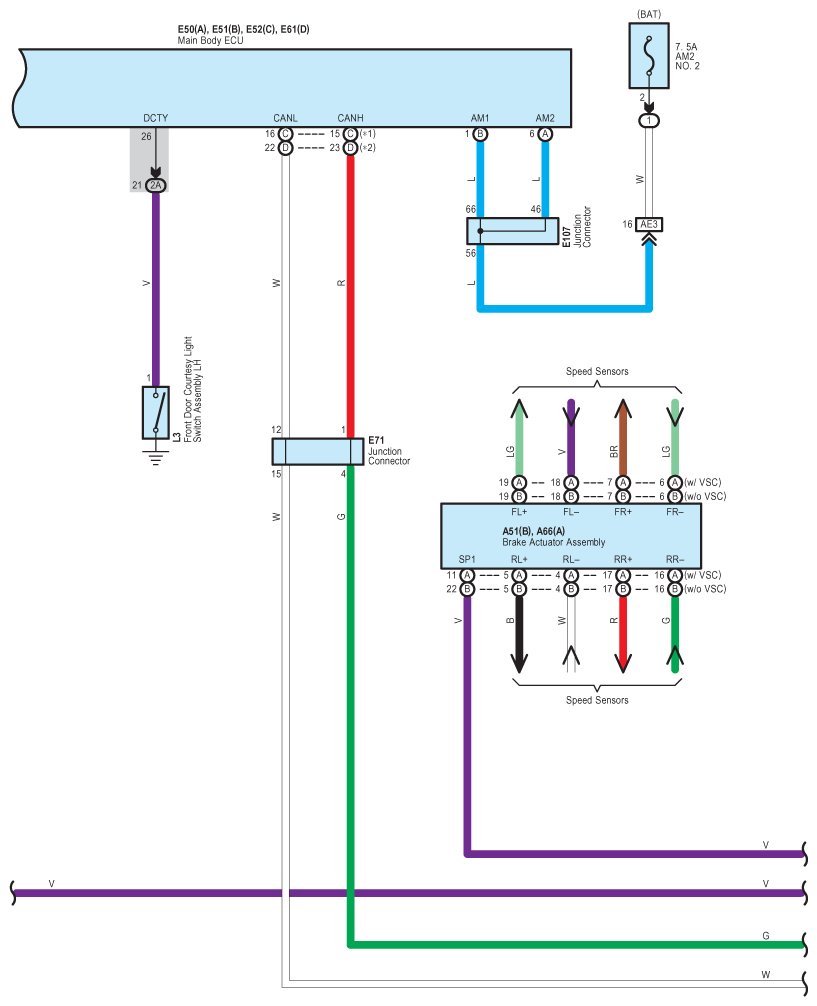

Fig 3: Sliding Roof System Wiring Diagram (Except TMC Made; 3 Of 4)
G09106655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

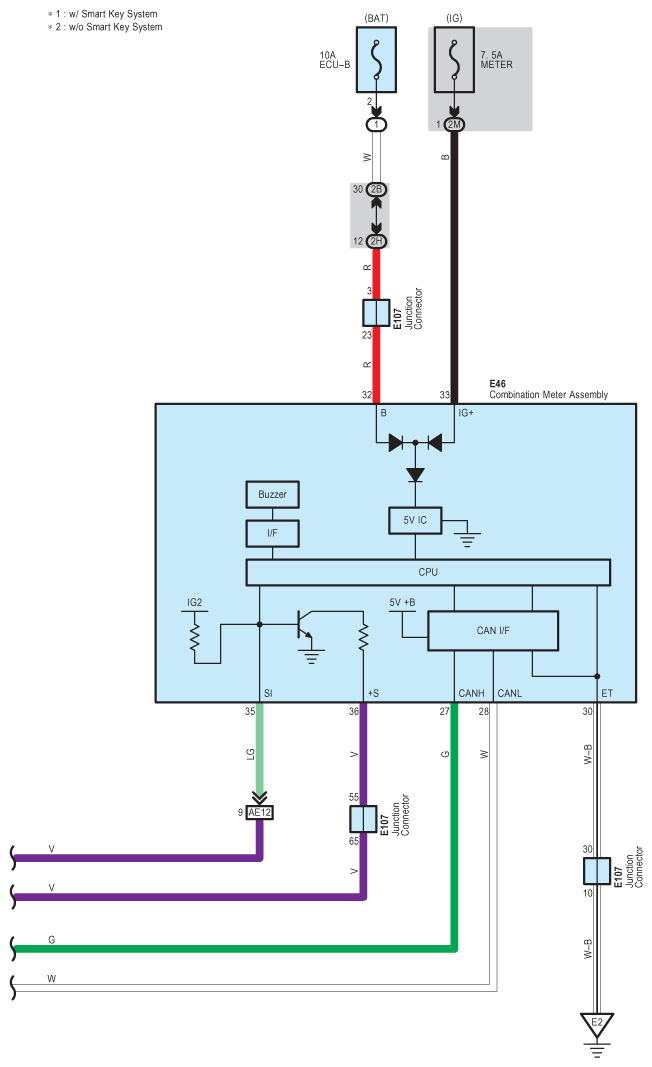

Fig 4: Sliding Roof System Wiring Diagram (Except TMC Made; 4 Of 4)
G09106656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
